25
Inspect and tighten all parts of the exercise bike regu-
larly. Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild soap. IMPORTANT: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
CONSOLE TROUBLESHOOTING
If lines appear in the console display, see step 4 on
page 24 and adjust the contrast level of the display.
If the console does not display your heart rate when
you use the handgrip heart rate monitor, see step 5 on
page 18.
If the console does not display your heart rate
when you use the chest heart rate monitor, see
TROUBLESHOOTING on page 12.

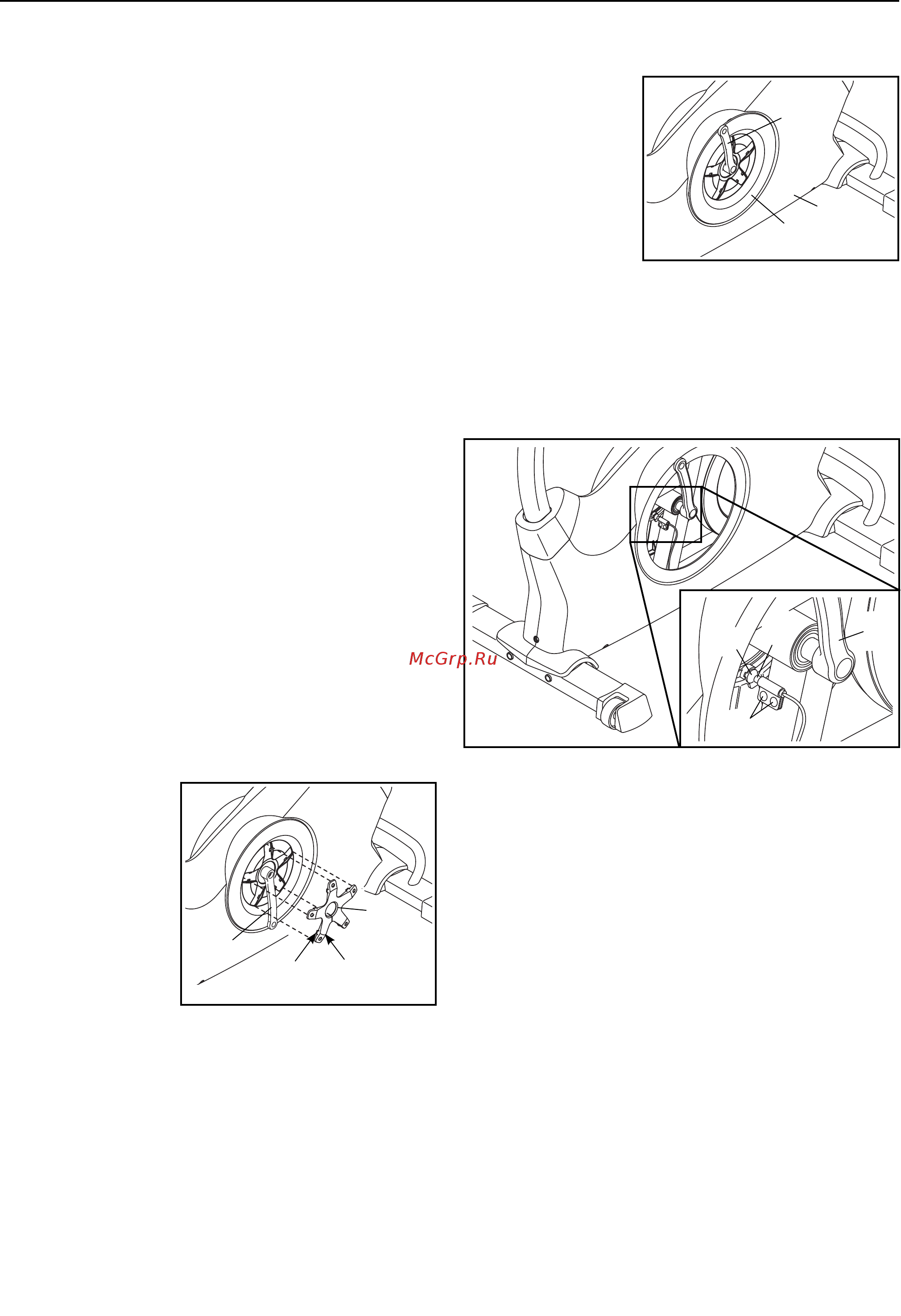

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, you must first remove the left pedal, the left
disc cover, and the left pedal disc (see the instructions
below).
Using an adjustable wrench, turn the left pedal clock-
wise and remove it.
Rotate the Left
Crank Arm (20) to
a vertical position
with the end of the
Left Crank Arm
pointing down-
ward as shown.
Using a flat screwdriver, release the tabs on each point
of the left Disc Cover (18). Carefully work the left Disc
Cover over the Left Crank Arm (20) and remove the left
Disc Cover.
Next, rotate the
Left Crank Arm
(20) to a vertical
position with the
end of the Left
Crank Arm point-
ing upward.
Rotate the left Pedal Disc (17) clockwise to release it
from the Left Shield (11). Then, work the left Pedal Disc
upward and remove it from the Left Crank Arm (20).
Locate the Reed Switch (57). Loosen, but do not
remove, the two M4 x 13mm Flange Screws (63).
Next, rotate the Left Crank Arm (20) until a Magnet (55)
is aligned with the Reed Switch (57). Slide the Reed
Switch slightly toward or away from the Magnet. Then,
retighten the M4 x 13mm Flange Screws (63).
Rotate the Left Crank Arm (20) for a moment. Repeat
these actions until the console displays correct
feedback.
When the reed switch is correctly adjusted, reattach
the left pedal disc, the left disc cover, and the left
pedal.
MAINTENANCE AND TROUBLESHOOTING
20
18
Tab
Tab
20
17
11
57
63
55
20
