LifeGear 76200 [7/12] Hardware

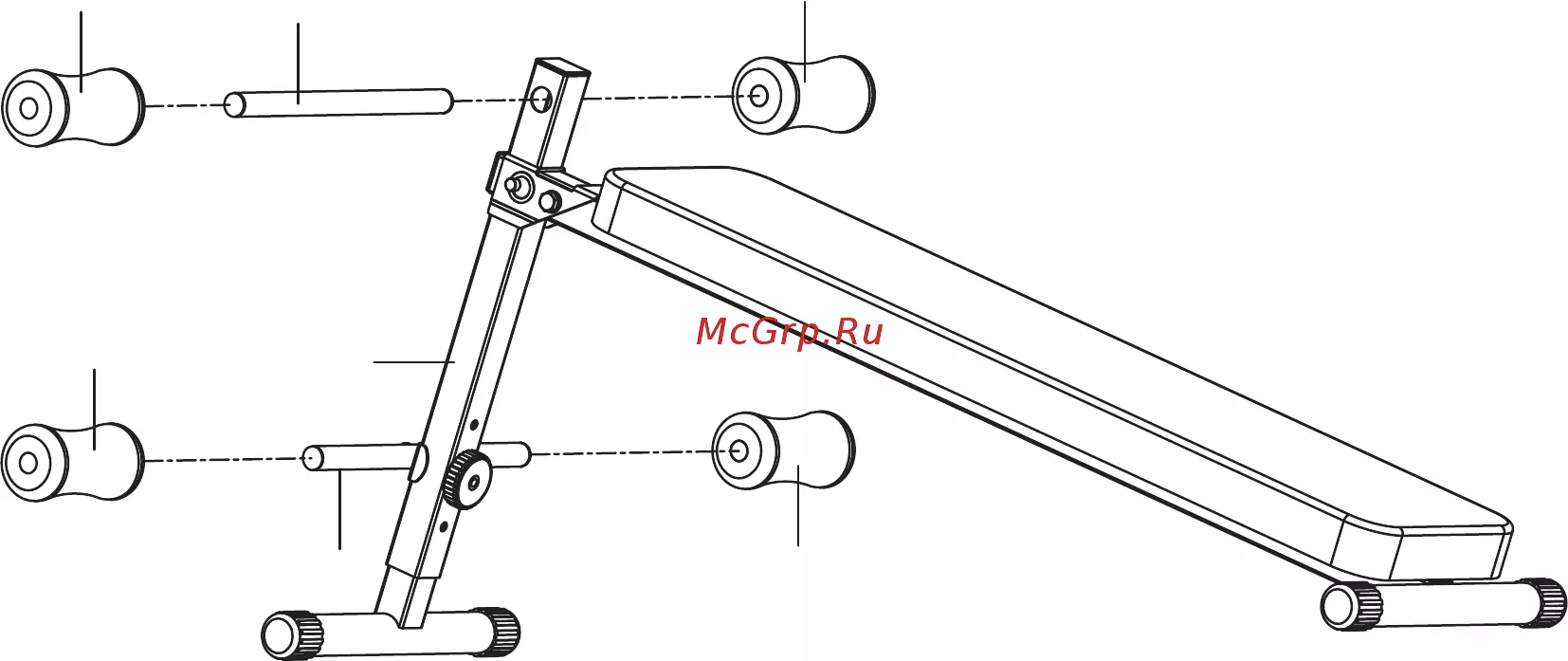

Step 2

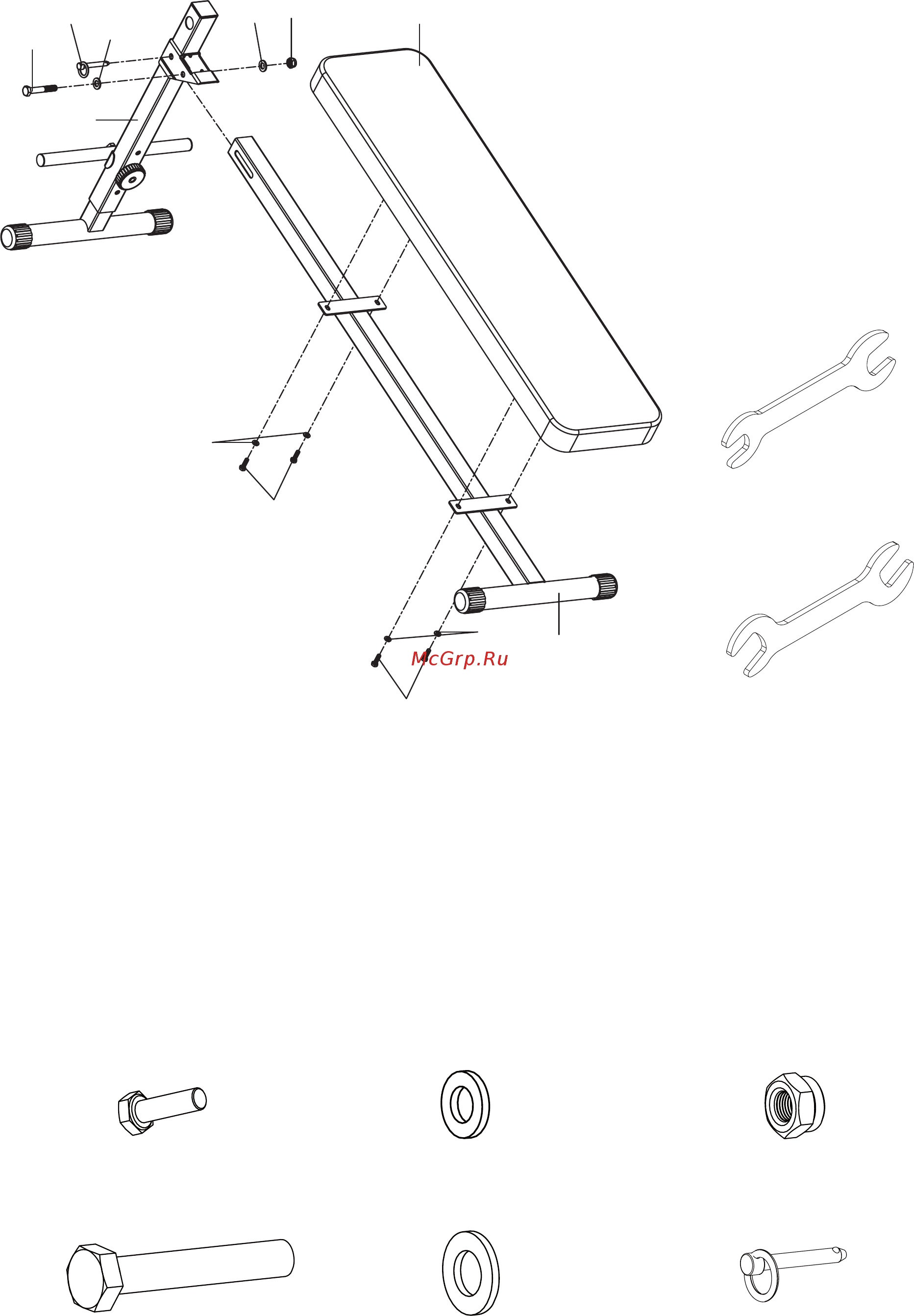

Attach the Back Pad (5) onto the Main Frame (2) with four M6x16 Hex Bolts (3) and four Ø6

Washers (4). Tighten bolts with the Wrench provided.

Slide the Main Frame (2) into the Foot Support Frame (11) and align one hole on the Main

Frame (2) with one hole on the Foot Support Frame (11). Secure the Main Frame (2) in

place using one M10 Nylon Lock Nut (10), one M10x60 Hex Bolt (15), and two Ø10

Washers (16). Tighten bolt and nut with the two Wrenches provided.

Finally, insert the Ø8x50 Pin (14) into the holes on the Foot Support Frame (11) and Main

Frame (2) to lock into position.

Hardware:

1 Wrench (14-10)

2 Wrenches (14-17)

Tool:

4 Hex Bolts (M6x16) 4 Washers (Ø6) 1 Nylon Lock Nut (M10)

1 Hex Bolt

(

M10x60

)

2 Washers (Ø10)

1 Pin (Ø8x50)
