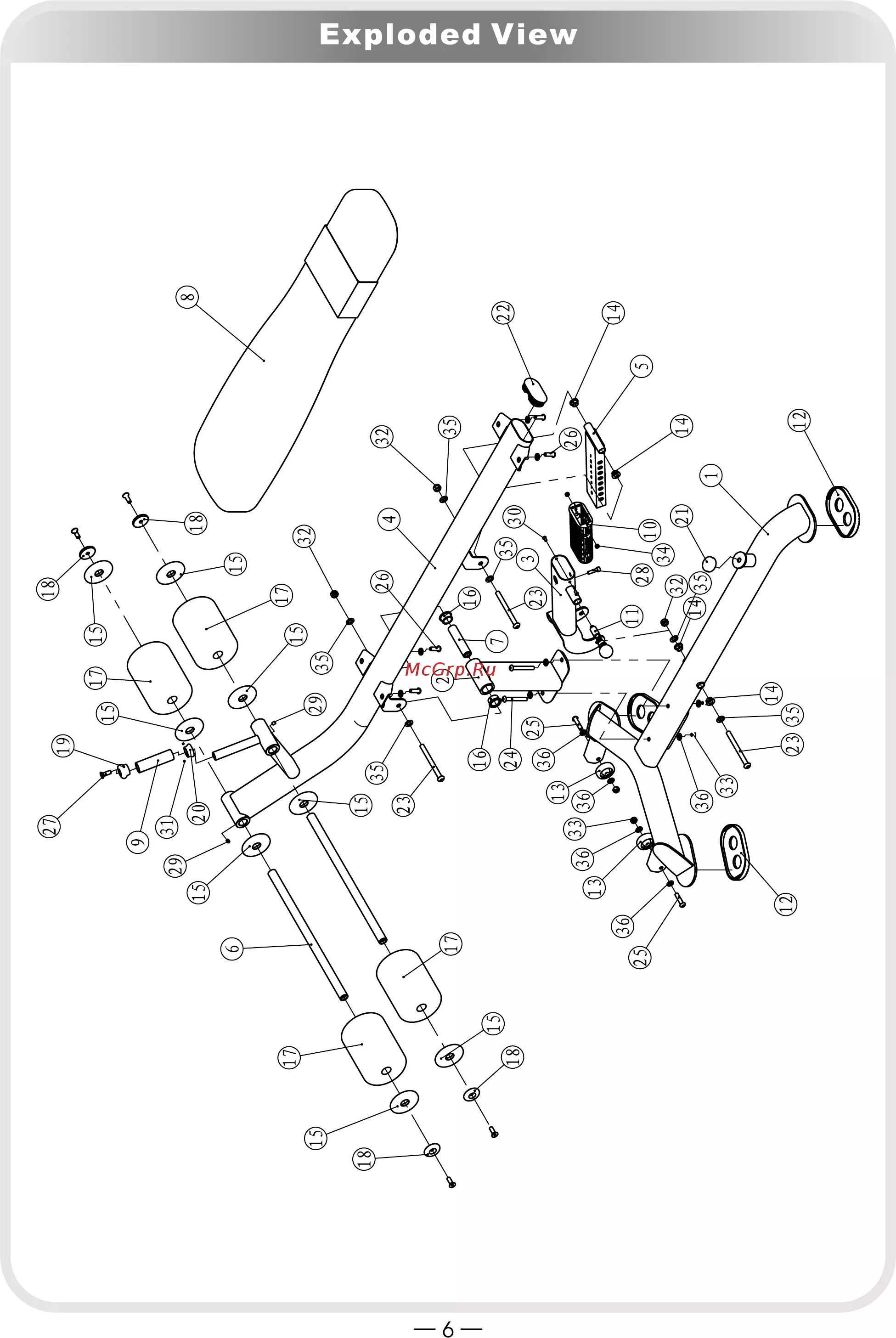

Item No.
Description Qty
Item No.
Description Qty
1 Base Bracket 1 20 Aluminium Grip Ring 1
2 Support Bracket 1 21 Rubber Bumper 1
3 Adjustable Bracket (outer) 1 22 Plug 1
4 Back Pad Bracket 1 23
Button Head Cap Screw M12*140
3
5 Adjustable Bracket (inner) 1 24
Button Head Cap Screw M12*80
2
6 Roller Bar 2 25
Button Head Cap Screw M10*45
2
7 Shaft 1 26
Button Head Cap Screw M10*30
4
8 Back Pad 1 27 Flat Head Cap Screw M10*30 5
9 Grip 1 28 Socket Head Cap ScrewM8*30 1
10
Plastic Tube GuideRT50*100-□30*70
2 29 Socket Set Screw M8*10 2
11 Spring Pin 1 30 Button Head Cap Screw M6*12 2
12 Foot Pad 3 31 Socket Set Screw10-32*3.2 2
13 Wheel 2 32 Nylon Lock Nut M12 5
14 Bushing 4 33 Nylon Lock Nut M10 2
15 Big Washer 8 34 Hex Nut M6 2
16 Bushing 2 35 Flat Washer Φ13*Φ24*1.5 10
17 Roller Pad 4 36 Flat Washer Φ11*Φ20*2 8
18 End Cap 4 37 Hex Key S=6 1
19 Aluminium Grip Cap 1 38 Hex Key S=4 1
