2
GB
! Before operating your new appliance please read
this instruction manual carefully. It contains
important information for safe use, installation and
care of the appliance.
! Please keep these operating instructions for future
reference. Pass them on to possible new owners of
the appliance.

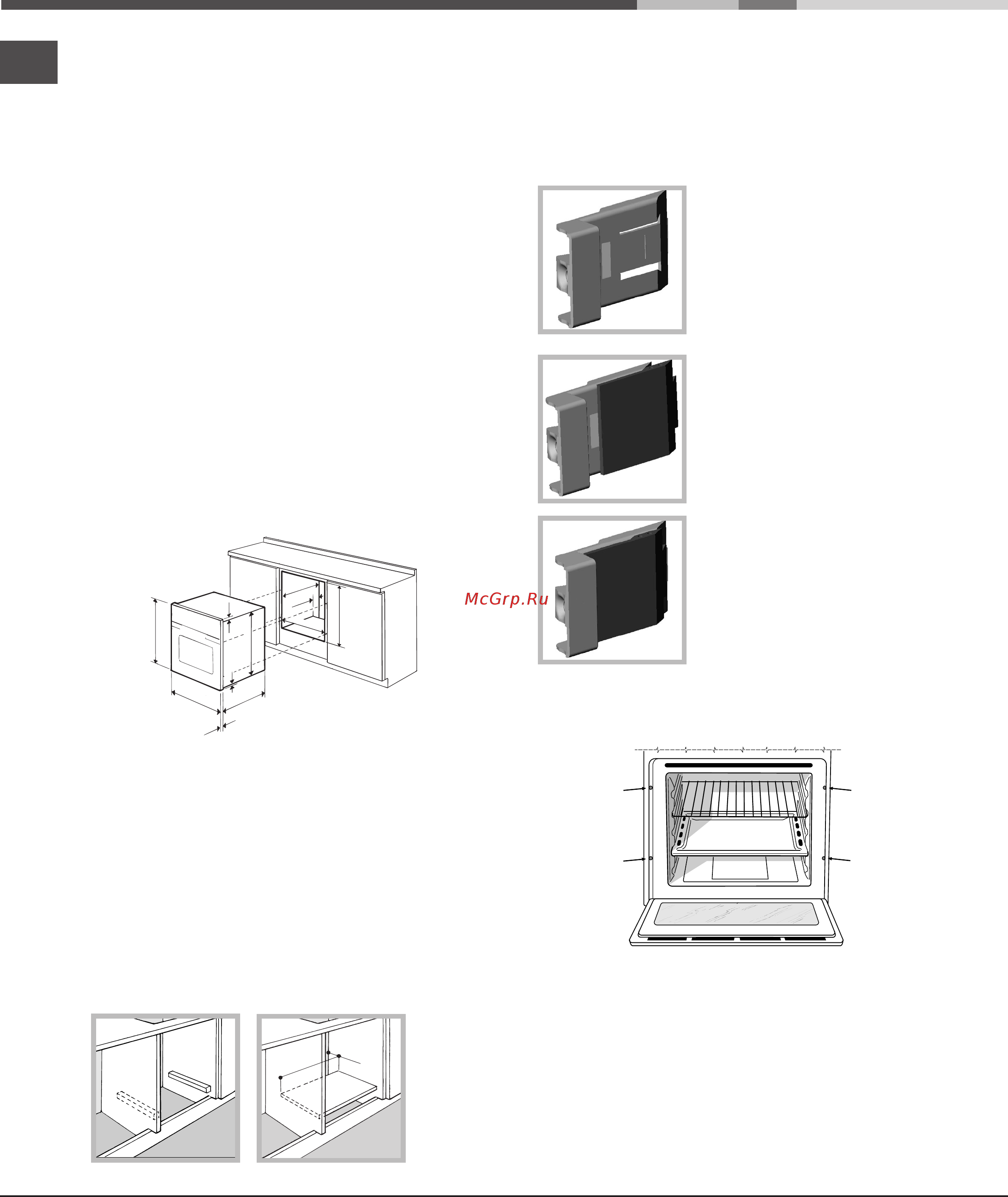

Fitting the appliance
Use a suitable kitchen unit to ensure that the
appliance functions properly.
• The panels adjacent to the oven must be made
from heat-resistant material.
• Cabinets with a veneer exterior must be
assembled with a glue that can withstand
temperatures of up to 100°C.
• To install the oven under the counter (
see
diagram
) or in a kitchen unit, the cabinet must
have the following dimensions:
! The appliance must not come into contact with
electrical parts once it has been installed.
The figures indicated on the data plate have been
calculated for this type of installation.
Ventilation
To ensure adequate ventilation, the back panel of
the cabinet must be removed. It is advisable to
install the oven so that it rests on two strips of wood,
or on a completely flat surface with an opening of at
least 45 x 560 mm (
see diagrams
).
Centring and fastening
Position the 4 tabs on the side of the oven according
to the 4 holes on the outer frame. Adjust the tabs
according to the thickness of the cabinet side panel,
as shown below:
20 mm thick: take off the
removable part of the tab (
see
diagram
).
18 mm thick: use the first
groove, which has already
been set in the factory (
see
diagram
).
16 mm thick: use the second
groove (
see diagram
).
Secure the appliance to the cabinet by opening the
oven door and fastening 4 screws into the 4 holes of
the outer frame.
! All parts ensuring the safe operation of the
appliance must not be removable without the aid of
a tool.
Installation
595 mm.
595 mm.
24 mm.
545 mm.
5 mm.
567 mm.
23 mm.
593 mm.
45 mm.
558 mm.
547 mm. min.
560 mm.
45 mm.
