Установите ручку переключения функций
духовки в нужное положение.
-
Установите ручку управления термостатом на
нужную температуру.
Чтобы выключить духовку
-
Поверните ручку переключения функций в
положение
0
.
-
Поверните ручку управления термостатом в
положение
0
.
Технические характеристики
Нагревательный элемент Мощность (Вт)
Задняя левая конфорка 1200
Передняя левая конфорка 1700
Передняя правая конфорка 1200
Задняя правая конфорка 1700
Духовка - кольцевой 2000
Духовка - верх 750
Духовка - низ 1100
Духовка - гриль 1850
Духовка - вентилятор 35
Духовка - освещение 15
Макс. мощность
8610
Напряжение питания 230/400 В, 50 Гц
ПОЛЬЗОВАНИЕ ДУХОВКОЙ
3ru66041.fm Page 4 Thursday, January 16, 2003 5:33 PM

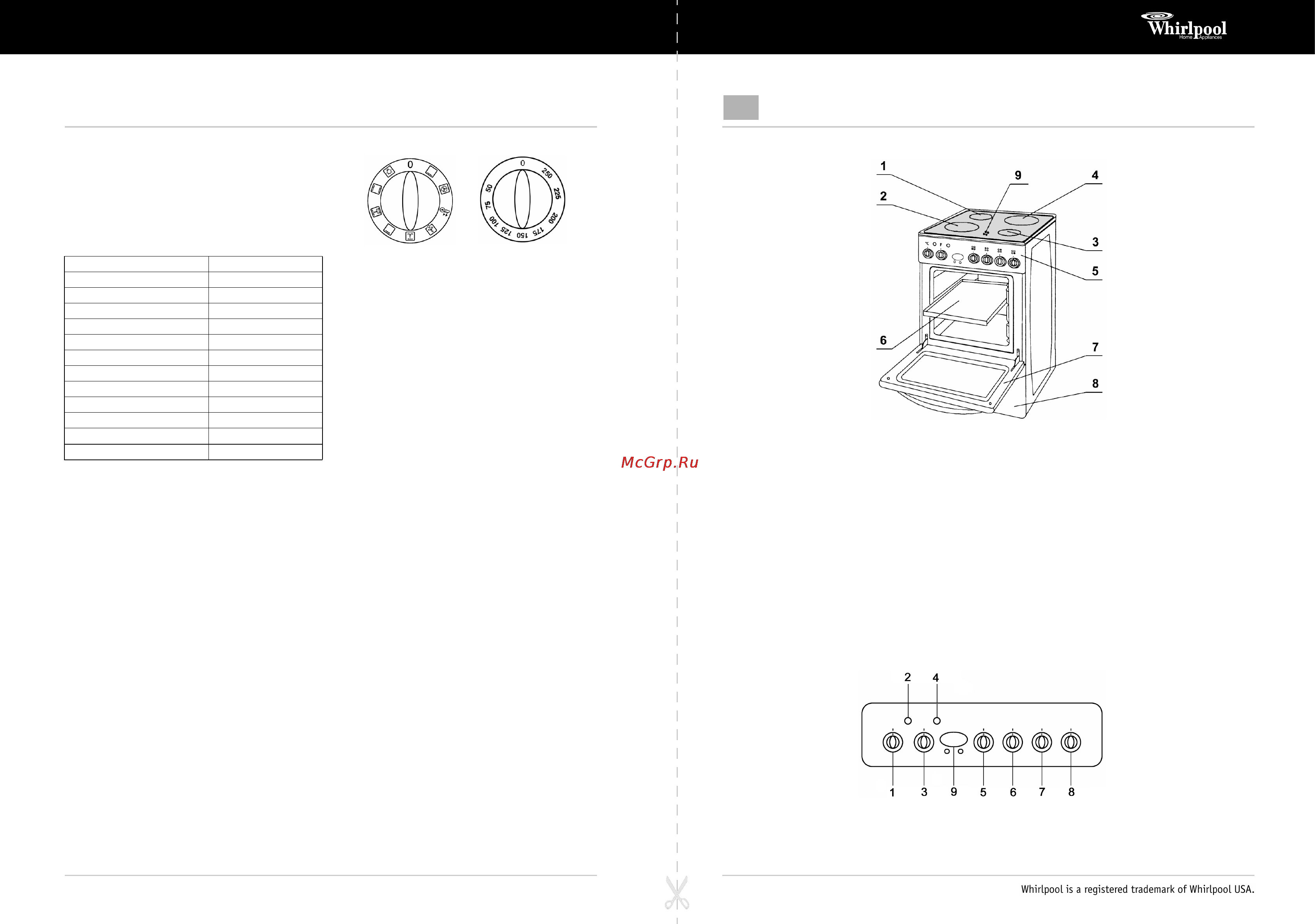

ACM 562/02 PRODUCT DESCRIPTION SHEET
RU
5019 310 66041
HOB
1.
Rear left radiant cooking zone (
Ø
145)
2.
Front left dual cooking zone (
Ø
180)
3.
Front right radiant cooking zone (
Ø
145)
4.
Rear right radiant cooking zone (
Ø
180)
5.
Control panel
DIMENSIONS (mm):
Height to the hob 850
Adjustable height +15
Width 500
Depth 605
OVEN
6.
ACCESSORIES:
- 2 baking trays
- wire shelf
- scraper
- adjustable feet
- catalytic panel (rear wall only)
7.
Oven door *
8.
Accessory flap panel
9.
Residual heat indicator
* Important:
An optional kit consisting of a third door
glass and of relevant mounting components is available by
the After-Sales Service. The use of this kit reduces the
temperature of the outer door surface and is strongly
recommended if there are children in the house.
Code No. 4812 310 48112.
CONTROL PANEL
1.
Thermostat control knob
2.
Thermostat control lamp
3.
Oven functions selector knob
4.
“Power ON” control lamp
5.
Front left cooking zone control knob
6.
Rear left cooking zone control knob
7.
Rear right cooking zone control knob
8.
Front right cooking zone control knob
9. Digital programmer
