Timberk SWH SE1 30 VU 30 л белый [5/36] Water heater description

www.timberk.com • electrical storage water heater

Model name

Capacity, l A B C D E

SWH SE1 10 VU

10 100 70 170 82 66

SWH SE1 10 VO

10 100 70 170 82 66

SWH SE1 15 VU

15 100 95 170 92 66

SWH SE1 15 VO

15 100 95 170 92 66

SWH SE1 30 VU

30 100 120 170 132 66

SWH SE1 30 VO

30 100 120 170 132 66

Fig. 4

Fig. 5

Fig. 6

Table 2

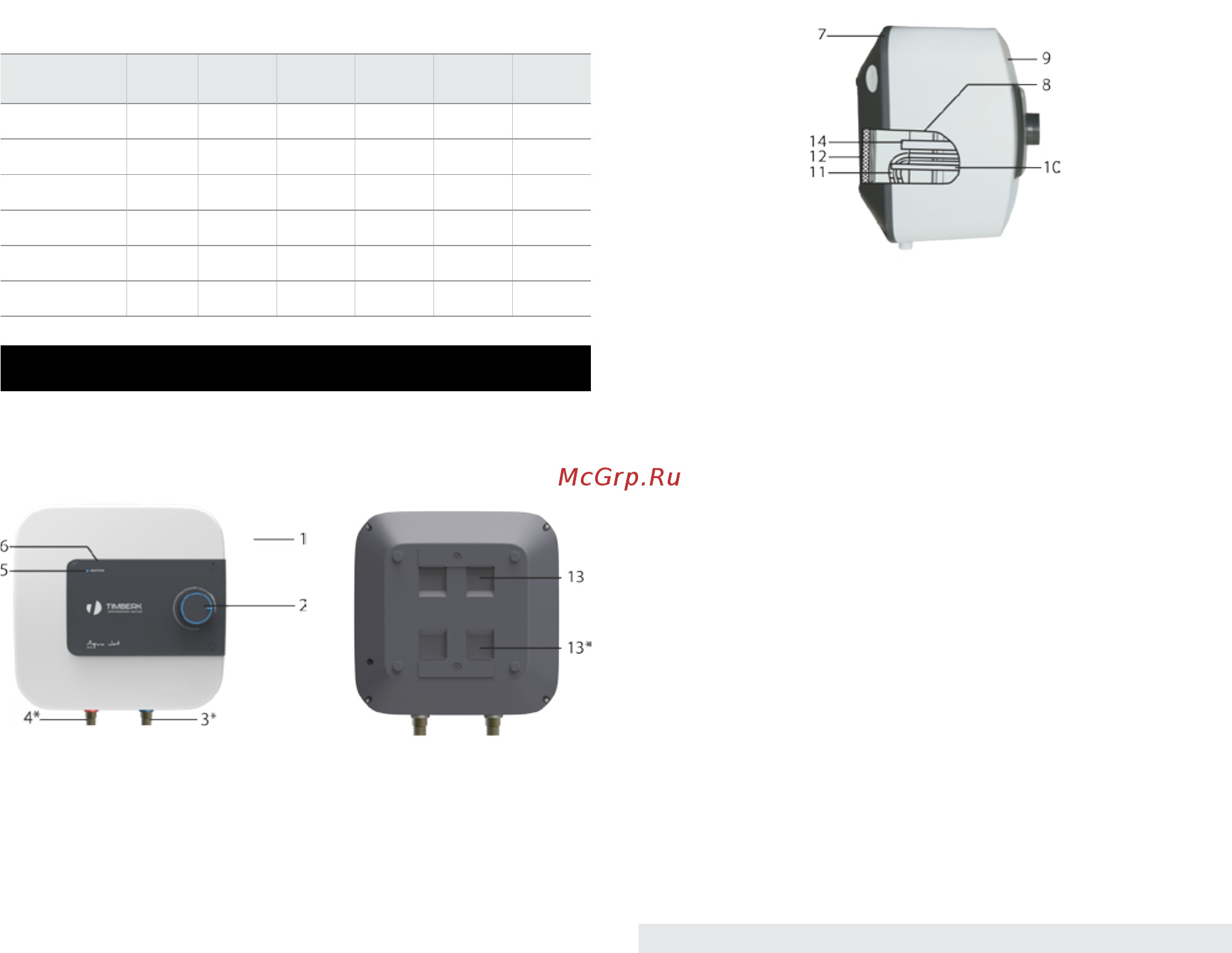

5. WATER HEATER DESCRIPTION

(through the example of SWH SE1 15 VO model)

1. Power cord

2. Temperature controller handle

3. Inlet nozzle*

4. Outlet nozzle*

5. “HEATING” indicator lamp

6. Face panel cover

7. Back panel

8. Inner tank

9. Face panel

10. Temperature controller pipe

11. Heating element

12. Thermal insulation

13. Groove for the hanging/mounting of water heater

14. Magnesium anode

* SWH SE1 VU series requires upper connection of water inlet and outlet; nozzles in this

model are located in the upper part of the water heater.
