6. Thermometer
6.1 RF Transmission Procedure:
• The main unit automatically starts receiving transmission from outdoor thermo sensor
for outdoor temperature after batteries are inserted.
• The thermo sensor unit will automatically transmit temperature signal to the main unit
after batteries inserted.
• For having more than one external transmitter (Maximum3), select the Channel, CH1,
CH2 or CH3 to ensure each sensor is transmitting difference channel before inserting
batteries. The channel select switch (D3) is at the back of the thermo sensor.
• Press “TX “button (D4) on the thermo sensor unit to transmit temperatures signal to
the weather station manually. The weather station gives a “beep” sound if it received
the temperature.
Note: Buttons (except “Light” button (B2)) will not function while scanning for thermo
sensor’s signal unless they are well received or stopped manually.
6.2 Temperature & Humidity:
(1) Outdoor Temperature--- Channel Selection

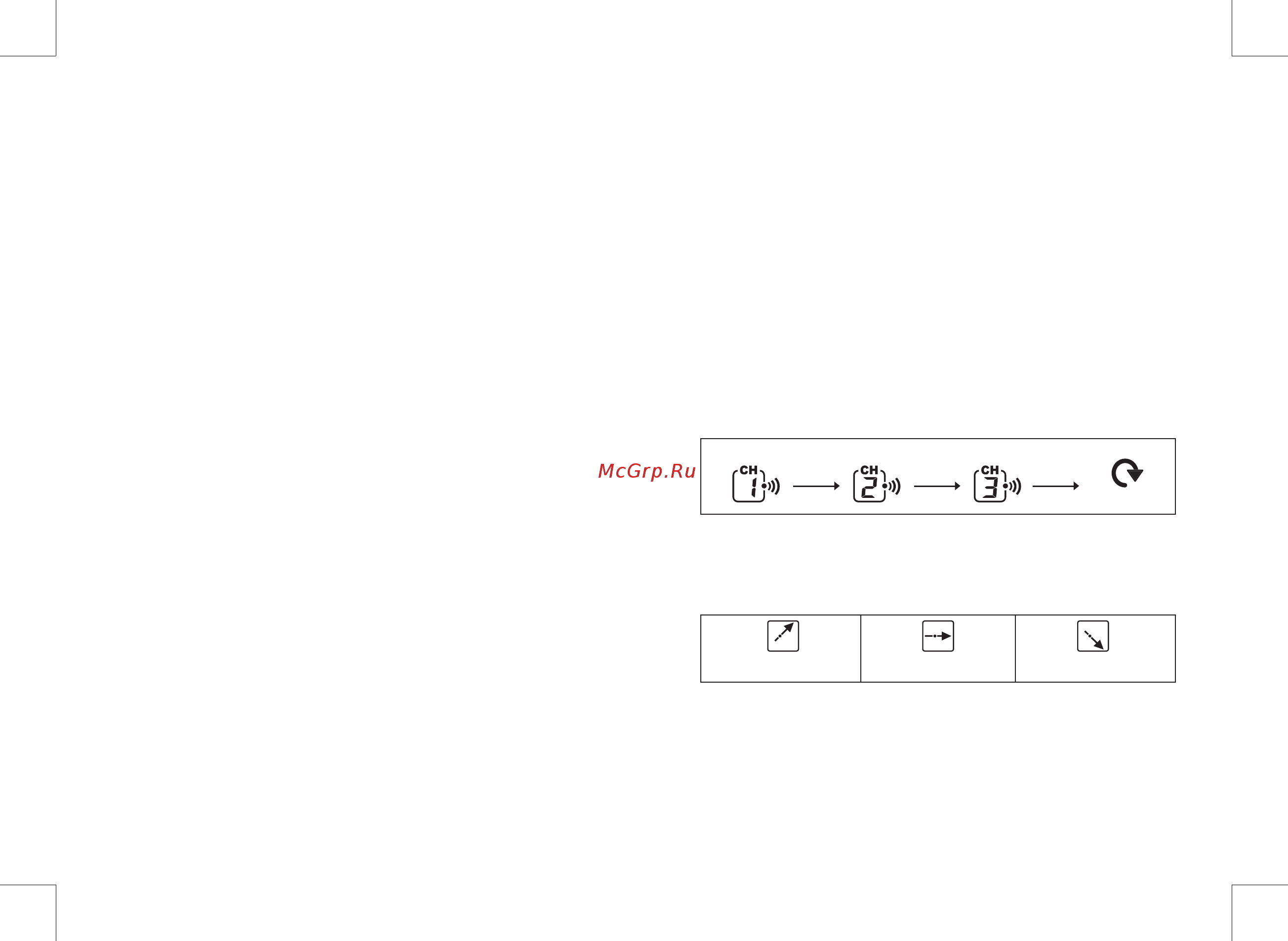

• Press “CHANNEL” button (B8) to view the 3 Channel’s temperature. The sequence is
shown as follow:
PRESS “CHANNEL” button > PRESS “CHANNEL” button > PRESS “CHANNEL” button
• Hold “CHANNEL” button for 3 seconds to cancel unused channel manually. It will
automatically register a new channel again if a new channel is received.
(2) Outdoor Temperature Trend
• The trend pointer (A5) displayed on the LCD indicates the trend of the outdoor
temperature.
(3) Celsius / Fahrenheit
• Press “°C /°F” button (B4) to select Indoor/Outdoor Temperature in Celsius mode or
Fahrenheit mode.
• If the temperature is out of the measurable range, LL.L (beyond the minimum
temperature) or HH.H (beyond the maximum temperature) will be shown on the LCD.
Display the three
channels alternatively
Indicating the outdoor
temp. is rising
Indicating the outdoor
temp. is steady
Indicating the outdoor
temp. is falling
ENGLISH 5 ENGLISH 6
4. Getting Started
4.1 Main Unit:
• Slide open main unit battery compartment cover [C2]
• Insert 3 x AAA batteries observing polarity [“ +” and “ –“ marks]
• Replace main unit battery compartment cover [C2]
• Use a pin to press the RESET [B9] button on the rear of the main unit, the main unit is
now ready for use
4.2 Outdoor Thermo Sensor
• Batteries compartment (D5) of thermo sensor is locating behind the back cover,
unscrews the batteries cover to open.
• Insert 2 x AAA batteries observing polarity [ “+” and “–“ marks]
5. Installation
5.1 Main Unit
The main unit can be placed onto any at surface (C3), or wall mounted by the hanging
hole (C1) at the back of the unit.
5.2 Outdoor Thermo sensor
The remote sensor should be securely mounted onto a horizontal surface.
Note:Transmissions between receiver and transmitter can reach up to 30m in open area.
Open Area: there are no interfering obstacles such as buildings, trees, vehicles, high
voltage lines, etc.
