INSTALLATION INSTRUCTIONS

The installation is the exclusive responsibility of specialists.

The user of this appliance is held to respect the legislation and the standards enforced in his

home country.

How to stick the gasket:

Fitting - installing:

 The dimensions are:

Reference

Cut size

MVI59.4HZ.2BT-WH

560 x 490 mm

 Ensure that there is a distance of 50 mm between the hob and the wall or sides.

 The hobs are classified as “Y” class for heat protection. Ideally the hob should be installed

with plenty of space on either side. There may be a wall at the rear and tall units or a wall

at one side. On the other side, however, no unit or device can be higher than the

hob.

 The piece of furniture or the support in which the hob is to be fitted, as well as the edges of

furniture, the laminate coatings and the glue used to fix them, must be able to resist

temperatures of up to 100 °C.

 The mural rods of edge must be heat-resisting.

 Do not install the hob to the top of a non- ventilated oven or a dishwasher.

 To ensure good air circulation of the electronic device, maintain a space of 20 mm under

the bottom of the hob casing.

 If a drawer is placed under the work, avoid putting flammable objects in this drawer

(for example: sprays) or non-heat-resistant objects.

 Materials which are often used to make worktops expand on contact with water. To protect

the cut-out edge, apply a coat of varnish or special sealant. Particular care must be given

when applying the adhesive joint supplied with the hob to prevent any leakage into the

supporting furniture. This gasket guaranties a correct seal when used in conjunction with

smooth work top surfaces.

 The safety gap between the hob and the cooker hood placed above must respect the

indications of the hood manufacturer. Respect a distance of at least 760 mm if you do not

have further instructions.

 The connecting cable cannot be subjected to mechanical constraint (e.g. a drawer) after

construction.

 WARNING: Use only hob guards designed by the manufacturer of the cooking appliance

or indicated by the manufacturer of the appliance in the instructions for use as suitable or

hob guards incorporated in the appliance. The use of inappropriate guards can cause

accidents.

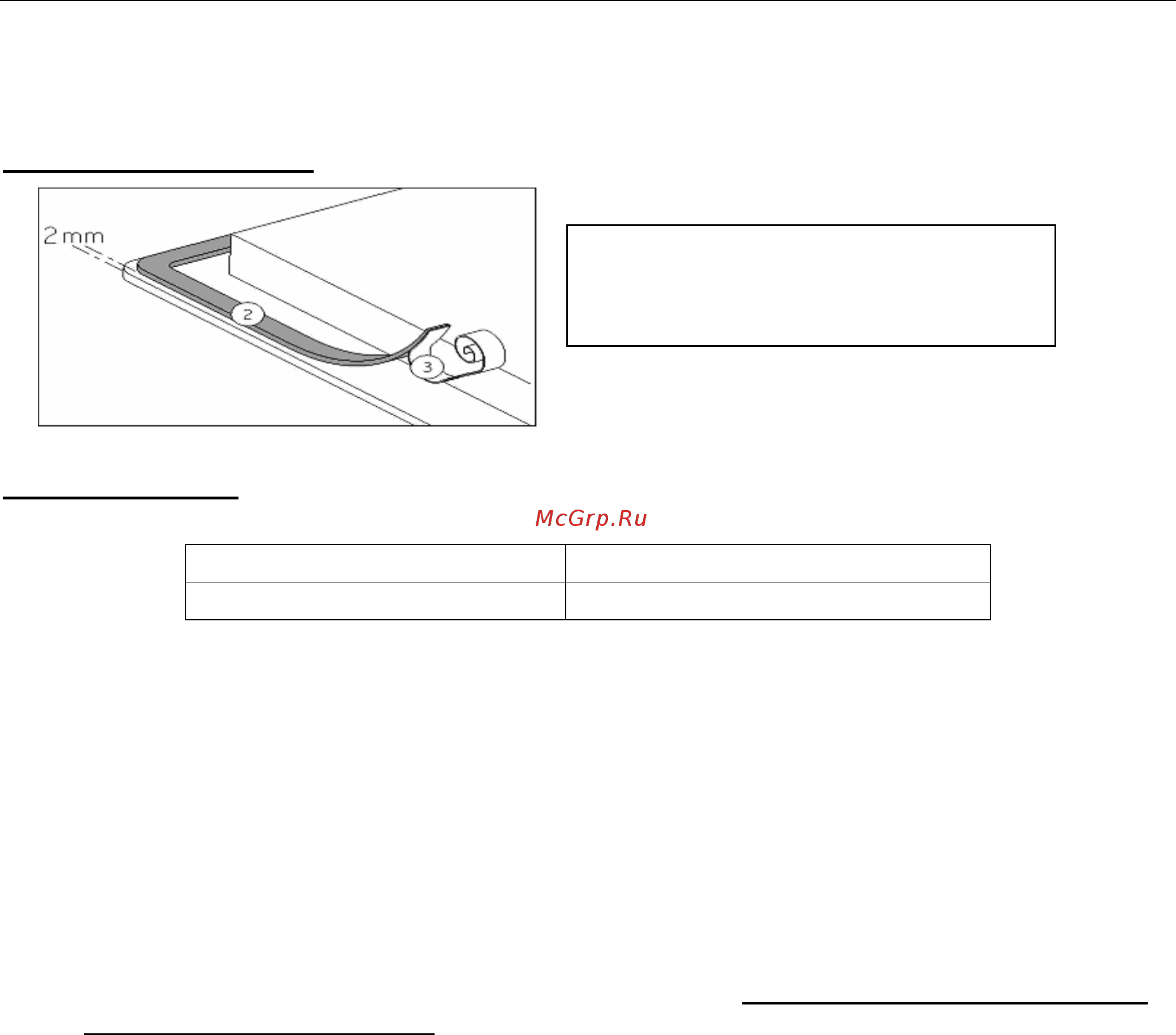

Stick the gasket (2) two millimetres

from the external edge of the glass,

after removing the protection sheet (3).
