User Manual of Embedded Net DVS

- 7 -

Interface Instruction (From left to right in turn)

1. Tx/Rx indicator lamp;

2. Link indicator lamp;

3. Power supply indicator lamp;

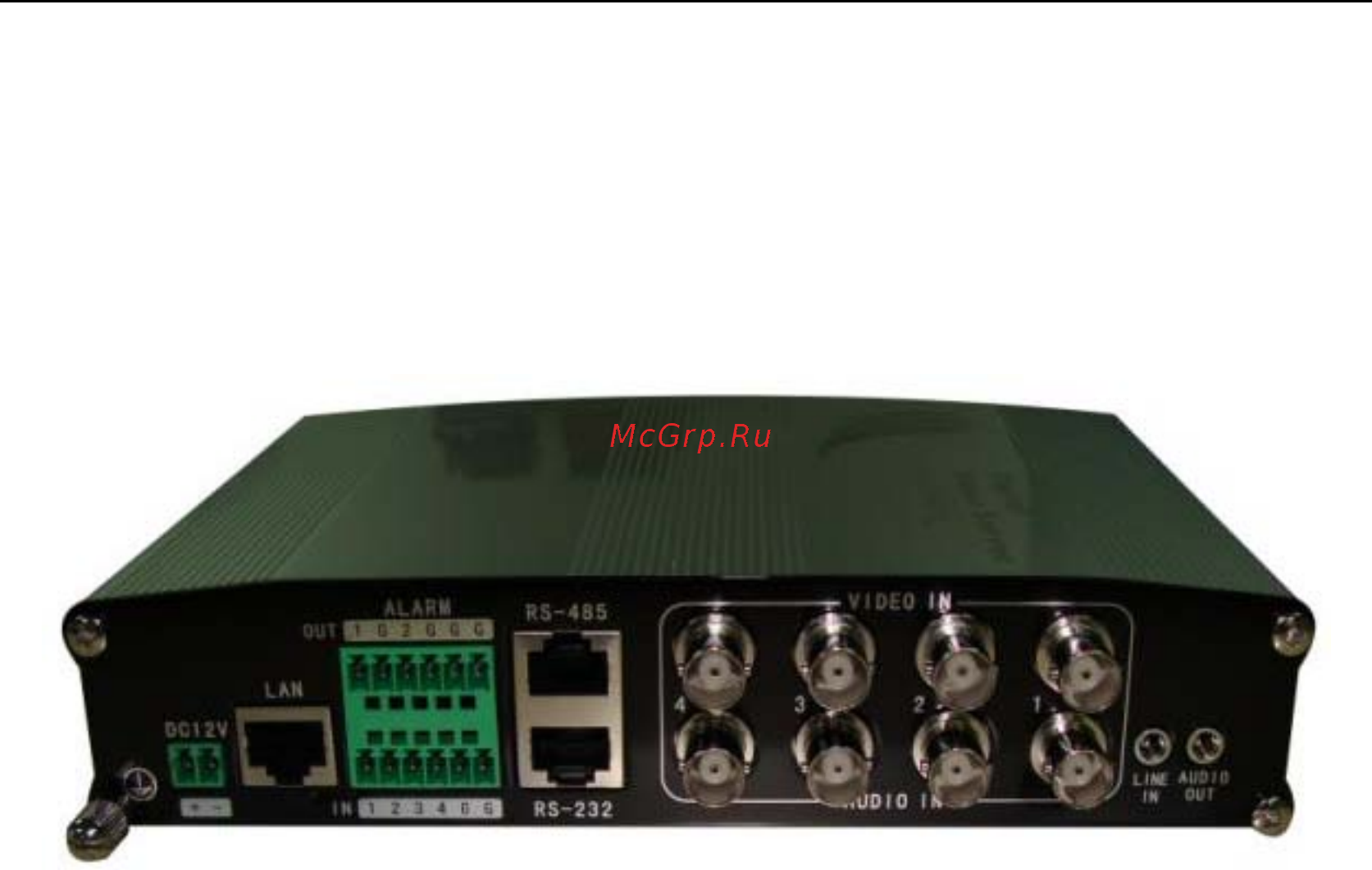

Back panel:

Interface Instruction (From left to Right in return):

1. Power jack is connected with 12V direct current through voltage stabilizer; Please use the

stabilizer power supply correctly;

2. UTP network connector;

3. 4 external alarm input and 2 relay output;

4. Standard RS-485 serial port RJ45 socket and Standard RS-232 serial port RJ45 socket;

5. 4 channels video input and audio input;

6. One line in audio input

7. One audio output.

2.3 The pin definition of physics interfaces

2.3.1 PIN definition of RS-232 serial interface

The DVS has one RS232 standard serial interface, with RJ-45 connector. Its pin definition is

as follows (‘I’ means input, and ‘O’ means output):
