Hikvision DS-2CE5582P(N)-VFIR3 [2/2] Template

Hikvision DS-2CE5582P(N)-VFIR3 [2/2] Template

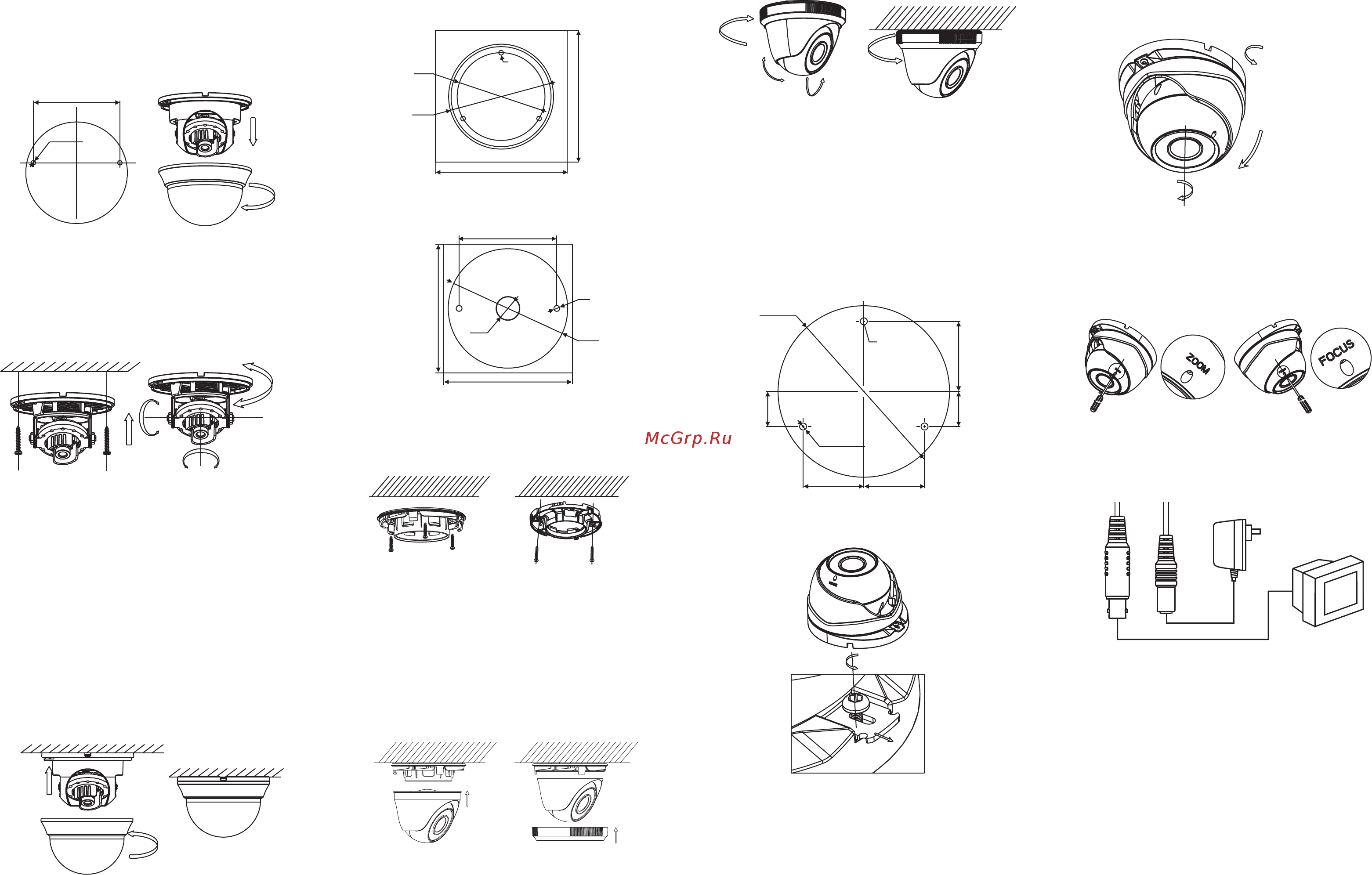

1.Hold the mounting base, and rotate the lower
dome counterclockwise to disassemble the
lower dome and the black liner.
2.Drill the screw holes and the cable hole the
ceiling according to the supplied drill template.
on
83.5
2-∅4.5
Steps:
Figure 2-1 The Disassembling
2.1 Ceiling Mounting for Type I
Camera
3.Route the cables to the cable hole and
the corresponding power cable and video cable.
4.Secure the mounting base to the ceiling with
the self tapping screws.
connect
-
6.Fit the black liner back to the camera.
7.Install the lower dome back to the camera and
rotate it clockwise to get it secured.
Figure 2-2 The Securing & 3-axis Adjustment
5.Adjust the Lens
1).Loosen the tilting lock screws besides the
lens.
2).Adjust the camera from the pan angle
( degrees); tilt angle (0~90 degrees),
and rotate the lens(0~355 degrees) to get the
optimum angle.
3).Tighten the tilting lock screws.
0~355
108
Screw Hole
∅86
108
∅72
Steps:
1.Drill the screw holes and the cable hole
according to the drill template.
Figure 2-5 Drill Template of Type Ⅲ Camera
2.Secure the mounting base to the ceiling with
the screws.
Figure 2-6 Secure the Mounting Base
3.Route the cables to the cable hole and
the corresponding power cable and
video cable.
4.Secure the camera to the mounting base.
5.Install the enclosure and the trim ring to
camera.
connect
Figure 2-7 Secure the Components
Camera
Figure 2-4 Drill Template of Type Ⅱ Camera
110
Hole
Ceiling Mounting
Hole
110
∅102
∅5
∅20
83.5
2.2 Ceiling Mounting for Type II/ III
Screw Hole
Template
3-∅4.5
∅110
45
39
39
22.5
22.5
6.Adjust the surveillance angle according to the
figure below.
7.Rotate the trim ring clockwise to secure the
camera.
Figure 2-10 The Lock Screw
Figure 2-8 Lens Adjustment
2.3 Ceiling Mounting for Type IV
Camera
Figure 2-9 The Drill Template
2.Loosen the lock screw to disassemble the
camera from the mounting base.
3.Secure the mounting base to the ceiling.
Steps:
1.Drill the screws holes and the cable hole on the
ceiling according to the supplied drill template.
360°
360°
0-75°
P 0°an -360°
Rotation 0°-360°
Tilt 0°-75°
4.Route the cables to the cable hole and connect
the corresponding cables.
5.Secure the camera to the mounting base by
tightening the lock screw.
6.Adjust the camera according to the figure
below to get an optimum angle.
Figure 2-11 Lens Adjustment
7.Use the screwdriver to adjust the ZOOM screw
and the FOCUS screw until you get the
optimum image.
Figure 2-12 Zoom and Focus Adjustment
2.4 Power Supply
Figure 2-13 The Power Cable & the Video Cable
Note:
Please make sure that the power adapter is
compatible with the camera, and the standard
power supply is 12V DC. Please refer to the
technical specification for more information.
Figure 2-3 Complete the Installation
