ASSEMBLY INSTRUCTIONS
Page

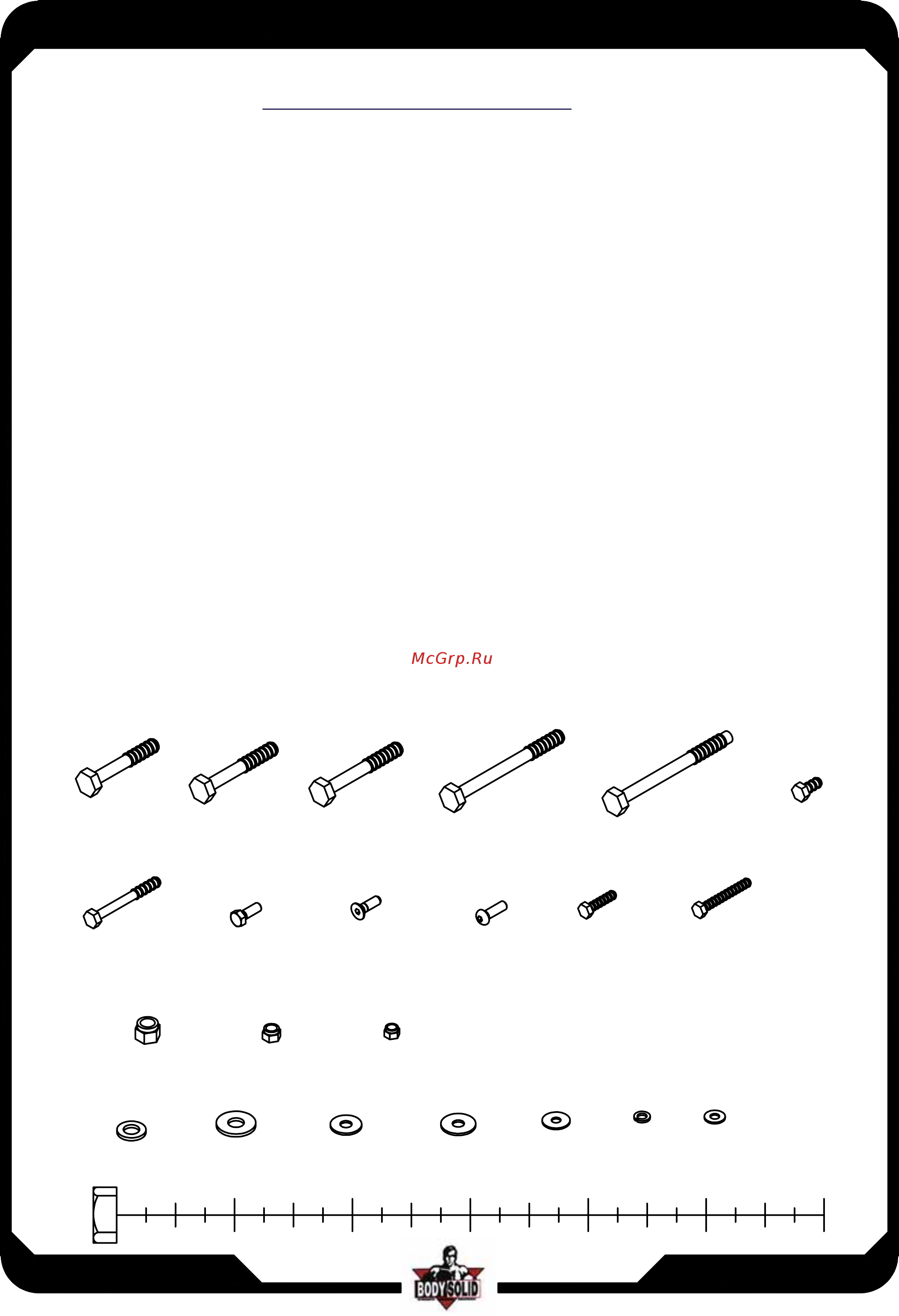

HARDWARE ILLUSTRATION
A1. 1/2"X3"L Hex Head Bolt----------------------------------------------------[4PCS]
A2. 1/2"X3 1/4"L Hex Head Bolt-----------------------------------------------[6PCS]
A4. 1/2"X5"L Hex Head Bolt----------------------------------------------------[3PCS]
A5. 1/2"X5 1/4"L Hex Head Bolt-----------------------------------------------[2PCS]
A6. 3/8X3/4"L Hex Head Bolt --------------------------------------------------[2PCS]
B1. 1/2" Nylon Lock Nut--------------------------------------------------------[19PCS]
C1. 1/2"(I.D.) Washer(
n25)-----------------------------------------------------[8PCS]
C6. 5/16" Spring Washer--------------------------------------------------------[17PCS]
A3. 1/2"X3 1/2"L Hex Head Bolt-----------------------------------------------[4PCS]
A1
A2
A3
A4
A5
B1
B2
C1
C2
C3
A7
A8. 5/16"X3/4" Hex Head Bolt--------------------------------------------------[4PCS]
B2. 3/8" Nylon Lock Nut----------------------------------------------------------[4PCS]
C2. 1/2"(I.D.) Washer(
n34)----------------------------------------------------[30PCS]
C4. 3/8"(I.D.) Washer(
n30)------------------------------------------------------[2PCS]
A7. 3/8"X3"L Hex Head Bolt----------------------------------------------------[4PCS]
A8
B3
C4
C5
A9. 5/16"X1" Co.Noid Head Bolt-----------------------------------------------[4PCS]
A10. 5/16"X1" Round Bolt------------------------------------------------------[13PCS]
A11. 5/16"X1 1/4" Hex Head Bolt----------------------------------------------[2PCS]
A12. 5/16"X2 1/4" Hex Head Bolt----------------------------------------------[2PCS]
B3. 5/16" Nylon Lock Nut--------------------------------------------------------[4PCS]
C3. 3/8"(I.D.) Washer(
n27)------------------------------------------------------[8PCS]
C5. 5/16"(I.D.) Washer(
n24)---------------------------------------------------[17PCS]
C6
A6
A9
A10
A11
A12
C7. 5/16" (I.D.)Washer(
n18)----------------------------------------------------[8PCS]
C7
LPH-1100
1
LPH-1100.1-072004
