Hexagonal

Holes

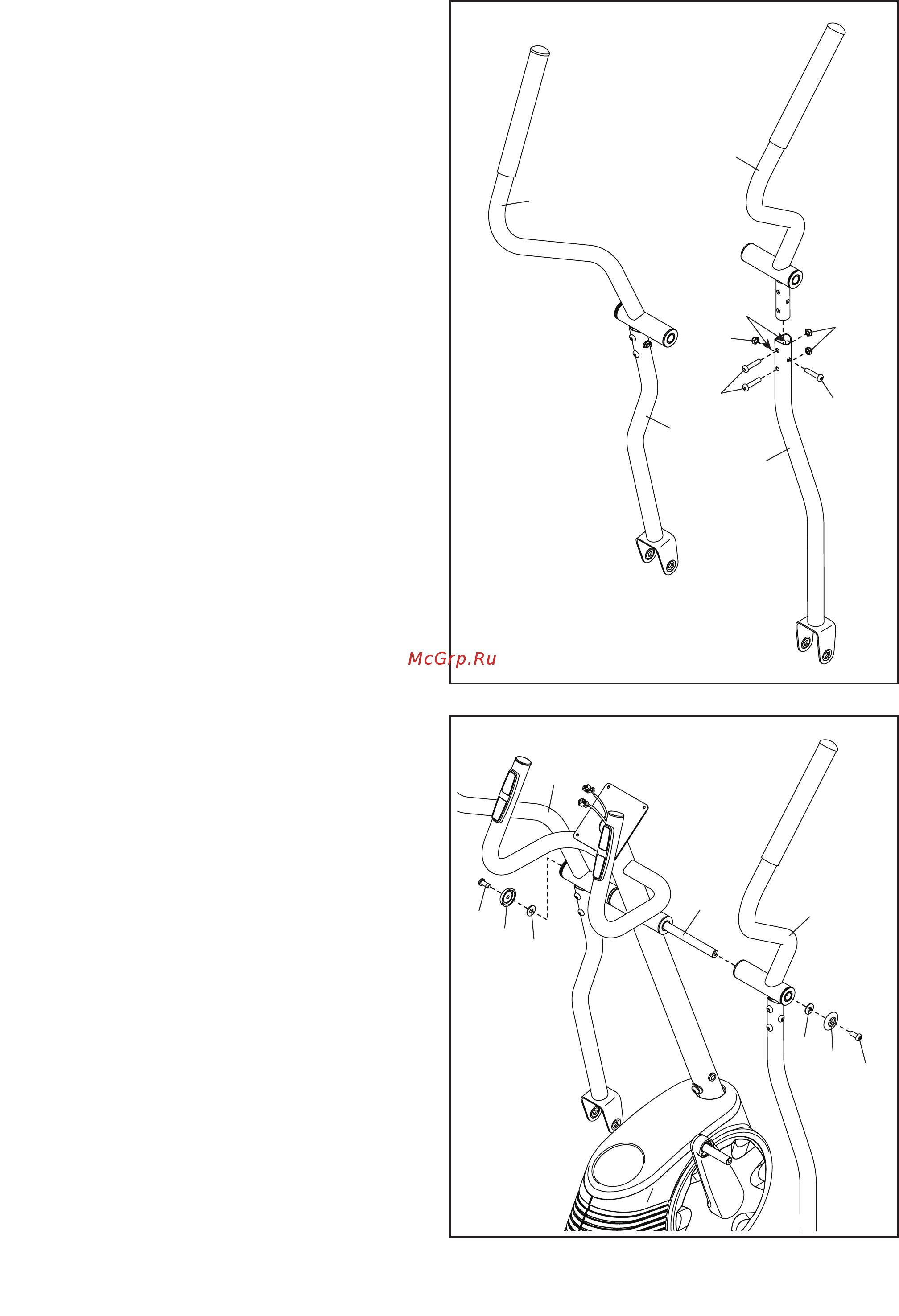

7. Identify the Right Upper Body Arm (4) and the

Right Upper Body Leg (5), and orient them as

shown.

Insert the Right Upper Body Arm (4) into the

Right Upper Body Leg (5). Attach the Right

Upper Body Arm with three M8 x 38mm Bolts

(59) and three M8 Locknuts (60); make sure

that the Locknuts are in the hexagonal holes.

Do not fully tighten the Bolts yet.

Attach the Left Upper Body Arm (3) to the

Left Upper Body Leg (6) in the same way.

8. Slide the Right Upper Body Arm (4) onto the

right side of the Upright Axle (18).

Slide the Left Upper Body Arm (3) onto the left

side of the Upright Axle (18).

Tighten an M8 x 20mm Screw (61) with an Axle

Cover (44) and an M8 Washer (63) into each

end of the Upright Axle (18) at the same time.
