MAINTENANCE

Regular maintenance is important for optimal

performance and to reduce wear. Inspect and properly

tighten all parts each time the elliptical is used.

Replace any worn parts immediately.

To clean the elliptical, use a damp cloth and a small

amount of mild soap. IMPORTANT: To avoid damage

to the console, keep liquids away from the console

and keep the console out of direct sunlight.

CONSOLE TROUBLESHOOTING

Most console problems are the result of low batteries.

To replace the batteries, see assembly step 9 on

page 10.

If the console does not display your heart rate when

you hold the handgrip heart rate monitor, or if the dis-

played heart rate appears to be too high or too low, see

step 5 on page 19.

HOW TO LEVEL THE ELLIPTICAL

If the elliptical rocks slightly on your floor during use,

see HOW TO LEVEL THE ELLIPTICAL on page 15.

HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the

reed switch should be adjusted.

To adjust the

drive belt, first

use a standard

screwdriver to

pry off the left

Disc (71).

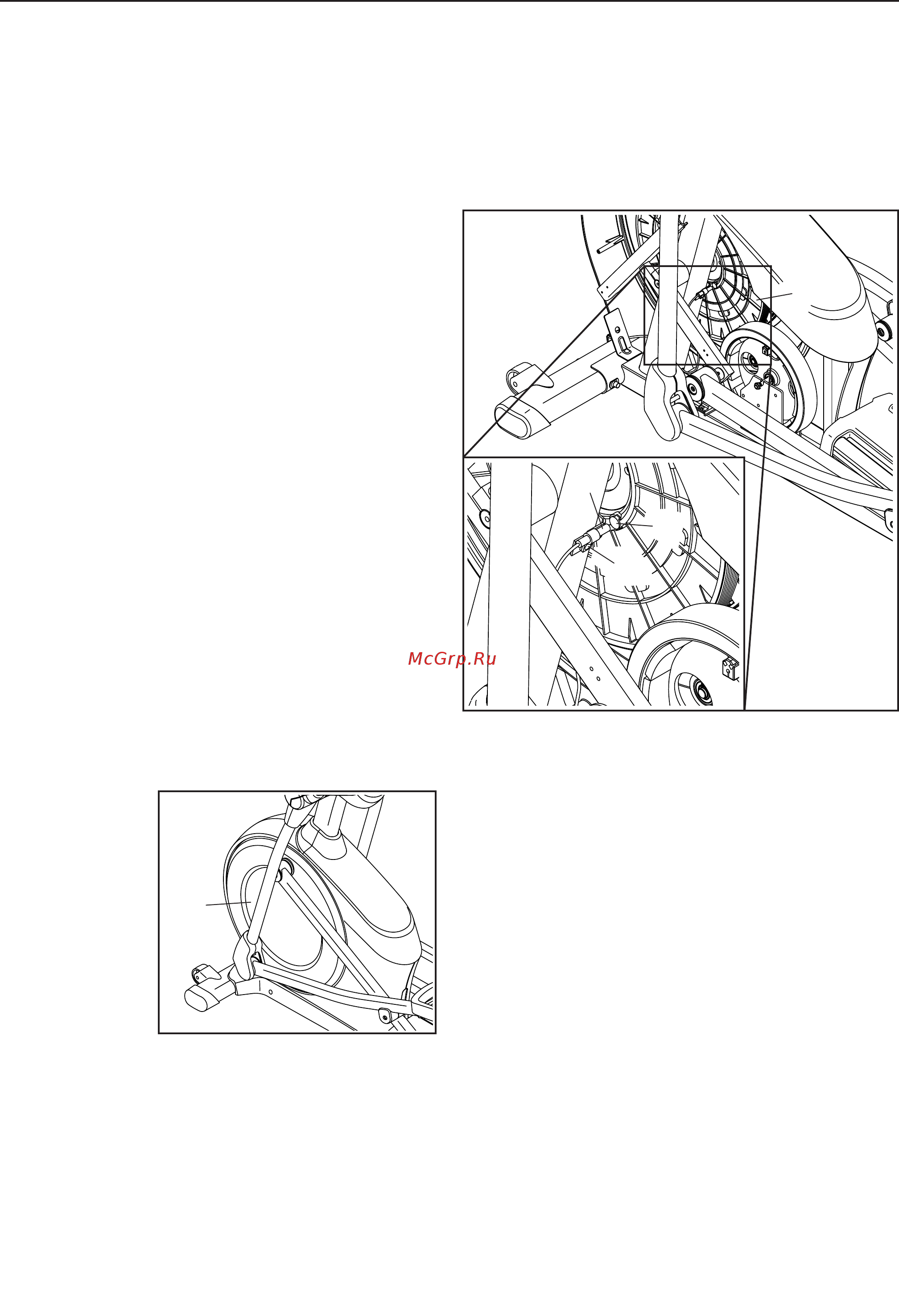

Note: For clarity, the left shield is shown removed in the

drawing below.

Next, locate the Reed Switch (38). Turn the Pulley (19)

until a Magnet (43) is aligned with the Reed Switch.

Slightly loosen the indicated M4 x 16mm Screw (101).

Slide the Reed Switch (38) slightly closer to or away

from the Magnet (43), and then retighten the Screw.

Then, rock the Pulley (19) forward and backward just

enough that the Magnet (43) passes the Reed Switch

(38) repeatedly. Repeat these actions until the console

displays correct feedback.

When the reed switch is correctly adjusted, reattach

the left disc.

101

MAINTENANCE AND TROUBLESHOOTING
