DGX-220/YPG-225
Lower case assembly

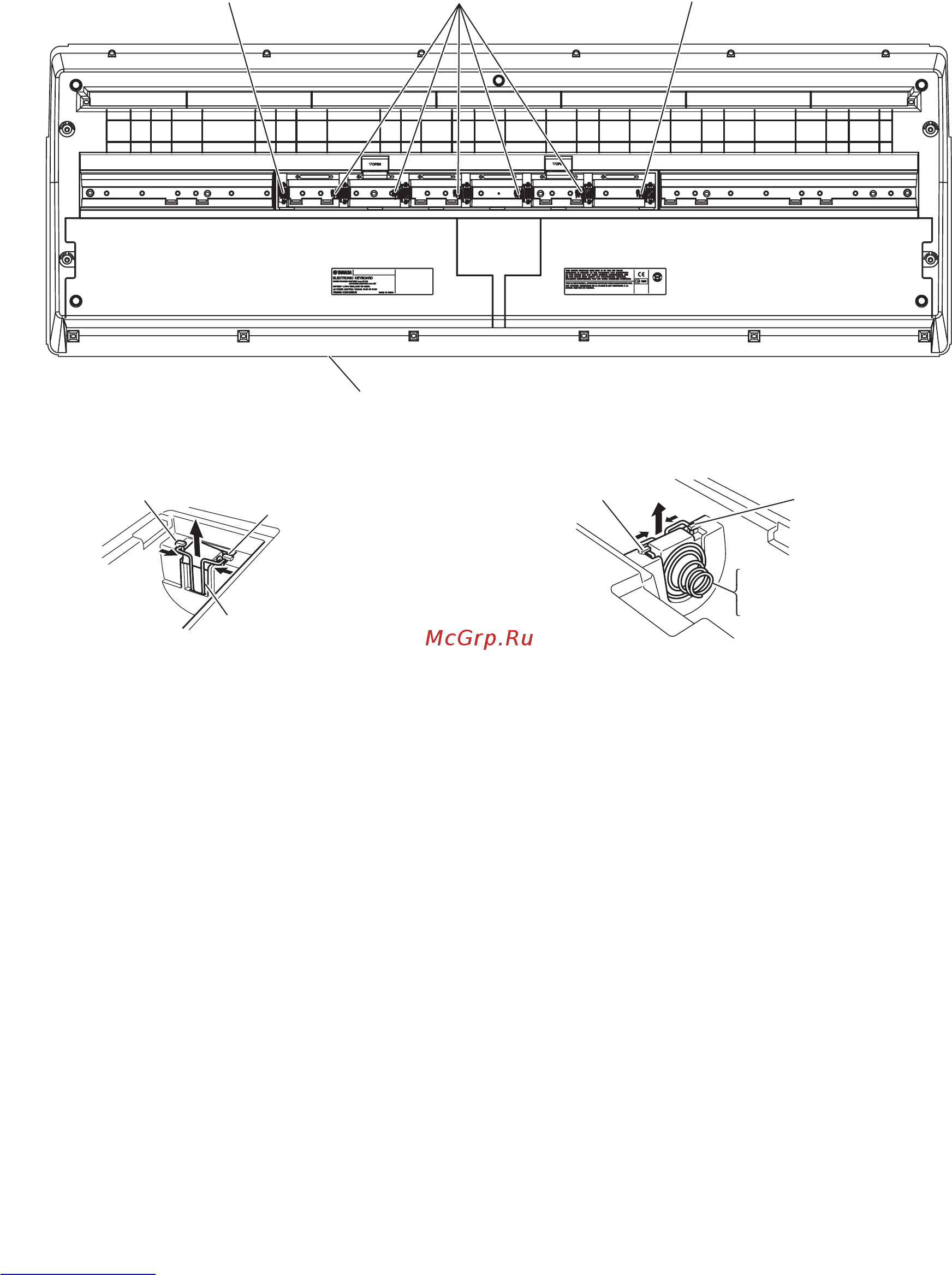

Spring terminal (+) Spring terminals Spring terminal (-)
(Fig.2)
Spring Terminal(+)
Hook
Hook
Hook
Spring Terminal(-)
Spring Terminal
Hook
(Fig.3) (Fig.4)
2. Spring Terminal
A. Spring Terminal (+) and (-)
2-1 Remove the Lower case assembly. (See procedure 1.)
2-2 Remove the battery harness soldered to the spring terminal (+) or (-). (Fig.2)
2-3 Remove the hooks (two at each place) and pull out the spring terminal (+) or (-). (Fig.3, Fig.4)
B. Spring Terminal
2-1 Remove the Lower case assembly. (See procedure 1.)
2-2 Remove spring terminal hooks (two at each place) and pull out the spring terminal. (Fig.4).
