FSP Proline 3/1 10K [37/48] 8 operating mode status description

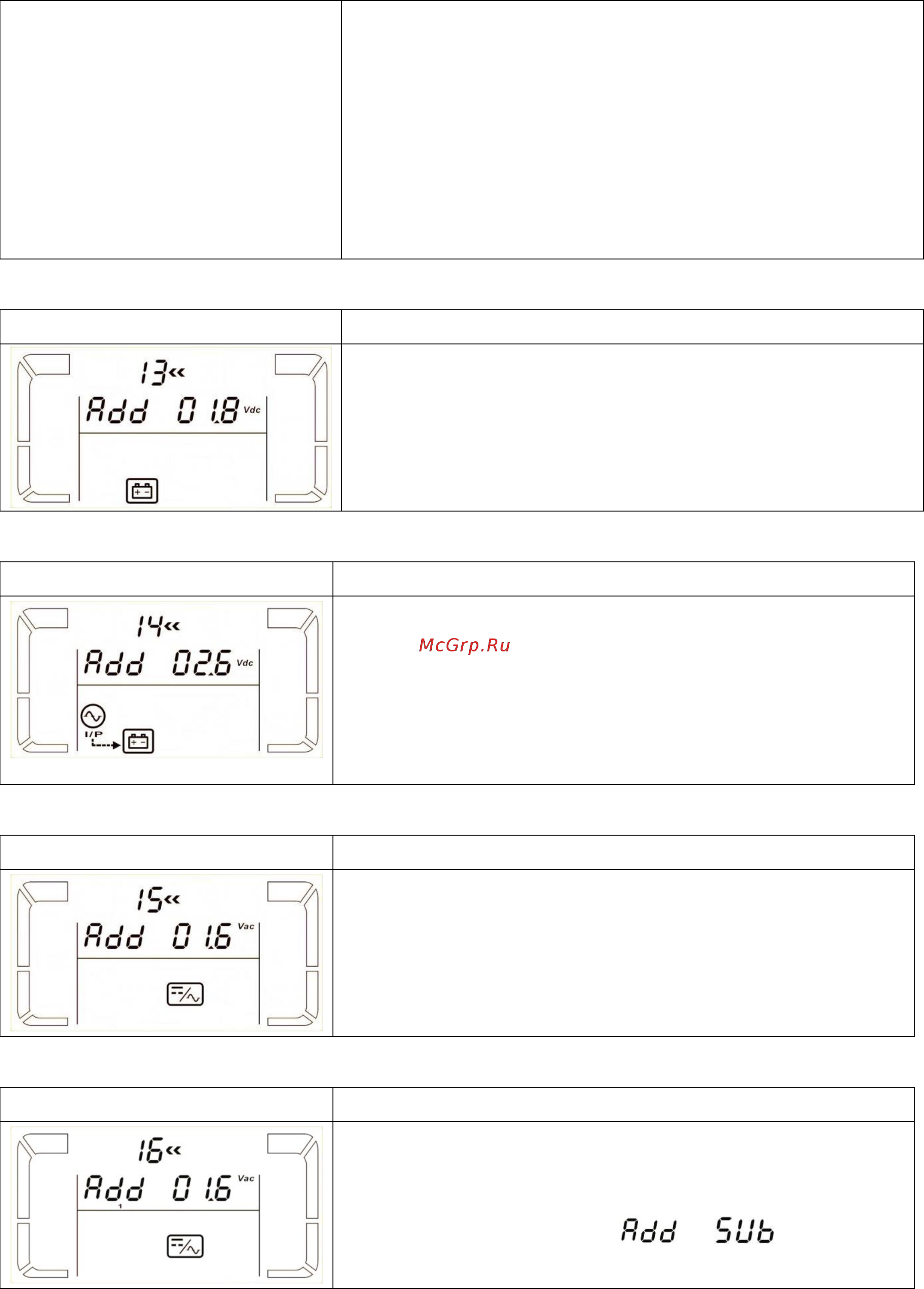

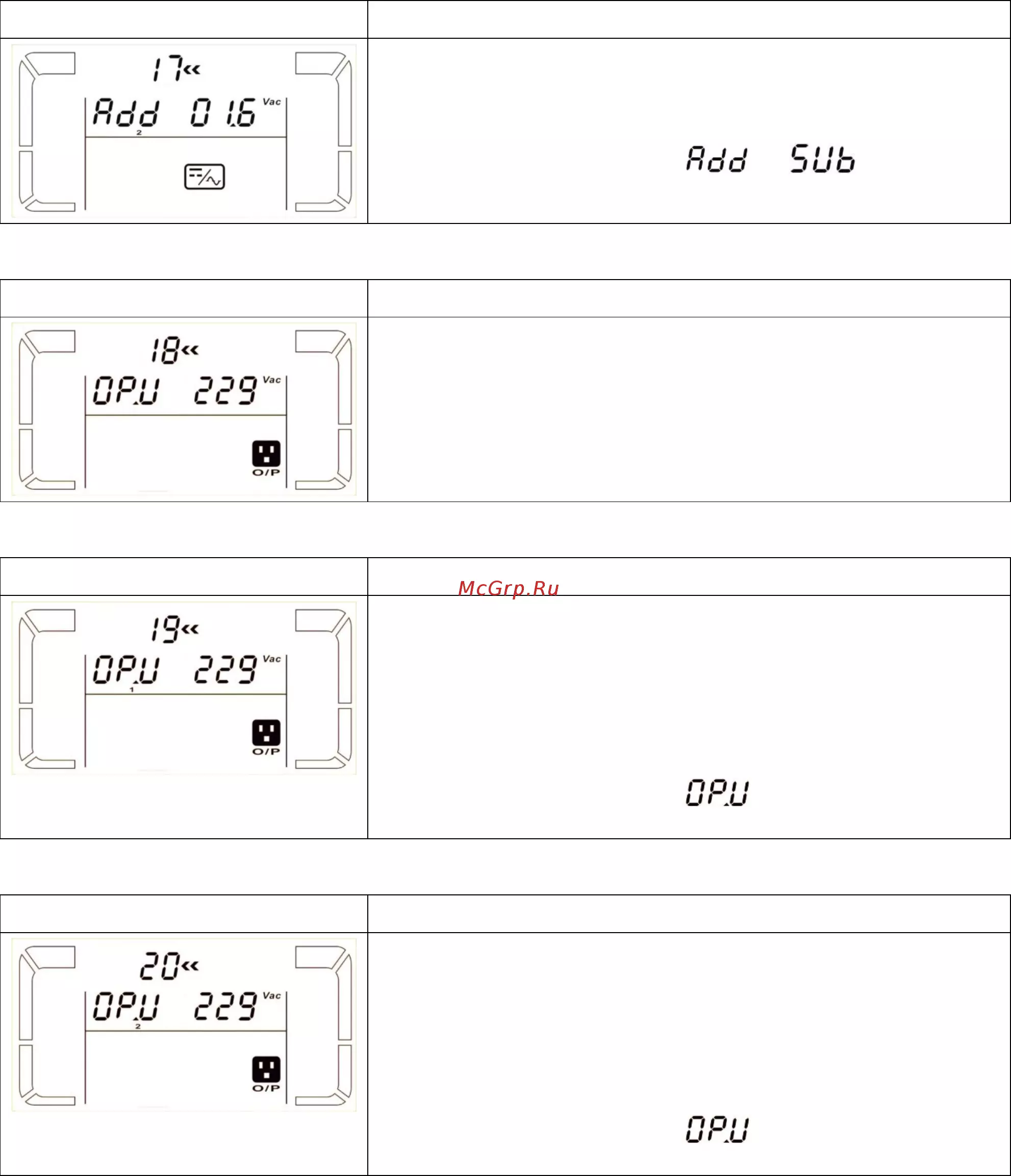

 17: Inverter C voltage adjustment**

Interface

Setting

Parameter 2: you may choose Add or Sub to adjust inverter C

voltage*.

Parameter 3: the voltage range is from 0V to 9.9V, the default

value is 0V.

*It will display number 2 under or to represent

inverter C voltage.

 18: Output A voltage calibration***

Interface

Setting

Parameter 2: it always shows OP.V as output voltage.

Parameter 3: it shows the internal measurement value of the

output A voltage, and you can calibrate it by pressing Up or Down

according to the measurement from an external voltage meter at

output terminal. The calibration result will be effective by pressing

Enter. The calibration range is limited within +/-9V. This function

is normally used for parallel operation.

 19: Output B voltage calibration***

Interface

Setting

Parameter 2: it always shows OP.V as output voltage*.

Parameter 3: it shows the internal measurement value of the

output B voltage, and you can calibrate it by pressing Up or Down

according to the measurement from an external voltage meter at

output terminal. The calibration result will be effective by pressing

Enter. The calibration range is limited within +/-9V. This function

is normally used for parallel operation.

*It will display number 1 under to represent the output B

voltage.

 20: Output C voltage calibration***

Interface

Setting

Parameter 2: it always shows OP.V as output voltage.

Parameter 3: it shows the internal measurement value of the

output C voltage, and you can calibrate it by pressing Up or

Down according to the measurement from an external voltage

meter at output terminal. The calibration result will be effective by

pressing Enter. The calibration range is limited within +/-9V. This

function is normally used for parallel operation.

*It will display number 2 under to represent the output C

voltage.

3-8. Operating Mode/Status Description

Following table shows LCD display for operating modes and status.

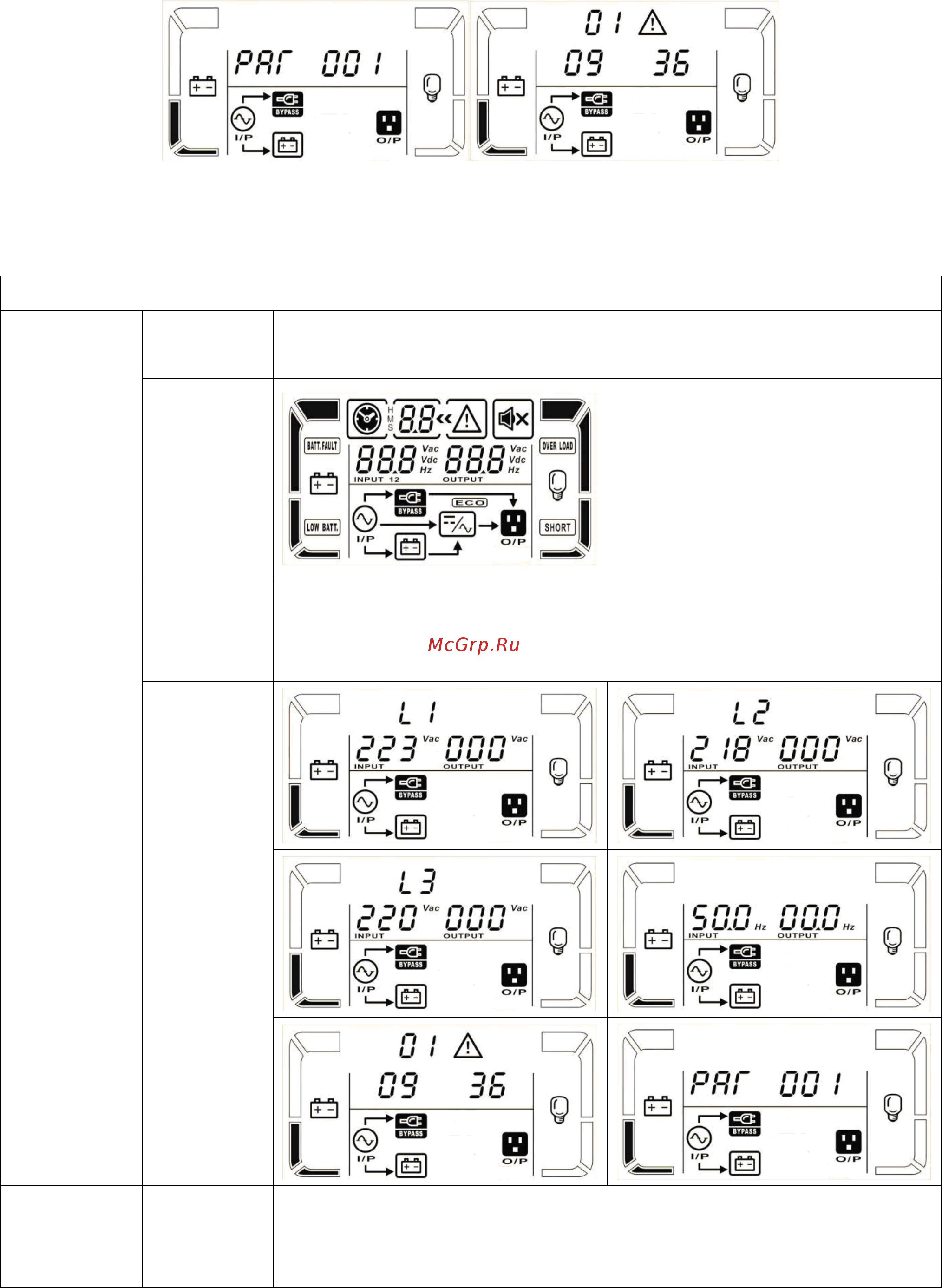

(1) If the UPS is in normal operation, it will show four screens one by one, which represents 3 phase input

voltage (L1, L2, L3) and frequency in turns.

(2) If parallel UPS systems are successfully set up, it will show one more screen with “PAR” in parameter 2

and assigned number in parameter 3 as below parallel screen diagram. The master UPS will be default

assigned as “001” and slave UPSs will be assigned as either “002” or “003”. The assigned numbers may be

changed dynamically in the operation.
