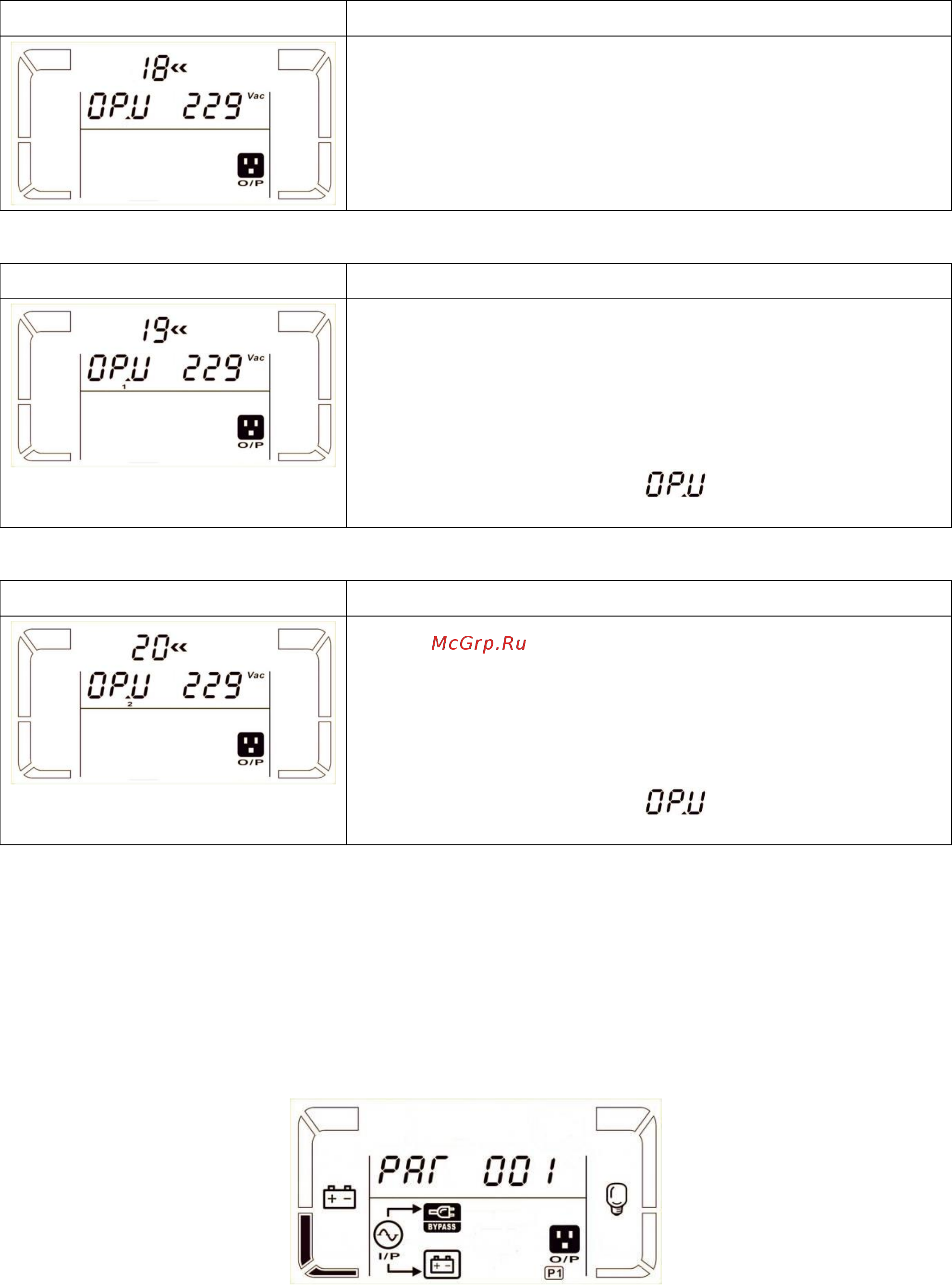

 18: Output A voltage calibration

Interface

Setting

Parameter 2: it always shows OP.V as output voltage.

Parameter 3: it shows the internal measurement value of the

output A voltage, and you can calibrate it by pressing Up or Down

according to the measurement from an external voltage meter.

The calibration result will be effective by pressing Enter. The

calibration range is limited within +/-9V. This function is normally

used for parallel operation.

 19: Output B voltage calibration

Interface

Setting

Parameter 2: it always shows OP.V as output voltage*.

Parameter 3: it shows the internal measurement value of the

output B voltage, and you can calibrate it by pressing Up or Down

according to the measurement from an external voltage meter.

The calibration result will be effective by pressing Enter. The

calibration range is limited within +/-9V. This function is normally

used for parallel operation.

*It will display number 1 under to represent the output B

voltage.

 20: Output C voltage calibration

Interface

Setting

Parameter 2: it always shows OP.V as output voltage.

Parameter 3: it shows the internal measurement value of the

output C voltage, and you can calibrate it by pressing Up or

Down according to the measurement from an external voltage

meter. The calibration result will be effective by pressing Enter.

The calibration range is limited within +/-9V. This function is

normally used for parallel operation.

*It will display number 2 under to represent the output C

voltage.

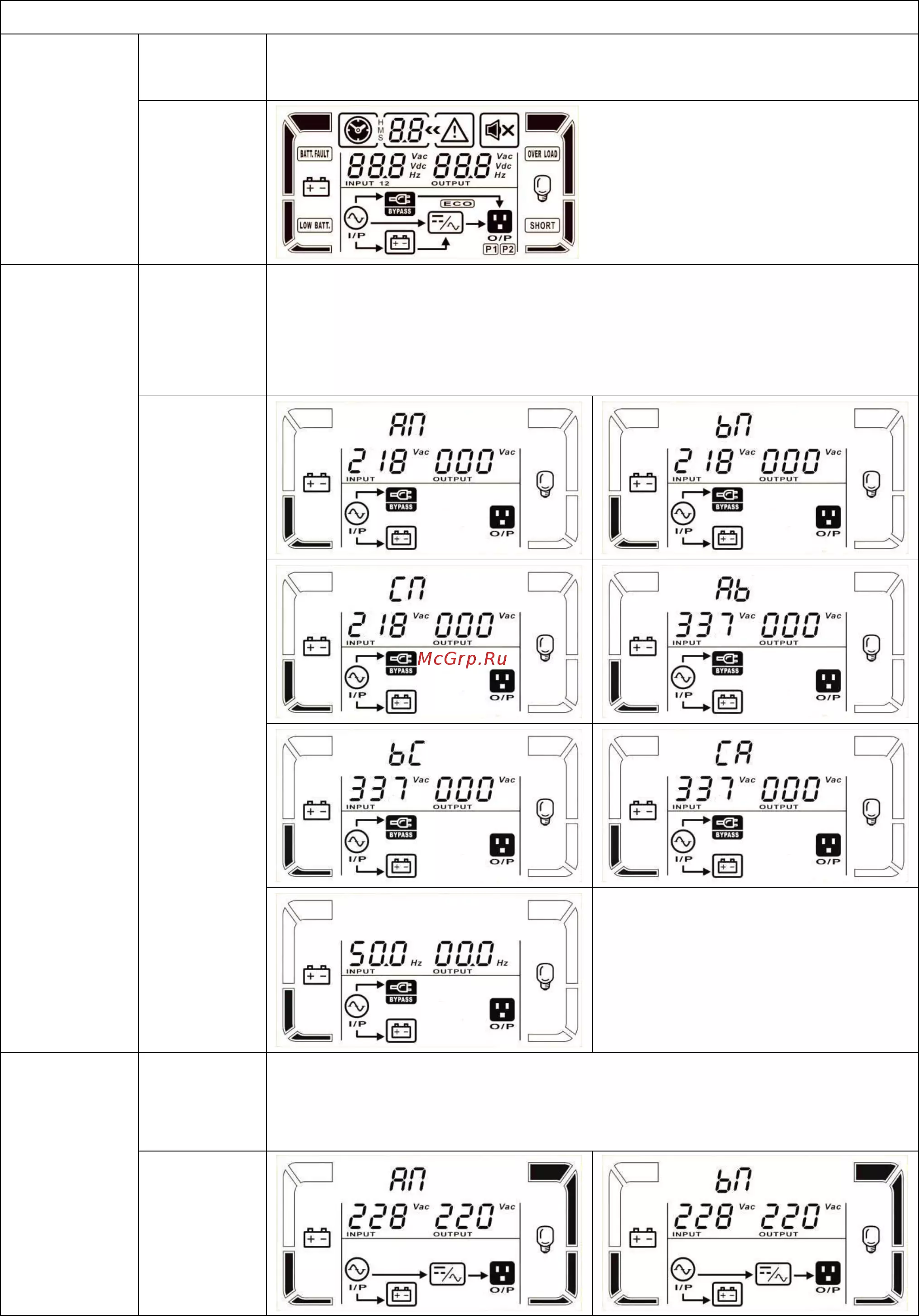

3-8. Operating Mode/Status Description

Following table shows LCD display for operating modes and status.

(1) If the UPS is in normal operation, it will show seven screens one by one, which represents 3 phase input

voltages (An, bn, Cn), 3 line input voltages (Ab, bC, CA) and frequency in turns.

(2) If parallel UPS systems are successfully set up, it will show one more screen with “PAR” in parameter 2

and assigned number in parameter 3 as below parallel screen diagram. The master UPS will be default

assigned as “001” and slave UPSs will be assigned as either “002” or “003”. The assigned numbers may be

changed dynamically in the operation;

Parallel screen
