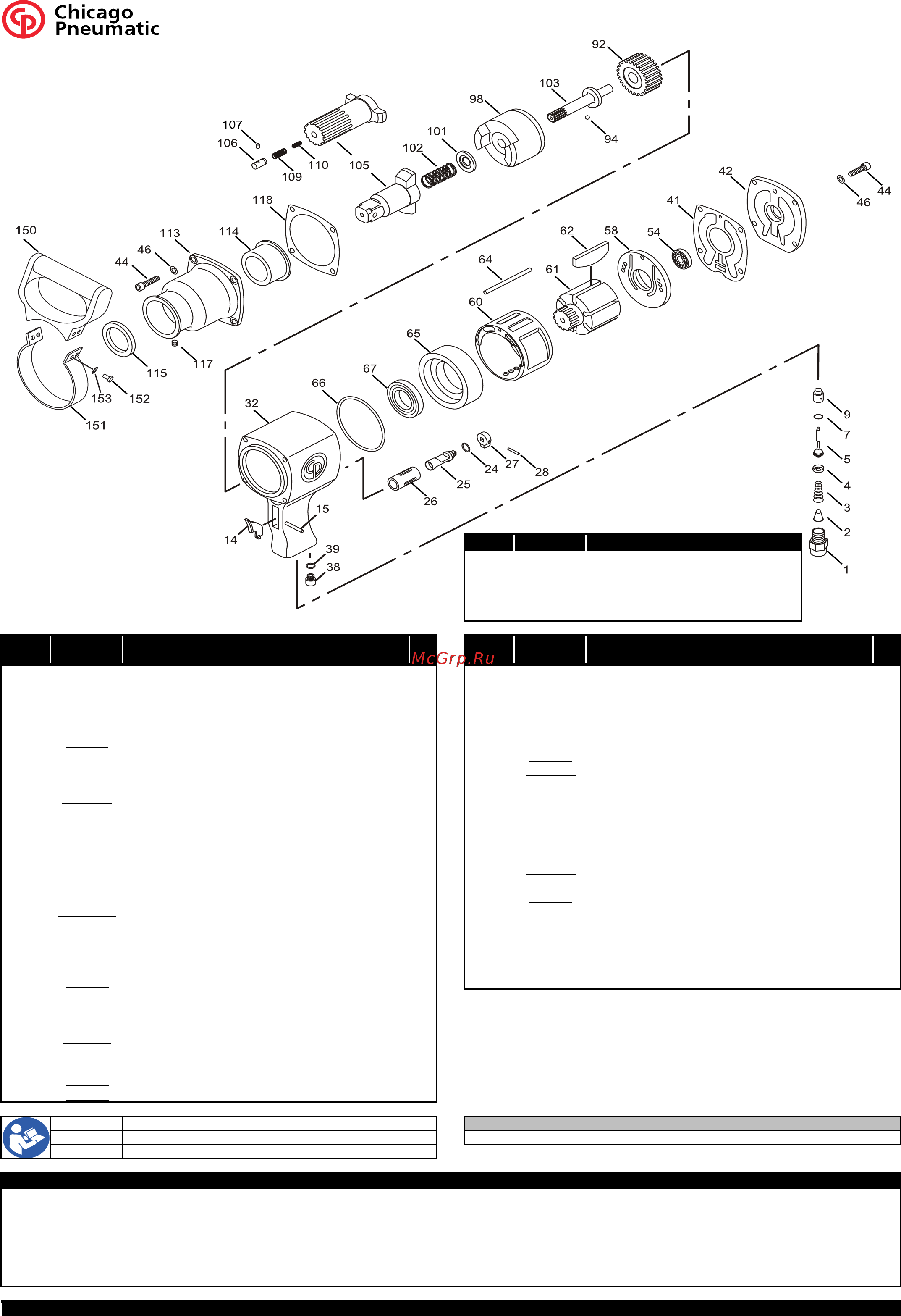

CP0611P Series
Impact Wrench 1"
Item Bond
1 / 32 -
P
88-95 N.m 65-70 ft.lbs
38 / 32 Loctite 577
P
20-27 N.m 15-20 ft.lbs
44 / 32 -
P
27-30 N.m 20-22 ft.lbs
115 / 113 Pliobond -
117 / 113 Loctite 577
P
2.3-2.8 N.m 1.7-2.1 ft.lbs
Item Part No Description Qty. Item Part No Description Qty.
1
C094354 THROTTLE CAP 1
92
C136165 COUPLING 1
2
C087505 SCREEN 1
94
CA048425 STEEL BALL 1
3
C117522 VALVE SPRING 1
98
C136170 DOG 1
4
C106818 O-RING RETAINER 1
101
C112190 SPRING SEAT 1
5
C117520 THROTTLE VALVE 1
102
C136164 SPRING 1
7
A043001 O-RING 1
103
C136169 TIMING SHAFT 1
9
C117517 THROTTLE VALVE BUSHING 1
105
C114136 ANVIL-SQUARE DRIVE 1
14
C087934 TRIGGER 1 CA128648 ANVIL-SPLINE DRIVE 1
15
S014764 NEEDLE ROLLER 1
106
C112191 PLUNGER 1
24
CA083354 O-RING 1
107
C047620 LOCK BUTTON 1
25
C106819 REVERSE VALVE 1
109
C112185 SPRING 1
26
C083339 VALVE BUSHING 1
110
C112202 SPRING 1
27
C068664 REVERSE VALVE LEVER 1
113
C117545 CLUTCH HOUSING (Incl. Item #114, 115, 117) 1
28
G071613 ROLL PIN 1
114
C112188 BUSHING 1
32
C142842 MOTOR HOUSING (Incl. Item #9, 26, 49) 1
115
CA088508 SEAL 1
38
C085233 PLUG-OIL FILLER 1
117
C054897 PLUG 1
39
A082777 O-RING 1
118
C112186
CLUTCH HOUSING GASKET
1
41
2050559253 COVER GASKET 1
150
CA048548 SIDE HANDLE 1
42
C146888 MOTOR HOUSING COVER 1
151
C116388 HANDLE BAND 1
44
S067779 SCREW 8
152
C064806 SCREW 4
46
2050557513 LOCK WASHER 8
153
S000271 LOCK WASHER 4
49
C095035 HELICOIL INSERT (not shown) 8
LABEL
CA155779 SAFETY WARNING DECAL (NOT SHOWN) 1
54
C068659 BALL BEARING 1
ACC.
C155472 RETAINING RING 1
58
C136167 UPPER ENDPLATE 1
60
C136166 LINER 1
61
C112196 ROTOR 1
62
KF138246 BLADE (SET OF 6) 1
64
C136161 DOWEL PIN 1
65
C136168 LOWER ENDPLATE 1
66
C136162 O-RING 1
67
C066977 BALL BEARING 1
2050475983 OPERATOR'S MANUAL C115811 TUNE UP KIT
2050553003 CE DECLARATION OF CONFORMITY 4, 7, 24, 39, 41, 62, 66, 115 & 118
6159948710 SAFETY INSTRUCTIONS
C155470 Retaining Ring - 10008S (1 3/4") C155471 Retaining Ring - 10010S (2") C155472 Retaining Ring - 10015S (2 1/8")
C134692 Retaining Ring - 10016S (2 1/4") C155473 Retaining Ring - 10017S (2 1/2") C155474 Retaining Ring - 10019S (2 5/8")
Hose kit (incl. EasyFlow coupling) Nipple FRL kit (incl. EasyFlow coupling)
BSP (EURO 10.4mm) 6153980585 6158106720 6153980385
NPT 6153980635 6158105870 6153980415
Spare parts without part number are not sold separately 2050552993
Rev 08
07/2012
Recommended accessories
Tightening torque
