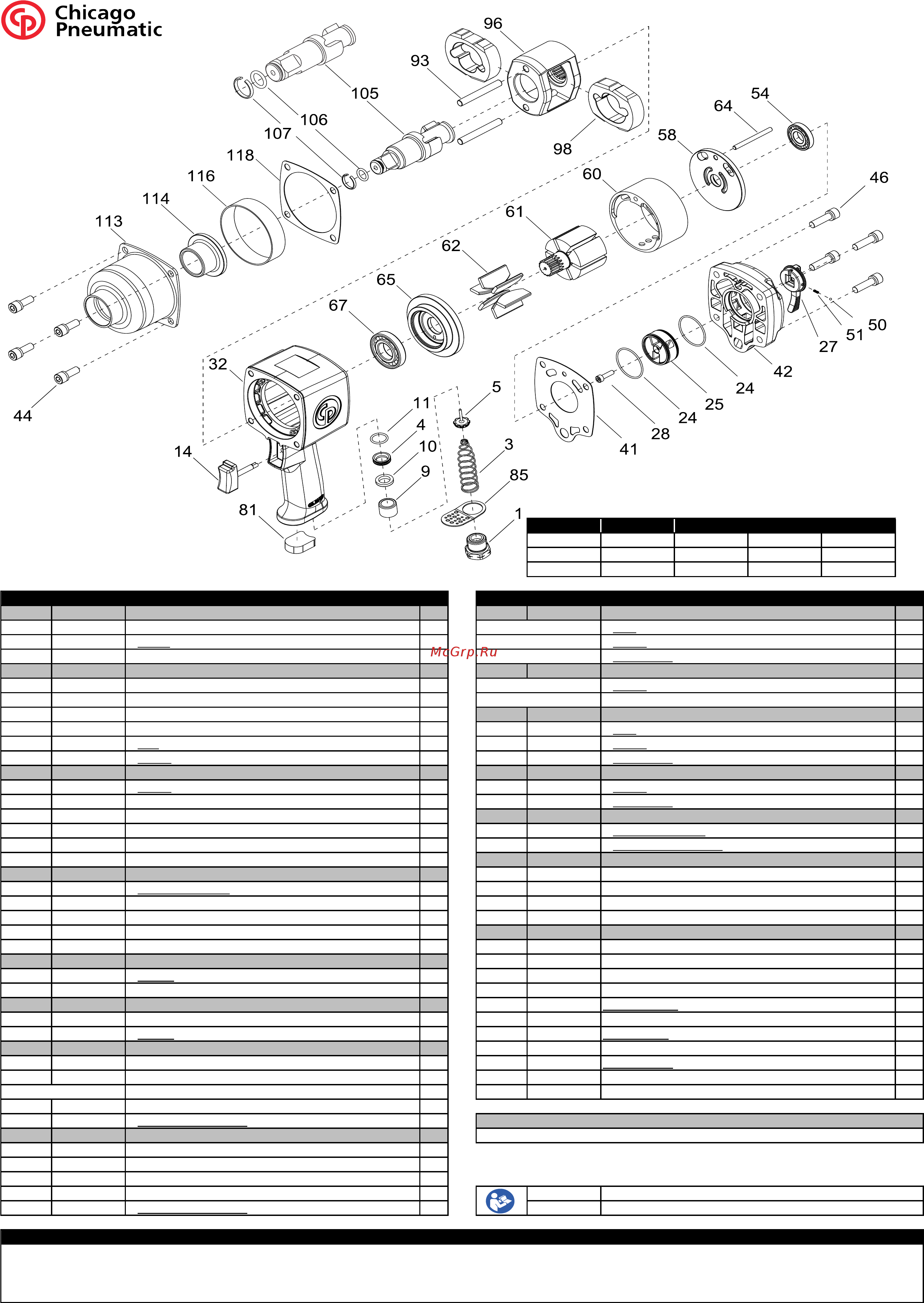

CP6763 & CP6773 Series

Impact Wrench 3/4" & 1"

Item Bond

1 / 32 Loctite 517

14.7 N.m 10.8 ft.lbs

44 / 32 3M 2353

12.7 N.m 9.4 ft.lbs

46 / 32 3M 2353

12.7 N.m 9.4 ft.lbs

Item Part No Description Qty. Item Part No Description Qty.

A 8940171665 AIR INLET KIT H1 6153990940 3/4" ANVIL ASSEMBLY CP6763

1 Inlet Bushing 1 105-3/4" Anvil 1

81 Muffler 1 106-3/4" O-Ring 1

85 Exhaust-Deflector 1 107-3/4" Friction Ring 1

B 8940171666 THROTTLE VALVE KIT H12 8940168715 SOCKET RETAINER KIT - 3/4" CP6763

3 Spring-Throttle Valve 1 106-3/4" O-Ring 5

4 Insert Bushing 1 107-3/4" Friction Ring 5

5 Valve-Throttle 1 H3 2050561263 1" ANVIL ASSEMBLY CP6773

9 Bushing 1 105-1" Anvil 1

10 8940162875 Seal 1 106-1" O-Ring 1

11 O-Ring 1 107-1" Friction Ring 1

C 8940171667 REVERSE / REGULATOR VALVE KIT H34 8940171672 SOCKET RETAINER KIT - 1" CP6773

24 O-Ring 2 106-1" O-Ring 5

25 Reverse Valve 1 107-1" Friction Ring 5

27 Lever-Reverse Valve 1 I 2050561213 GASKETS KIT

28 Screw 1 41 Gasket-Rear Cover 1

50 Steel Ball 1 118 Gasket-Clutch Housing 1

51 Spring 1 J 2050561223 SMALL PARTS KIT

D 8940171668 REAR COVER ASSEMBLY 44 Screw 4

41 Gasket-Rear Cover 1 46 Screw 4

42 Rear Cover 1 50 Steel Ball 1

46 Screw 4 51 Spring 1

50 Steel Ball 1 OTHER PARTS AND SETS

51 Spring 1 14 8940162882 Trigger 1

E 8940171669 REAR END PLATE ASSEMBLY 32 2050561313 Housing-Motor 1

54 8940162872 Bearing 1 60 8940162869 Liner 1

58 Plate-Rear End 1 61 8940162868 Rotor 1

F 8940171670 FRONT END PLATE ASSEMBLY 62 8940162867 Vanes (set of 6) 1

65 Plate-Front End 1 64 8940162871 Dowel pin 1

67 8940162865 Bearing 1 93 8940171675 Pins (set of 2) 1

G1 2050561193 CLUTCH HOUSING ASSEMBLY - 3/4" CP6763 96 8940162856 Cage 1

44 Screw 4 98 8940171676 Dogs (set of 2) 1

113 Clutch Housing (steel) 1 - 2050561153 Nameplate / Warning Label CP6763 1

114-3/4" Bushing-Clutch Housing 1 - 2050561163 Nameplate / Warning Label CP6773 1

116 Collar 1

118 Gasket-Clutch Housing 1 8940171687 TUNE UP KIT

G2 2050561203 CLUTCH HOUSING ASSEMBLY - 1" CP6773 10, 11, 24, 41, 50, 51, 62, 81 & 118

44 Screw 4

113 Clutch Housing (steel) 1

114-1" Bushing-Clutch Housing 1

116 Collar 1 2050561133 OPERATOR'S MANUAL

118 Gasket-Clutch Housing 1 6159948710 SAFETY INSTRUCTIONS

Recommended Accessories

Hose whip Hose kit (incl. EasyFlow coupling) Nipple FRL kit (incl. EasyFlow coupling)

BSP (EURO 7.6mm) 6158112640 6153980575 6158105920 6153980375

NPT CA049271 6153980615 6158105780 6153980405

NPT (Asia 7.5mm) CA049271 6153980665 6158106850 6153980435

Spare parts without part number are not sold separately 2050561143 Rev.02
