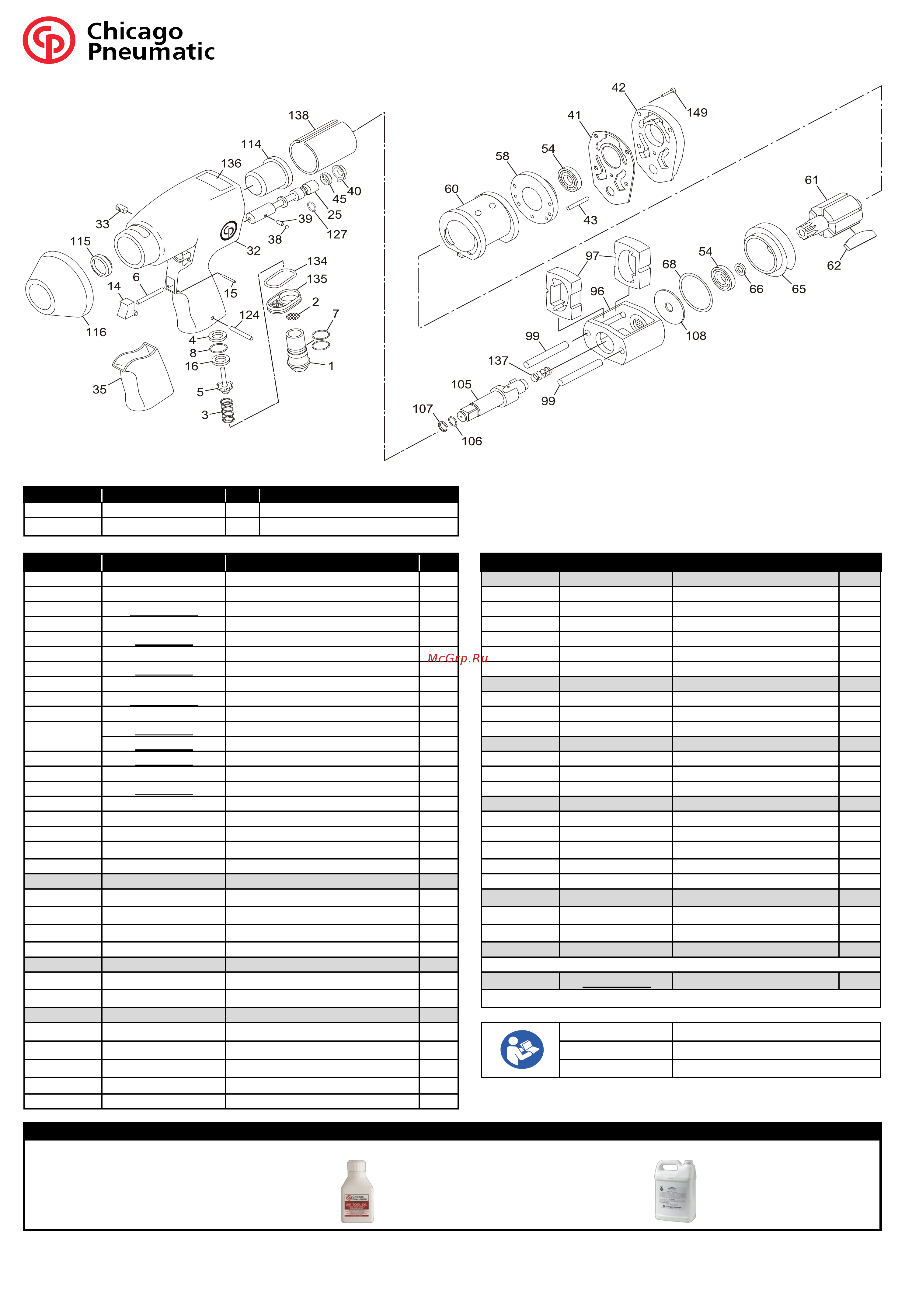

CP749 & CP749-2 Series

1/2" Impact Wrench

Model E

Assembly Instructions

Item # Tightening torque Dir. Glue / comment

149 - 32 4.8 ft.lb - 6.5 N.m P

33 - 32 3.7 ft.lb - 5 N.m P

Index No Part No Qty Index No Part No Description Qty

32 CA148615 Hsg-Motor 1 D 8940168244 Reverse Valve Kit

35 8940158432 Handle-cover 1 25 Valve-Reverse 1

41 8940158633 Gasket motor housing 1 38 Ball Steel 1

42 8940158632 Cover-Motor Housing 1 39 CA147021 Spring-Detent 1

60 CA148607 Liner 1 40 Lever Regulator 1

61 CA148606 Rotor 1 45 Spacer 1

62 CA148605 Set-Rotor Blade (set of 6) 1 127 O-Ring 1

96 CA155733 Cage-Clutch 1 E 8940168245 Trigger Kit

97 8940173354 Set-Dog-Clutch (set of 2) 1 6 Pin Throttle 1

99 8940173355 Set-Pin-Clutch (set of 2) 1 14 Trigger 1

CA148609 Anvil CP749 (incl. 106, 107) 1 15 Pin Roll 1

CA148629 Anvil CP749-2 (incl. 106, 107) 1 F 8940173357 Rear End Plate kit

108 CA145569 Washer-Rear Clutch 1 43 Pin-Dowel 1

114 CA148611 Bushing-Clutch 1 54 C066342 Bearing-Ball 1

115 CA148608 Seal-Oil 1 58 Plate-Rear End 1

116 CA148626 Shield-Nose 1 G 8940173358 Front End Plate kit

136 CA155779 Warning Label 1 43 Pin-Dowel 1

137 CA154959 Spring-Clutch 1 54 C066342 Bearing-Ball 1

138 CA154960

Sleeve-Steel 1 65 Plate-Front End 1

149 8940173356 Set-Screw-Washer (set of 4) 2 66 Seal-Oil 1

A 8940168242 Inlet Kit 68 O-ring 1

1 Bushing-Air Inlet 1 H 8940170244 Anvil-Retainer kit

2 Straine-Air 1 106 O-ring 1

7 O-Ring 2 107 Retainer-Socket 1

124 Pin Roll 1 O 8940173361 SMALL PARTS KIT

B 8940173359 Exhaust KIT

134 Gasket Exhaust Deflector 1 P 8940158635 TUNE UP KIT

135 Deflector-Exhaust 1

C 8940168243 Throttle Kit

3 Spring Throttle 1 6159948710

4 Spacer 1 CA155269

5 Valve Throttle 1 CA155779

8 O-Ring 1

16 Seat Throttle 1

Recommended Accessories

Clutch Oil

Protecto-lube Oil

Airoilene Oil

(for clutch lubrication)

(for cleaning motor parts)

(for air lubrication)

CA149661 (4 oz - 0.12 L)

P089507 (1 gal - 3.8 L)

CA000046 (20 oz - 0.59 L)

Spare parts without part number are not sold separately. High wear parts are underlined.

08/2015

8940169115 rev: 02

1/1

Safety instructions

105

Operator's Manual

Warning Label

Description

SAE #30

3/4 oz. (22ml) of oil in clutch

Incl. Index No. 7, 8, 41, 62, 66, 68, 106, 107, 115, 127, 134

Incl. 2, 15, 33, 38, 39, 43, 124
