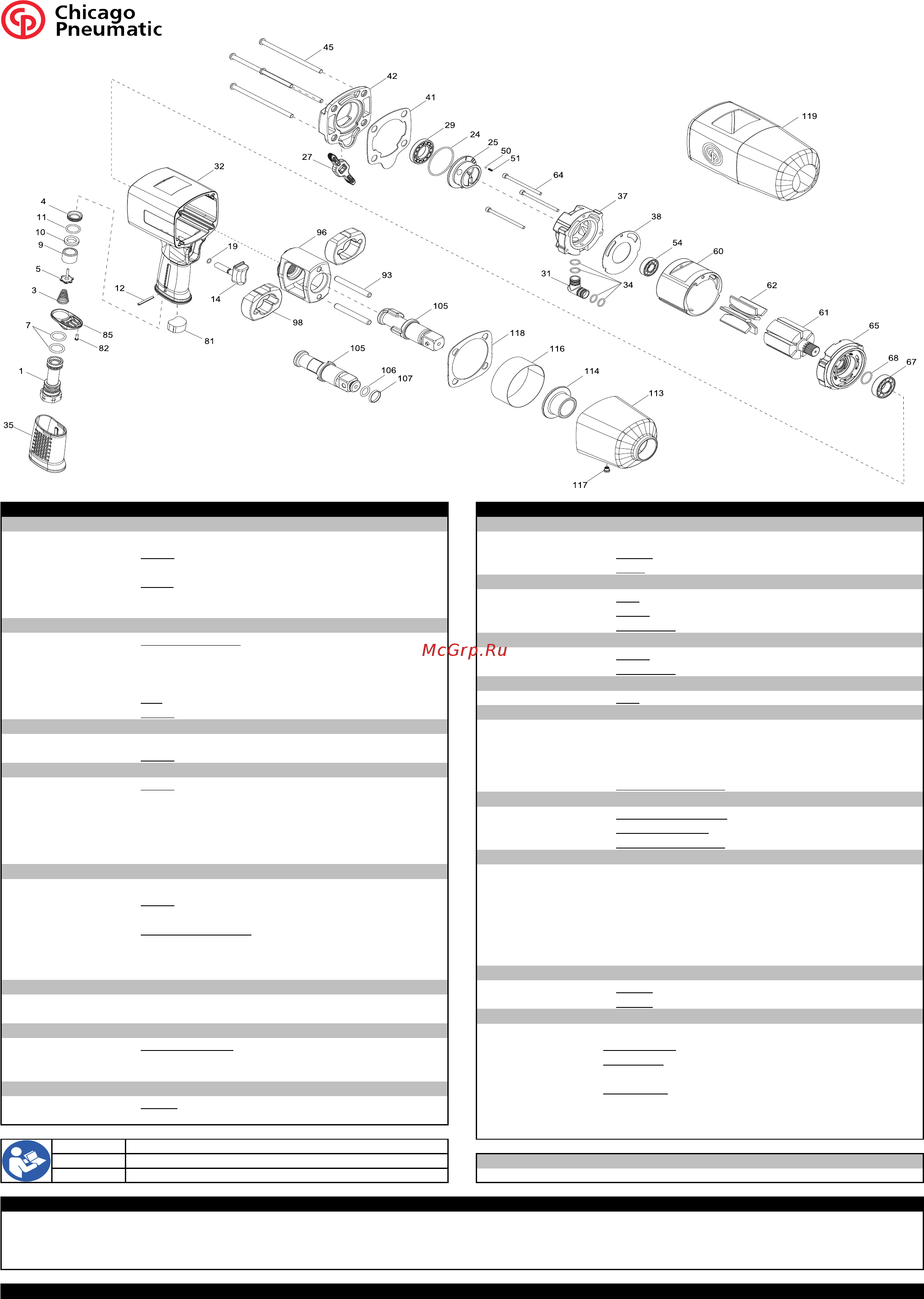

CP8272-D, CP8272-P Series

Impact Wrench 3/4"

Item Part No Description Qty. Item Part No Description Qty.

A 2050557173 AIR INLET KIT I 2050557253 MOTOR FRONT END ASSEMBLY

1 Inlet Bushing 1 65 Plate-Front End 1

7 O-Ring 2 67 Bearing 1

12 Pin 1 68 O ring 1

81 Muffler 1 J1 8940168682 3/4"(D) ANVIL ASSEMBLY CP8272-D

82 Tap Bolt 1 105 Anvil 1

85 Exhaust-Deflector 1 106 O-Ring 1

B 2050557183 THROTTLE VALVE KIT 107 Friction Ring 1

3 Spring-Throttle Valve 1 J1.1 8940168715 SOCKET RETAINING KIT - 3/4" CP8272-D

4 Insert Bushing 1 106 O-Ring 5

5 Valve-Throttle 1 107 Friction Ring 5

9 Bushing 1 J2 2050557283 3/4"(P) ANVIL ASSEMBLY CP8272-P

10 2050524593 Seal 1 105 Anvil 1

11 O-Ring 1 K 2050559233 CLUTCH HOUSING ASSEMBLY

C 2050557193 TRIGGER KIT 113 Clutch Housing (Al) 1

14 Lever-Throttle 1 114 Bushing-Clutch Housing 1

19 O-Ring 1 116 Steel Ring 1

D 2050557203 REVERSE / REGULATOR VALVE KIT 117 Grease Fitting 1

24 O-Ring 1 118 Gasket-Clutch Housing 1

25 Reverse Valve 1 L 2050557293 GASKET KIT

27 Lever-Reverse Valve 1 38 Gasket-Regulator Base 1

29 Rear Gasket 1 41 Gasket-Rear Cover 1

50 Steel Ball 1 118 Gasket-Clutch Housing 1

51 Spring 1 M 2050557303 SMALL PARTS KIT

E 2050557213 REGULATOR BASE KIT 12 Pin 1

31 Inlet 1 29 Rear Gasket 1

34 O-Ring 4 45 Screw 4

37 Regulator Base 1 50 Steel Ball 1

38 Gasket-Regulator Base 1 51 Spring 1

50 Steel Ball 1 64 Screw 3

51 Spring 1 82 Tap Bolt 1

64 Screw 3 N 8940169896 BALL BEARING KIT

F 2050557223 MOTOR HOUSING ASSEMBLY 54 Bearing 1

32 Housing-Motor 1 67 Bearing 1

35 Rubber Grip 1 OTHER PARTS AND SETS

G 2050557233 REAR COVER KIT 61 2050524473 Rotor 1

41 Gasket-Rear Cover 1 62 2050524483 Blade (set of 6) 1

42 Rear Cover 1 93 2050524343 Pin (set of 2) 1

45 Screw 4 96 2050524363 Cage 1

H 2050557243 MOTOR REAR END ASSEMBLY 98 8940168685 Dog (set of 2) 1

54 Bearing 1 119 2050559193 Protective cover 1

60 Liner 1 - 2050557593 Nameplate / warning label CP8272-D 1

- 2050557603 Nameplate / warning label CP8272-P 1

2050524683 OPERATOR'S MANUAL

2050557003 CE DECLARATION OF CONFORMITY 2050557343 TUNE UP KIT

6159948710 SAFETY INSTRUCTIONS 7, 10, 11, 19, 24, 34, 38, 41, 62 & 118

Recommended accessories

Hose whip Hose kit (incl. EasyFlow coupling) Nipple FRL kit (incl. EasyFlow coupling)

BSP (EURO 7.6mm) 6158112640 6153980575 6158105920 6153980375

NPT CA049271 6153980615 6158105780 6153980405

NPT (Asia 7.5mm) CA049271 6153980665 6158106850 6153980435

Spare parts without part number are not sold separately. High wear parts are underlined. Contact us at www.cp.com 2050524693 Rev 07
