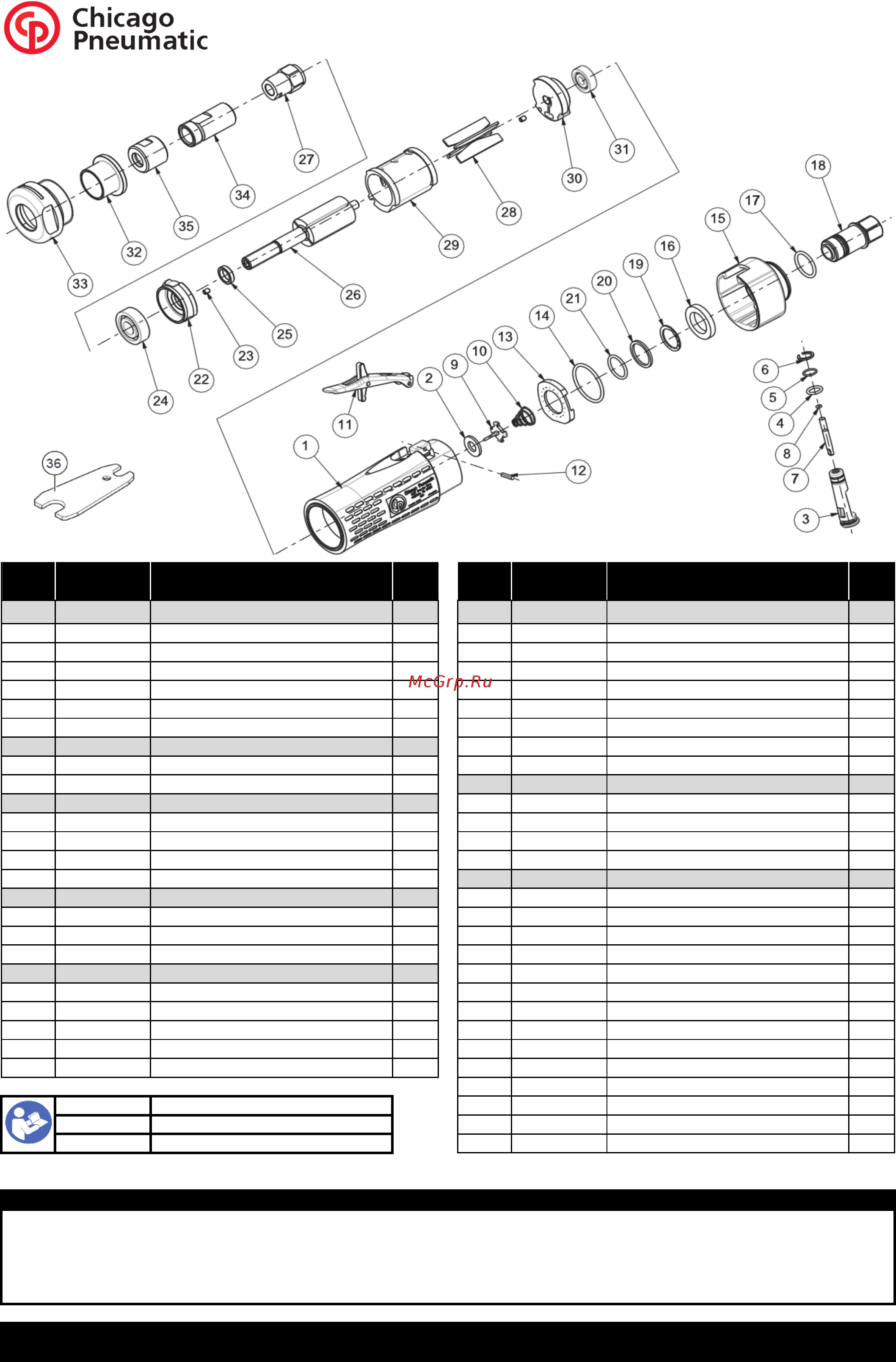

CP3000-4..R Series

Die-grinder

Index

Part

Ref

Description Qty

Index

Part

Ref

Description Qty

A 2050547823 REGULATOR ASSEMBLY F 2050546413 SMALL PARTS KIT

3 REGULATOR 1 6 SPRING RING WR9 1

4 O-RING 8.1x1.6 1 8 O-RING 2x1 1

5 O-RING 8x1 1 12 NEEDLE 2.5x11.8 1

6 SPRING RING WR9 1 14 O-RING 27x2 1

7 VALVE STEM 1 17 O-RING17x2 1

8 O-RING 2x1 1 19 RING 1

B 2050546343 VALVE KIT

20 SPACER 1

TIP VALVE 1 21 O-RING 15.6x1.78 1

10 SPRING 1

2050547863 TUNE-UP KIT CP3000-4.., CP3030-4..

C 2050547893 FRONT PLATE ASSEMBLY

2 SEAL 1

22 FRONT PLATE 1 16 FELT 1

23 PIN SPRING 3x4 1 28 2050547793 BLADES (SET OF 4) 1

24 6157580520 BEARING 10x26x8 1 22 PAPER GASKET 1

WASHER 1

D 2050547843 REAR PLATE ASSEMBLY

1 2050547813 HANDLE ASSY (incl. Part # 15) 1

23 PIN SPRING 3x4 1 11 2050541493 SAFETY LEVER 1

30 REAR PLATE 1 13 6155740750 AIR CONTROL RING 15 000 RPM 1

31 6157581390 BEARING 6x19x6 626ZZ 1 6155740700 AIR CONTROL RING 18 000 RPM 1

E 2050547853 MOTOR ASSEMBLY

6155740710 AIR CONTROL RING 20 000 RPM 1

C 2050547893 FRONT PLATE ASSEMBLY 1 6155740730 AIR CONTROL RING 24 000 RPM 1

D 2050547843 REAR PLATE ASSEMBLY 1 15 REAR CAP 1

26 6154261220 ROTOR 1 18 2050542533 INLET ASSY 1

28 2050547793 BLADES (SET OF 4) 1 27 6156080520 ROTOR NUT 1

29 6154001490 CYLINDER 1 32 6154600420 BLOCK PLATE 1

33 6156731420 COVER 1

2050544623 EC declaration 34 6155260630 COLLET HOLDER 1/4" SIAL 200 1

6159948750 Safety instructions 35 6156071540 COLLET NUT 1

2050543813 Operator's manual 36 2050548193 SPANNER 2

Recommended collets

1/8” (2,4 to 3,2mm) 200 series 6155260610

2-1/4" (5,2 to 6mm) 200 series 6155260620

1/4” (5,55 to 6,35mm) 200 series (included) 6155260630

5/16" (7,2 to 8mm) 200 series 6155260640

3/8" (8,7 to 9,5mm) 200 series 6155260650

2050548083 rev. 2

Spare parts without part number are not sold separately
