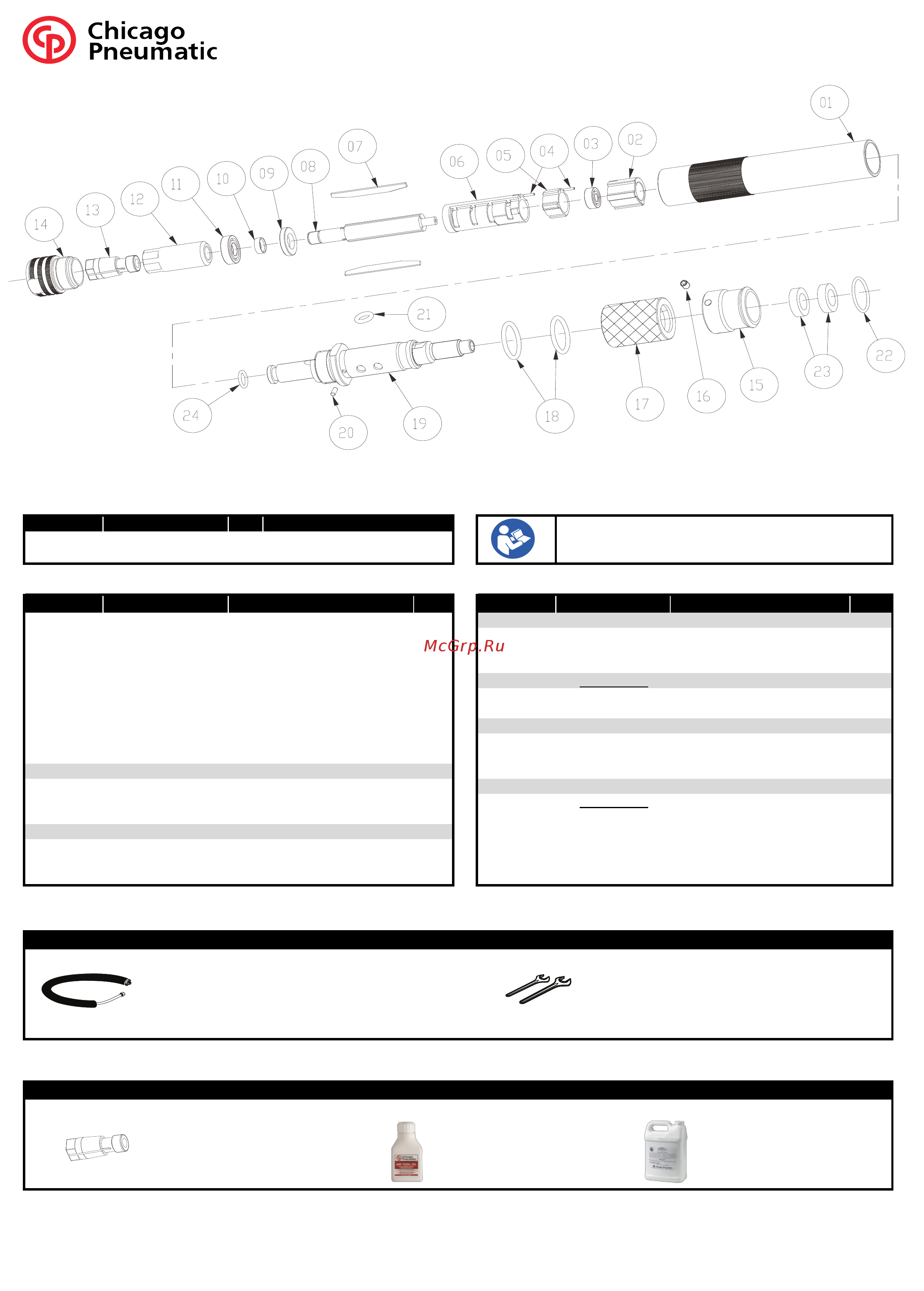

CP3000-600CR

PENCIL GRINDER

Assembly Instructions

Item # Tightening torque Dir. Glue / comment

12 - 08 5 ft.lb - 7 N.m P

01 - 19 6 ft.lb - 8 N.m P

Index No Part No Description Qty Index No Part No Qty

1 2050548513 1 C 2050548453 Rear Plate Kit

2 2050548523 1 9 Cylinder Lower Plate 1

6 2050548593 Cylinder 1 10 Adjusting Collar 1

8 2050548573 Rotor 1 11 Ball Bearing 1

12 2050548533 Chuck Body 1 D 2050548463 Bearing Kit

2050548553 Collet 1/8" 1 3 Ball Bearing 1

2050548563 Collet 3mm 1 11 Ball Bearing 1

14 2050548543 Spindle Bearing Cover 1 F 2050548503 Small Parts Kit

19 2050548603 Throttle Valve 1 4 Pin 2

Not shown 5412060277 Warning Label 1 16 Set Screw 3

A 2050548433 Rear Housing Kit 20 Needle Roller 1

15 Exhaust Hose Joint 1 G 2050548613 Tune-Up Kit CP3000-600CR

16 Set Screw 3 7 2050548483 Blades Kit (set of 3) 1

17 Throttle Handle 1 18 O-Ring 2

B 2050548443 Upper Plate Kit 21 O-Ring 1

3 Ball Bearing 1 22 O-Ring 1

4 Pin 2 23 Muffler Pad 2

5 Cylinder Upper Plate 1 24 O-Ring 1

Recommended Accessories

Protecto-lube Oil Airoilene Oil

Collet (for cleaning motor parts) (for air lubrication)

2050548553 (1/8")

CA149661 (4 oz - 0.12l) P089507 (1 gal - 3.8l)

2050548563 (3mm) CA000046 (20 oz - 0.59 l)

Description

2050548473

Wrench Kit (8mm & 9mm open wrench)

2050548493

Hose Kit (incl. Inlet hose & exhaust hose)

Housing (engraved)

Bearing Cover

6159948750

2050542233

Safety Instructions

Operator's Manual

Spare parts without part number are not sold separately. High wear parts are underlined.

12/2013

2050542253 rev: 02

1/1

Accessories Included
