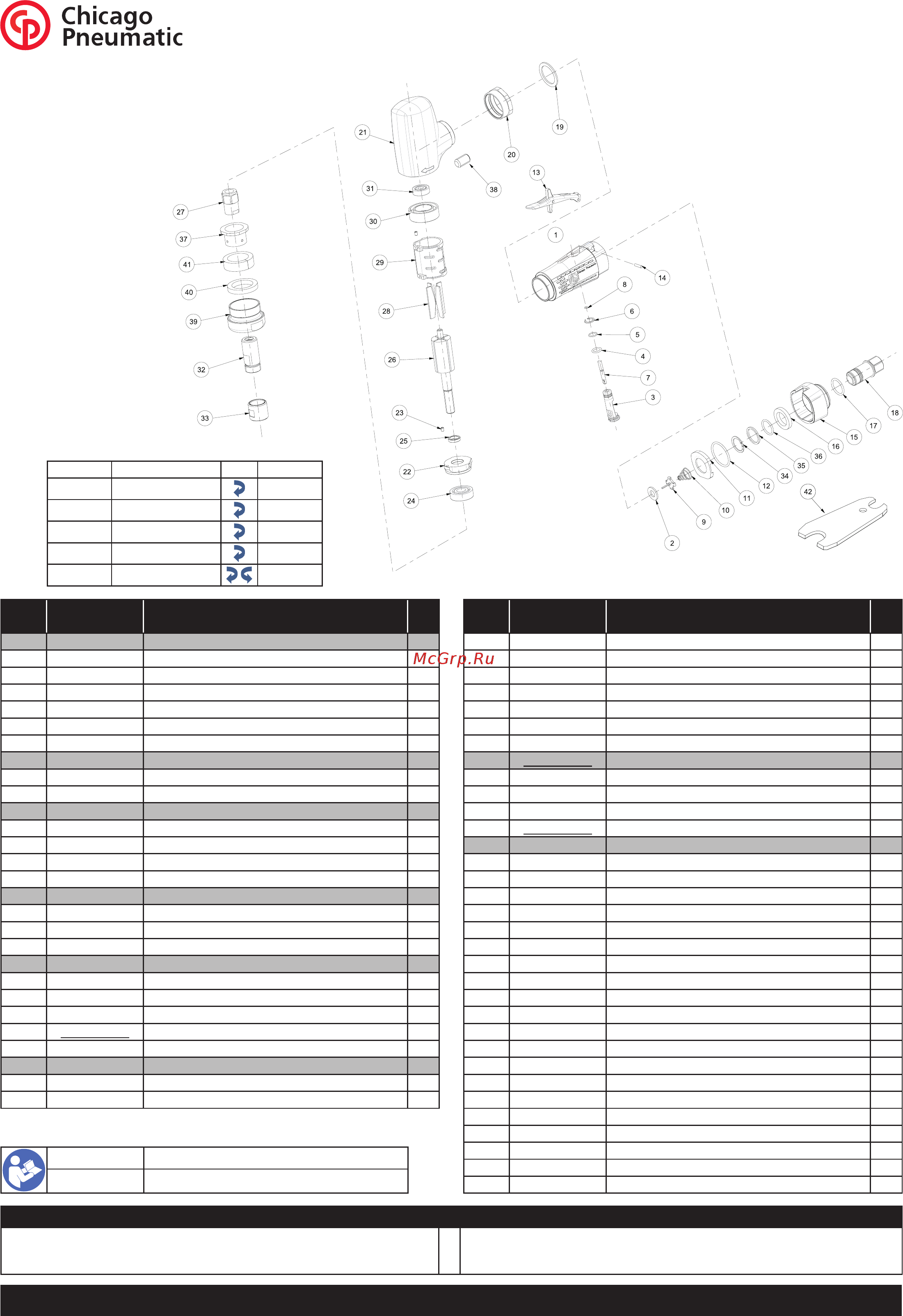

CP3030-4..F Series

Die-grinder

Index

No

Part

Ref

Description Qty

A 6154600400 REGULATOR ASSEMBLY

3 REGULATOR 1

4 O-RING 8.1x1.6 1

5 O-RING 8x1 1

6 SPRING RING WR9 1

7 VALVE STEM 1

8 O-RING 2x1 1

B 2050546343 VALVE KIT

9 TIP VALVE 1

10 SPRING 1

C 2050547893 FRONT PLATE ASSEMBLY

22 FRONT PLATE 1

23 PIN SPRING 3x4 1

24 6157580520 BEARING 10x26x8 1

25 WASHER 1

D 2050547873 REAR PLATE ASSEMBLY

23 PIN SPRING 3x4 1

30 REAR PLATE 1

31 6157581390 BEARING 6x19x6 1

E 2050547883 MOTOR ASSEMBLY

C 2050547893 FRONT PLATE ASSEMBLY 1

D 2050547873 REAR PLATE ASSEMBLY 1

26 6154261220 ROTOR 1

28

2050547793 BLADES (SET OF 4) 1

29 6154001490 CYLINDER 1

F 2050546413 SMALL PARTS KIT

6 SPRING RING WR9 1

8 O-RING 2x1 1

Index

No

Part

Ref

Description Qty

12 O-RING 27x2 1

14 NEEDLE 2.5x11.8 1

17 O-RING 17x2 1

O-RING 10.5x1.5 1

34 6156880560 RING 1

35 SPACER 1

36 O-RING 15.6x1.78 1

G

2050547863 TUNE-UP KIT CP3000-4.., CP3030-4..

2 SEAL 1

16 FELT 1

19 6156561910 GASKETS (x2) 1

28

2050547793 BLADES (SET OF 4) 1

1 2050547773 HANDLE ASSY (incl. Part # 15) 1

11 6159700940 PLATE 1

13 2050541493 SAFETY LEVER 1

15 REAR CAP 1

18 2050542533 INLET ASSY 1

20 6157301890 NUT 1

21 6155653220 MOTOR HOUSING 1

27 6156080520 ROTOR NUT 1

32 6155230230 COLLET HOLDER SIAL 200 1

33 6156071540 COLLET NUT SIAL 200 1

37 2050549993 AIR CONTROL RING 18 000RPM 1

2050550003 AIR CONTROL RING 20 000RPM 1

2050550013 AIR CONTROL RING 24 000RPM 1

38 6156190330 SCREW 1

39 2050549043 COVER 7° 400W 1

40 2050549963 RING FELT 1

41 2050549973 FELT 1

42 2050548193 SPANNER 2

6155260630 COLLET 1/4" 1

6158727980 WARNING STICKER 1

6159948750 Safety instructions

2050549333 Operator's manual

Recommended collets

1/8” (2,4 to 3,2mm) 200 series

2-1/4" (5,2 to 6mm) 200 series

1/4” (5,55 to 6,35mm) 200 series

6155260610

6155260620

6155260630

5/16" (7,2 to 8mm) 200 series

3/8" (8,7 to 9,5mm) 200 series

6155260640

6155260650

Spare parts without part number are not sold separately

2050549303 rev. 2

Assembly instructions

Item # Tightening torque Dir. Glue

01 - 18 7,5 ft.lb - 10 Nm

Loctite 222

26 - 27 7,5 ft.lb - 10 Nm

Loctite 222

26 - 32 7,5 ft.lb - 10 Nm

21 - 39 11 ft.lb - 15 Nm Loctite 222

1 - 20 - 21 26 ft.lb - 35 Nm

Loctite 243
