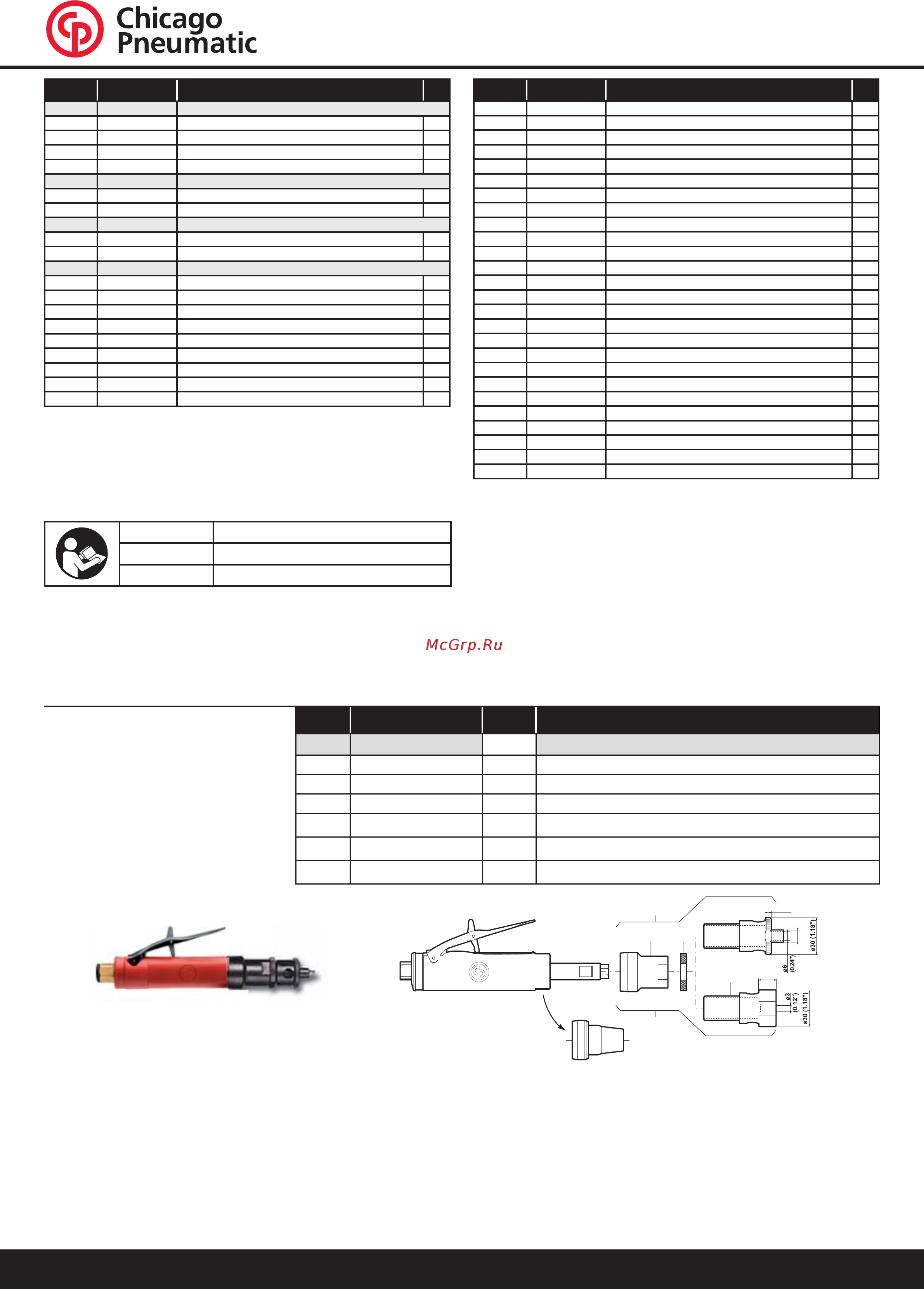

CP3109-.. & CP3119-.. series
Die grinder
Spare parts without part number are not sold separatly
2 / 2
2050541113 rev. 6
Item Part No Description Qty
M 2050541393 EXTENSION SERVICE KIT CP3119-12EL & EXL
44 - Ball bearing 1
50 - Cage 1
51 - Needle 18
52 - Plug 1
N 2050541603 COUPLING KIT
41 - Coupling fork 2
42 - Coupling 1
O 2050541683 COLLET HOLDER KIT
37 - Collet holder 1
39 - Collet nut 1
45 566.404 Housing 1
43 566.434 Housing 1
58 501.96 Shaft 3/8" UNF 1
47 542.121 Shaft 1
49 542.122 Shaft 1
54 566.432 Housing 1
58 501.96 Shaft 3/8" UNF 1
15 6153962340 Motor housing 1
17 6154570590 Governor 28K (CP3109-18 / CP3109-18ES) 1
Item Part No Description Qty
17 457.19 Governor 24K (CP3109-24/ CP3109-24ES) 1
17 457.20 Governor 19K (CP3109-19/ CP3109-2819) 1
17 457.21 Governor 15K (CP3119-15/ CP3119-15ES) 1
17 457.22 Governor 12K (CP3119-12/ CP3119-12ES) 1
17 457.23 Governor 18K (CP3119-18/ CP3119-18ES) 1
17 457.24 Governor 22K (CP3119-22/ CP3119-22ES) 1
28 645.132 Spacer 1
28 645.136 Spacer (CP3119-12EL/ CP3119-12ExL) 1
31 666.146 Spacer 1
32 645.133 Washer 1
33 672.130 Cap (CP3109-XX/ CP3119-XX) 1
38 6155260630 Serie 200 resilient collet 1/4"
1
40 666.145 Washer
35 6155260490 CNOMO Collet Ø6mm
36 6156071360 Nut Collet
34 523.18 Chuck
1
46 579.50 Tube (CP3119-12EL)
1
46 579.51 Tube (CP3119-12EXL)
1
48 580.17 Shaft (CP3119-12EL)
1
48 580.18 Shaft (CP3119-12EXL)
1
80 6158751130 Exhaust Hose (L= 60" - 1,5m)
1
81 6158734150 Hose clamp
1
82 6157040170 Air hose nipple for 3/8" ID hose
1
1
1
83 6158010050 Flat wrench 14mm
84 6158010760 Flat wrench 3/4" (19mm)
101 6158726110 Warning label
1
2050541043 Operator’s manual
6159948750 Safety instructions
2050541103 EC declaration
1
1
1
Item Part no. Qty Description
6153962890
1
Complete kit
201 6155952450
1
Flange
202 6156071450
1
Adjusting Nut
203 6155421322
1
Router nose (not including : circlips & bearing)
- 6156870560
1
Circlip
- 6157581270
1
Bearing
204 6155421310
1
Machined routing guide
CP3119 CNOMO
Machined Routing kit
ø10
(0.39")
5 (0.20")
15
(0.59")
1 2
4
A
B
5
A
5.5 (0.22")1/2" – 20 thd
