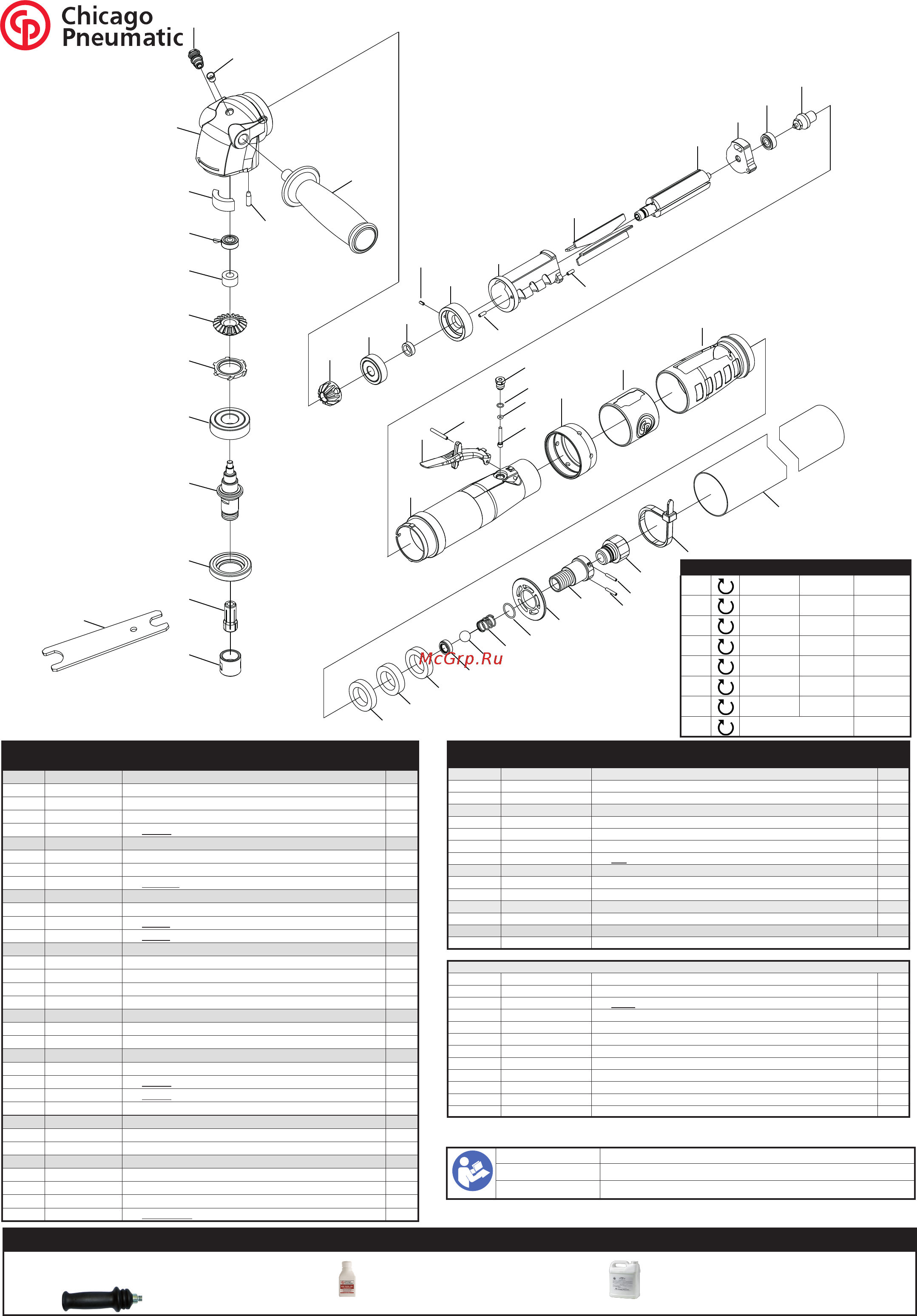

Please refer to catalog for further accessories. Contact us at www.cp.com.

Spare parts without part number are not sold separately.

6159924410 Rev. 03 - 26/03/2018

Item

CP Part No.

Description Q’ty

A 6153995090 Air Inlet Kit

1 Air Inlet 1

2 Spring Pin 2

3 Bushing 1

5 O-Ring 1

B 6153995100 Throttle Valve Kit

6 Spring 1

7 Steel Ball 1

8 Ball Seat 1

C 6153995110 Exhaust Kit

4 Exhaust Deector 1

9 Muer 2

10 Muer 1

D 6153995120 Motor Housing

11 Body Sleeve 1

12 Front Sleeve 1

13 Nut 1

20 Housing 1

E 8940173447 Lever Kit

18 Spring Pin 1

19 Lever 1

F 6153995140 Stem Kit

14 Stem Valve 1

15 O-Ring 1

16 O-Ring 1

17 Bushing 1

G 6153995150 Rear End Plate Assy

22 6157580940 Ball Bearing 1

23 Rear End Plate 1

H 6153995160 Front End Plate Assy

28 Front End Plate 1

29 Spring Pin 1

30 Spacer 1

31 0502109224 Ball Bearing 1

Item

CP Part No.

Description Q’ty

I 6153995170 Bevel Gear Kit

32 Pinion - Motor 1

40 Gear - Spindle 1

J 6153995180 Gear Housing Kit

34 Greaser 1

35 Angle Head 1

36 Pin 1

37 Felt 1

K 6153995230 Exhaust Hose Kit

44 Cable Tie 1

45 Exhaust Hose 1

L 6153995250 Small Parts Kit

Include 2 (X2), 7, 18, 30, 27 (X2), 29, 34

6153995300 Tune Up Kit

Include 5, 8, 9 (X2), 10, 15, 16, 25 (X4), 37, 39

Other parts & sets

21 6154570750 Governor 18k 1

24 6154270150 Rotor 1

25 6153995260 Blade (Set Of 4) 1

26 6153995270 Cylinder (Incl. Item #27) 1

33 6153974060 Stop Finger 1

38 6157580940 Ball Bearing 1

41 6155571010 Deector 1

42 6157581200 Ball Bearing 1

43 2050524063 Side Handle 1

46 6153993700 Spindle - collet holder 1

47 6156740000 Lock Nut 1

48 6155260630 Collet 1/4" 1

CP3550 series

Model C

Die Grinders

6158719270 Warning Label

6159924380 Operator’s manual

6159948750 Safety Instructions

Item Tightening torque Bond

33 / 35

2.7-3.3 N.m 2-2.4 ft.lbs Loctite 222

17 / 20

2.7-3.3 N.m 2-2.4 ft.lbs Loctite 222

21 / 24

2.7-3.3 N.m 2-2.4 ft.lbs Loctite 222

3 / 20

27-33 N.m 20-24 ft.lbs Loctite 243

13 / 35

36-44 N.m 26-32 ft.lbs Loctite 243

49 / 35

54-66 N.m 40-49 ft.lbs Loctite 243

32 / 24

27-33 N.m 20-24 ft.lbs /

49 / 46

Finger-tight

Recommended accessories

Vibration damping side handle

6155760780

Protecto-lube Oil

(to clean motor parts)

CA149661 (4 oz - 0.12 l)

CA000046 (20 oz - 0.59 l)

Airoilene Oil

(for air lubrication)

P089507 (1 gal - 3.8 l)

Bevel gear : Use Mobilux (2g) or equivalent grease (2g).
