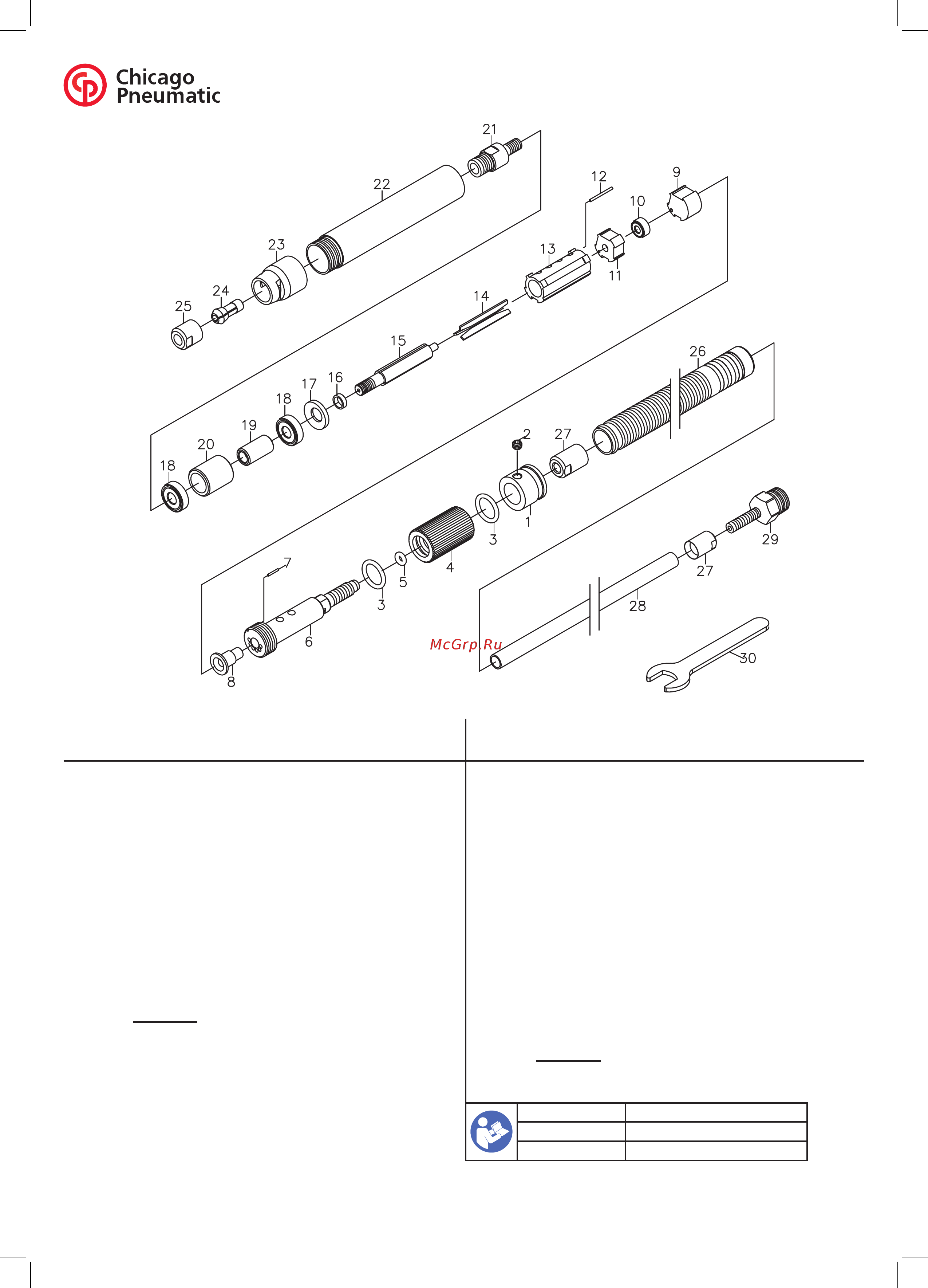

CP9104Q

Pencil grinder

Index

No.

Part

No.

Description Qty.

Index

No.

Part

No.

Description Qty.

A 8940168859 Trigger Kit D 8940168862 Collet holder kit

1 Rear end holder 1 21 Collet foundation 1

2 Screw 1 25 Clamping nut 1

3 O-ring 1 E 8940168863 housing kit

4 Twi st Trigger 1 22 Sleeve 1

5 O-ring 1 23 Front cover 1

6 Hose plug 1 F 8940168864 Hose Kit

7 Pin 1 26 Muffer tube 1

8 Plug 1 27 Hose ring 2

B 8940168860 Motor kit 28 2050486533 Air hose with foam 1

9 Intake plate 1 29 Inlet connector 1

10 Ball bearing 1 30 2050486553 Spanner 1

11 Bearing plate 1 100 468093 Warning label 1

12 Pin 1 24 2050486503 Collet 3mm 1

13 Cylinder 1 24 2050507873 Collet 1/8" 1

14 2050486453 Rotor blade (3) 1 2050507883 Collet 2.4mm (optional) 1

15 Rotor 1

16 Spacer 1 2050506623 Tune-up Kit

17 Lateral disc 1

(Index Nos. 3, 5, 7, 10,12,14, 18,27)

18 Ball bearing 2

C 8940168861 Spacer Bearing Kit

6159948750 SAFETY INSTRUCTIONS

19 Interior bearing 1

8940168669 OPERATOR'S MANUAL

20 Outer bearing 1

8940168619 CE DECLARATION

Spare parts without part number are not sold separately

07/10

8940168671
