Gazer PA45R [12/48] Installation recommendations

System installation order:

• Mark and make mounting bores for the sensors in the rear bumper of the car.

• Install the sensors in the bumper.

• Install the central unit.

• Connect the sensors to the basic wiring and continue the wiring to the location of the central unit.

• Connect the power to the central unit.

• Route the speaker extension cable to the speaker position.

• Install the speaker.

Sensors installations:

• The sensors are recommended to be installed in proper locations. Most carmakers are marking where to drill the sensor holes on

the back of the bumper.

• If the marking is missing or the installation in proper locations is impossible for some reason, use the marking ruler that comes

in basic equipment.

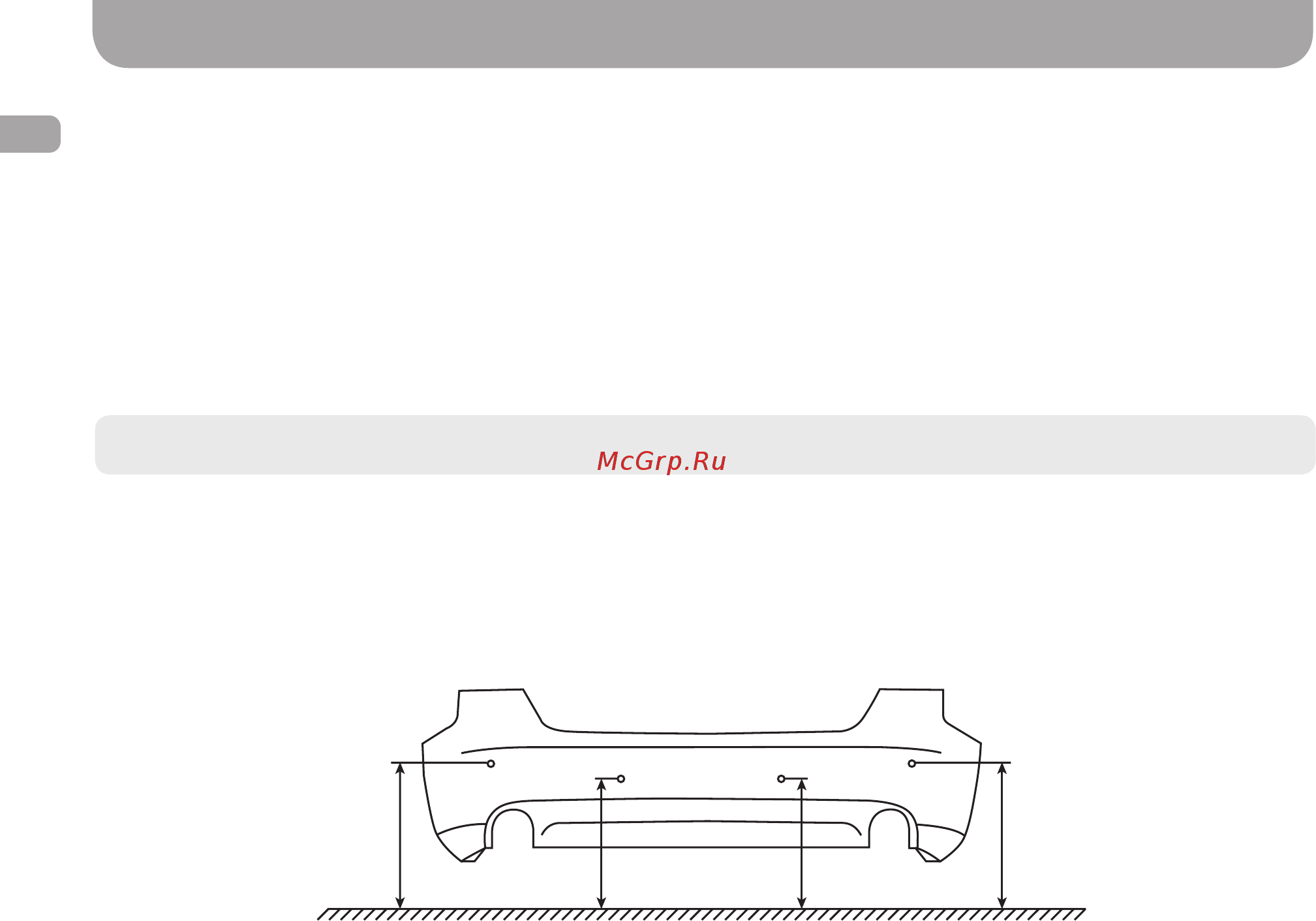

• With standard settings, the height of the sensors is 50-60 cm. The height of the installation can also be 40-50 cm or 60-70 cm,

these parameters can be adjusted with an optional programmer Gazer PAC30 and specialized software, separately for each sensor.

Installation recommendations

Important: Do not install the sensors in a metal bumper, this will lead to the system shutdown.
