Recommended Accessories

Protecto-lub Oil (for cleaning motor parts) Collet

CA149661 (1 pt - 0,12l) 2050516623 1/8”Collet

CA000046 (20,8 oz. - 0,59 l) 2050484292 3mm Collet

2050495833 6mm Collet

Airoileine Oil (for air lubrication)

P0895507 (1. gal - 3,8l)

Recommended Maintenance Tools

Maintenance Wrench

CA158089 Key

Spare parts without part number are not sold separately. High wear parts are underlined.

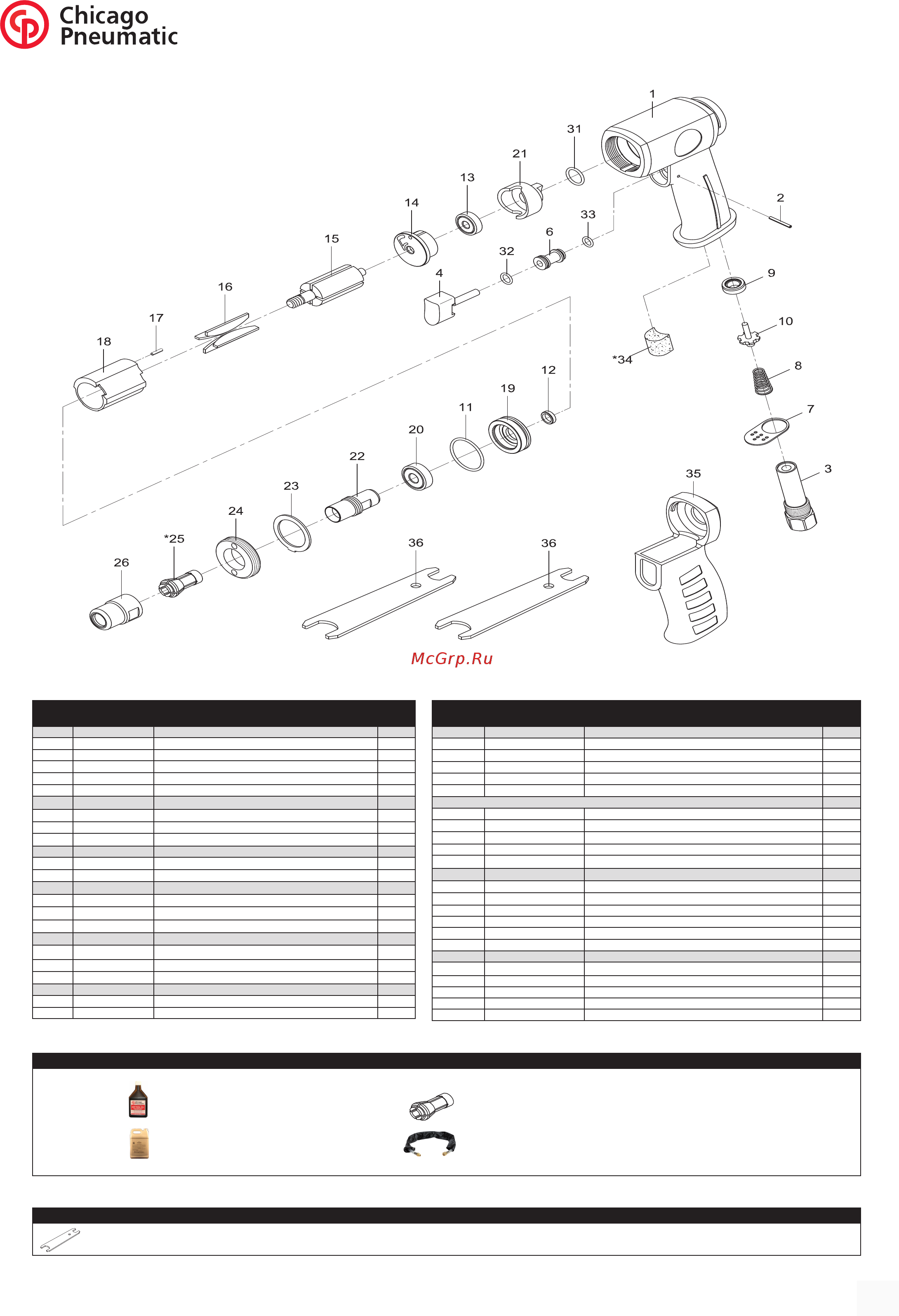

Item CP Ref Description Qty

A 8940172118 Trigger kit

2 Pin-Trigger 1

4 Trigger 1

32 O ring 1

33 O ring 1

6 Valve bushing 1

B 8940172119 Throttle kit

8 Spring-Throttle 1

9 Valve Seal 1

10 Throtle valve 1

C 8940172120 Housing motor kit

1 Housing-Motor 1

35 Cover-Handle 1

D 8940172121 Rear end plate kit

13 S039709 Bearing-Ball 626ZZ 1

14 Endplate-Rear 1

17 Pin-Spring 1

E 8940172122 Front End plate KIT CP7200-CP7202

19 End Plate (CP7200-CP7202)** 1

20 Bearing-Ball 608ZZ 1

11 O ring 1

G 8940172124 Regulator KIT

21 Regulator 1

31 O-Ring-014 1

CP9107

Series D

Die Grinder

Item CP Ref Description Qty

I 8940172291 Spindle kit CP9107

22 2050484533 Spindle 1

23 Spacer 1

24 2050486613 Motor Lock Nut 1

25 Collet 1/4" 1

Single

22 2050484533 Spindle 1

24 2050486613 Motor Lock Nut 1

15 CA158065 Rotor 1

16 CA158066 Blade-Set 1

18 CA158068 Liner 1

8940172128 Tune-up kit

11 O-Ring 1

16 Blade (Set of 4) 1

31 O-Ring-014 1

32 O ring 1

33 O ring 1

34 Mufﬂer 1

8940172129 Small part kit

26 Collet Nut 1

7 Deﬂector-Exhaust 1

2 Pin-Trigger 1

17 Pin-Spring 1

23 Space 1

12 Spacer-Rotor 1

8955000015

DUS

2050489213

Rev.07
