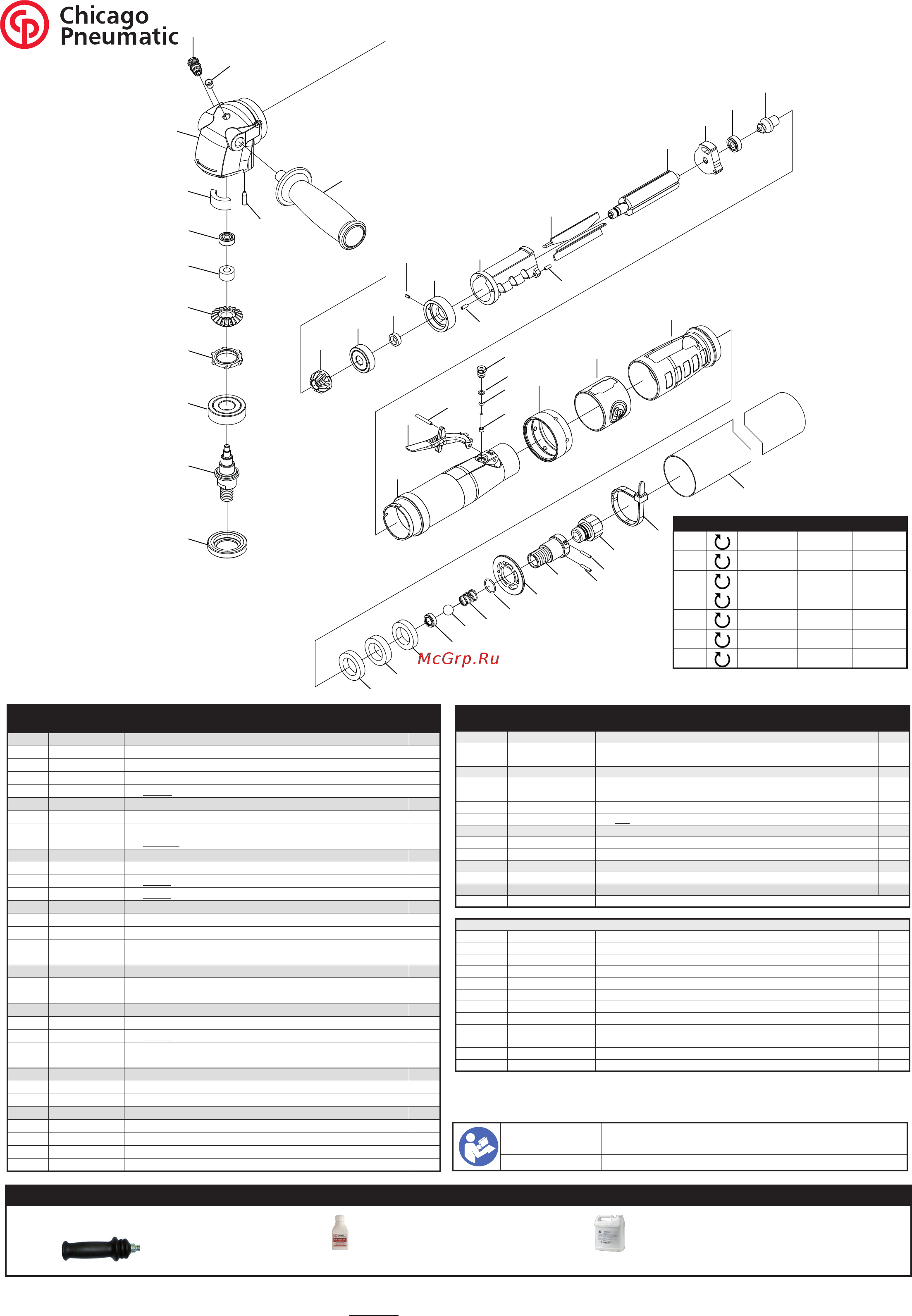

Chicago Pneumatic CP3550-120AA Схема онлайн

Chicago Pneumatic CP3550-120AA Схема онлайн
46
47
2
7
6
5
3
8
4
1
2
9
9
10
44
45
18
19
17
14
20
22
21
15
11
12
13
16
32
30
28
26
29
25
24
23
27
31
27
36
41
39
35
38
40
37
33
34
43
Contact us at www.cp.com.
Spare parts without part number are not sold separately. High wear parts are underlined.
6159924400 Rev.03 - 26/03/2018
Item
CP Part No.
Description Q’ty
A 6153995090 Air Inlet Kit
1 Air Inlet 1
2 Spring Pin 2
3 Bushing 1
5
O-Ring 1
B 6153995100 Throttle Valve Kit
6 Spring 1
7 Steel Ball 1
8
Ball Seat 1
C 6153995110 Exhaust Kit
4 Exhaust Deector 1
9
Muer 2
10
Muer 1
D 6153995120 Motor Housing
11 Body Sleeve 1
12 Front Sleeve 1
13 Nut 1
20 Housing 1
E 8940173447 Lever Kit
18 Spring Pin 1
19 Lever 1
F 6153995140 Stem Kit
14 Stem Valve 1
15
O-Ring 1
16
O-Ring 1
17 Bushing 1
G 6153995150 Rear End Plate Assy
22 6157580940 Ball Bearing 1
23 Rear End Plate 1
H 6153995160 Front End Plate Assy
28 Front End Plate 1
29 Spring Pin 1
30 Spacer 1
31 0502109224 Ball Bearing 1
Item
CP Part No.
Description Q’ty
I 6153995170 Bevel Gear Kit
32 Pinion - Motor 1
40 Gear - Spindle 1
J 6153995180 Gear Housing Kit
34 Greaser 1
35 Angle Head 1
36 Pin 1
37
Felt 1
K 6153995230 Exhaust Hose Kit
44 Cable Tie 1
45 Exhaust Hose 1
L 6153995250 Small Parts Kit
Include 2 (X2), 7, 18, 30, 27 (X2), 29, 34
6153995300 Tune Up Kit
Include 5, 8, 9 (X2), 10, 15, 16, 25 (X4), 37, 39
Other parts & sets
21 6154570750 Governor 18k 1
24 6154270150 Rotor 1
25
6153995260 Blade (Set Of 4) 1
26 6153995270 Cylinder (Incl. Item #27) 1
33 6153974060 Stop Finger 1
38 6157580940 Ball Bearing 1
41 6155571010 Deector 1
42 6157581200 Ball Bearing 1
43 2050524063 Side Handle 1
46 6155012090 Spindle M14 1
46 6155012100 Spindle 5/8" 1
47 6156740000 Lock Nut 1
CP3550 series
Model C
Angle Sanders
6158719270
Warning Label kit
6159924370 Operator’s manual
6159948770 Safety Instructions
Item Tightening torque Bond
33 / 35
2.7-3.3 N.m 2-2.4 ft.lbs Loctite 222
17 / 20
2.7-3.3 N.m 2-2.4 ft.lbs Loctite 222
21 / 24
2.7-3.3 N.m 2-2.4 ft.lbs Loctite 222
3 / 20
27-33 N.m 20-24 ft.lbs Loctite 243
13 / 35
36-44 N.m 26-32 ft.lbs Loctite 243
49 / 35
54-66 N.m 40-49 ft.lbs Loctite 243
32 / 24
27-33 N.m 20-24 ft.lbs /
Recommended accessories
Vibration damping side handle : 6155760780
Protecto-lube Oil
(to clean motor parts)
CA149661 (4 oz - 0.12 l)
CA000046 (20 oz - 0.59 l)
Airoilene Oil
(for air lubrication)
P089507 (1 gal - 3.8 l)
Bevel gear : Use Mobilux (2g) or equivalent grease (2g).
