Chicago Pneumatic CP3512 Схема онлайн

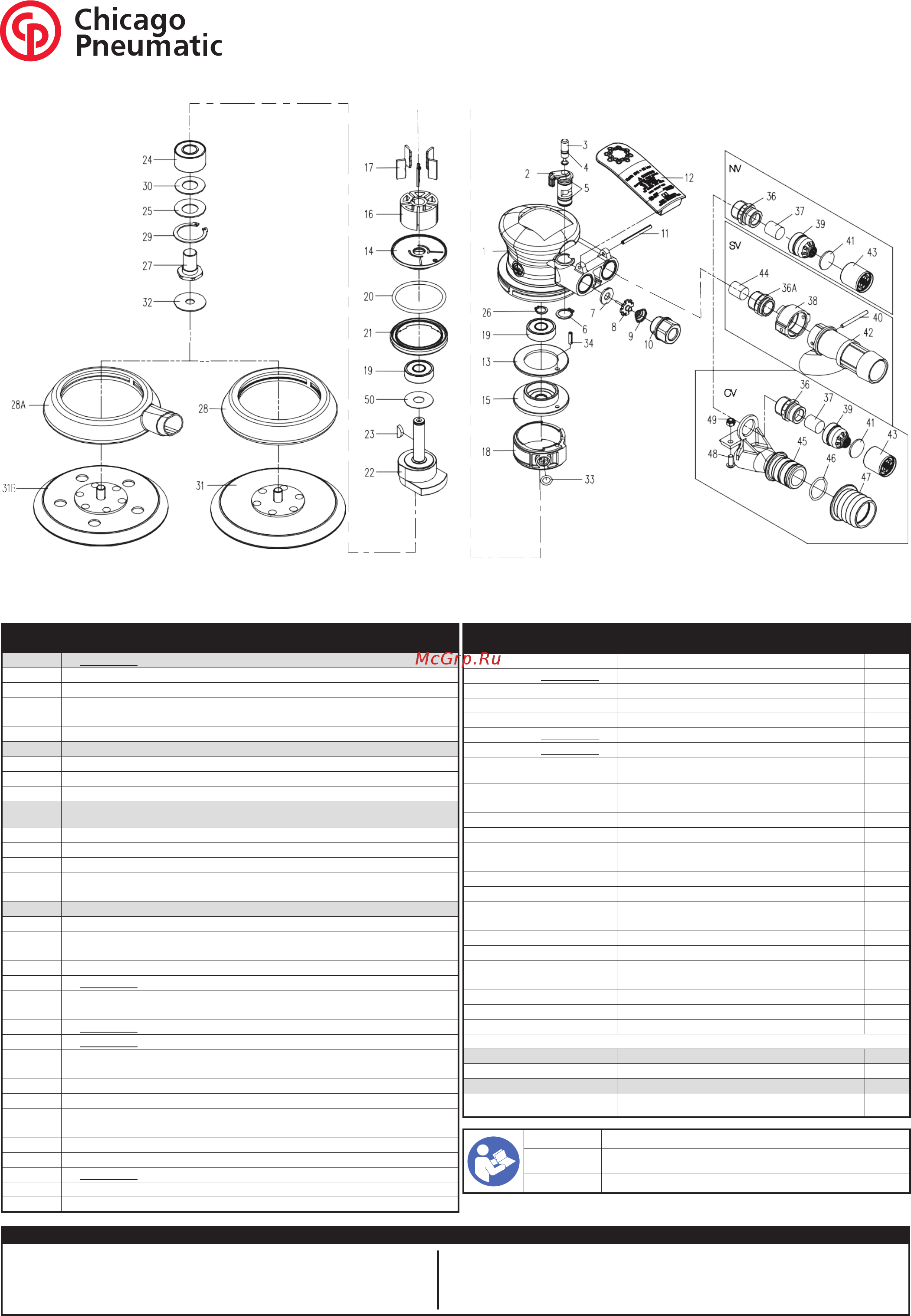

CP35 Series

Model C

5’’ (125 mm) PALM SANDERS

Item Part No. Description Qty.

A 8940168367 THROTTLE KIT

2 Regulator 1

3 Valve Stem 1

4 O-Ring 1

5 O-Ring 2

6 Retaining ring 1

B 8940168368 VALVE SEAT KIT

7 Valve seat 1

8 Tip Valve 1

9 Conical Spring 1

C 8940168369

EXHAUST KIT (FOR CP3510, CP3511, CP3514,

CP3515)

36 Muer Screw 1

37 Muer 1

39 Nozzle 1

41 Muer 1

43 Muer Cap 1

D 8940168372 ECO CHANGE MOTOR KIT

13 Front Ring 1

14 8940163414 Rear End Plate 1

15 8940163415 Front End Plate 1

16 8940163416 Rotor 1

17 8940163417 Blades set (5 pcs.) 1

18 8940163418 Cylinder 1

19 Bearing (6000ZZ) 2

20 8940163420 O-Ring 1

21 8940163421 Lock ring 1

22 8940163423 Motor Shaft Balancer 3/16" (5mm) orbital 1

23 Rotor Key 1

24 Bearing (500 IRS) 1

25 Bearing Shield 1

26 Snap Ring 1

27 8940163429 Balancer Shaft 1

29 Snap Ring 1

30 Bearing Seal 1

33 8940163435 O-Ring 1

34 Pin 1

50 Anti-dust washer 1

6159948770 Safety Instructions

8940163220 Warning label (not shown)

8940164564 Operator’s Manual

8940164563 Rev. 02

19/09/2018

Spare parts without part numbers are not sold separately - High wear part are underlined

www.cp.com

Recommended Accessories

Dust extraction kit Vaccum hose adaptator ø25 (1”) / ø28 (1-1/8”)

8940163461 (1 dust bag + dust hose) 6158044480

Dust bag set Vaccum hose adaptator ø25 (1”) / ø32 (1-1/4”)

8940163496 (5 pcs dust bag) 6153501170

Item Part No. Description Qty.

1 8940163399 Housing Assembly redcolor 1

10 8940163409 Air Inlet 1

11 8940163494 Spring Pin 1

12 8940163411 Lever 3/16" (5mm) orbital 1

31 8940166665 5"(125mm) Pad PSA w/o hole 1

8940166666 5"(125mm) Pad Hook & Loop w/o hole 1

31B 8940166667 5"(125mm) Pad PSA w/ 5 holes (for SV & CV) 1

8940166668

5"(125mm) Pad Hook & Loop w/ 5 holes (for

SV & CV)

32 8940163434 Heat Isolation Washer 1

28 8940163430 Skirt 1

28A 8940163431 Skirt (for SV & CV) 1

36A 8940163439 Muer Screw (for SV) 1

38 8940163441 Connector (for SV) 1

40 8940163438 Pin (for SV) 1

41 8940163440 Muer 1

42 8940163445 Vacuum Adapter (for SV) 1

44 8940163447 Muer (for SV) 1

45 8940163446 Vacuum Adapter (for CV) 1

46 8940163449 O-Ring (for CV) 1

47 8940163450 Revolving Connector (for CV) 1

48 8940163451 Screw (for CV) 1

49 8940163452 U nut (for CV) 1

8940163525 Pad Wrench (not shown) 1

8940163495 Dust Bag Unit (for SV) (not shown) 1

8940163497 Dust Hose (for SV) (not shown) 1

8940163459 TUNE-UP KIT

(incl. Index: 7, 17, 19, 20, 23, 26, 33, 50)

8940163460 MAINTENANCE KIT

Incl. Pad Wrench, Lock Ring Wrench, Motor

Extractor

CP35 series

'' (125mm) PALM SANDERS

CV SV

SV : Self Vacuum,CP3512 & CP3513

NV : Non Vacuum, CP3510 & CP3511

CV : Central Vacuum, CP3514 & CP3515
