09/2016

8940174737 Rev. : 01

Spare parts without part number are not sold separately - High wear parts underlined

Contact us at www.cp.com

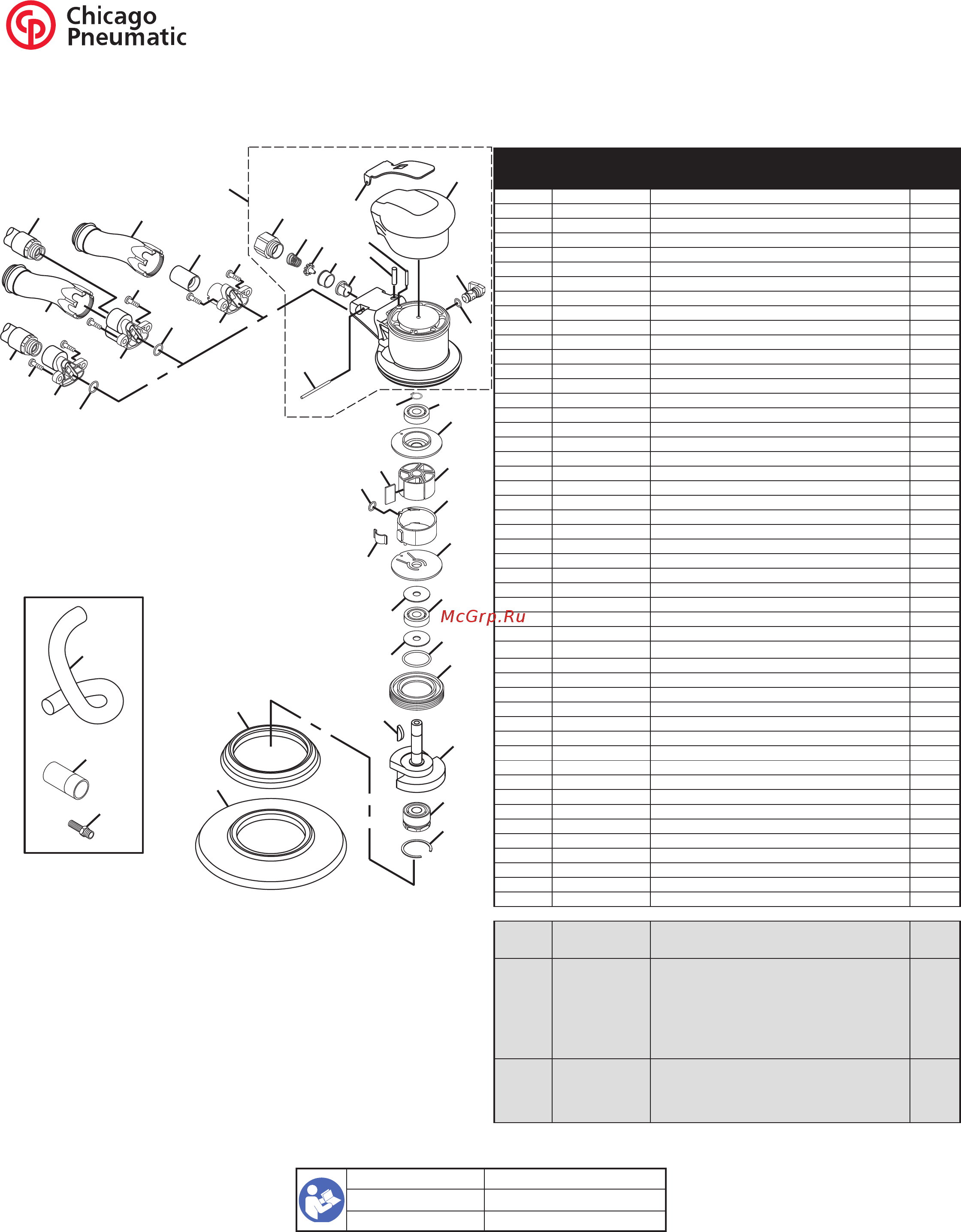

CP7220 & CP7250 SERIES

Random Orbital Sander

8940158344 Operator’s Manual

6158726870 Warning Label

6159948770 Safety Instuctions

1

2

5

6

7

8

9

10

11

12

13

14

15

16

17

19

20

21

22

23

24

25

26

22

28

29

30

31

32

33

34

41

42

CV

SV

19

42

1

2

4

3

4

4

3

3

18

38

39

58

55

Accessories

59

C

M

J

CM

MJ

CJ

CMJ

N

Index

No.

Parts No. Description Qty

1 6153071510 Collector Tube 1

2 6153962560 Silencer 1

3 6153071480 Collecter Silencer (CV) 1

6153071490 Collector Silencer (SV) 1

6153071500 Collector Silencer 1

4 6156140780 Tapping Screw 2

5 6153211910 Venturi 1

6 6157460720 Complete Adapter 1

7 6156810890 Valve Spring 1

8 6151550100 Valve 1

9 6154300220 Inlet Tube 1

10 6153211680 Valve Seat 1

11 6156371580 Roll Pin 1

12 6157900340 Valve Pin 1

13 6157900260 Pin 1

14 6153211930 Plug Valve 1

15 6156570050 O-Ring 1

16 6153212070 Lever 1

17 6153031110 Medium-Size Handle 1

18 8940158339 Motor Housing Assembly 1

19 6156540360 Dust Felt 2

20 6156880130 Circlip 1

21 6157580520 Ball Bearing 1

22 6154201370 End Plate 2

23 6154261060 Rotor 1

24 8940158347 Blade (Set of 5) 1

25 6156570040 O-Ring 1

26 6154001360 Cyclinder 1

28 6157580520 Ball Bearing 1

29 6156570180 O-Ring 1

30 6156731170 Motor Plug 1

31 6156300240 Woodruff Key 1

32 6155801370 Rotor Shaft (CP7220) 1

6155801340 Rotor Shaft (CP7250) 1

33 6153962550 Crankpin Assembly 1

34 6156890530 Retainer Ring 1

35 8940158351 PSA Pad 6" (Not Shown) 1

8940158621 PSA Pad 6" w/holes (Not Shown) 1

8940158689 Velcro Sanding Pad 1

8940158690 Velcro Sanding Pad-Vacuum 1

37 8940158352 Flat Wrench (Not Shown) 1

38 6153501020 Suction Cap, ID 6" Small 1

39 6153501180 Suction Cap, ID 6" Large (CV) 1

40 6158726920 Nameplate (Not Shown) 1

41 6155740510 Silencer (SV) 1

42 6156580860 O-Ring 1

55 6157050090 Nipple 1

58 6153501170 Vacuum hose adapter 1

59 6153962630 Hose Assembly

8940158345

Tune-Up Kit (Incl: Index Nos. 19, 20,

24, 25, 28, 29, 31, 34 & 42)

8940158346

Maintainance Kit (Incl: Items Not

Shown: 6159611730 Baseplate,

6159611640, Pin Wrench, 6159611670

Shouldered Chuck, 6159611690

Extractor, 6159611680 Chuck &

6155952020 Lever)

8940158430

Dust Extraction Kit (Incl: Items Not

Shown: Dust Bag, Clamp & Hose

Assembly)
