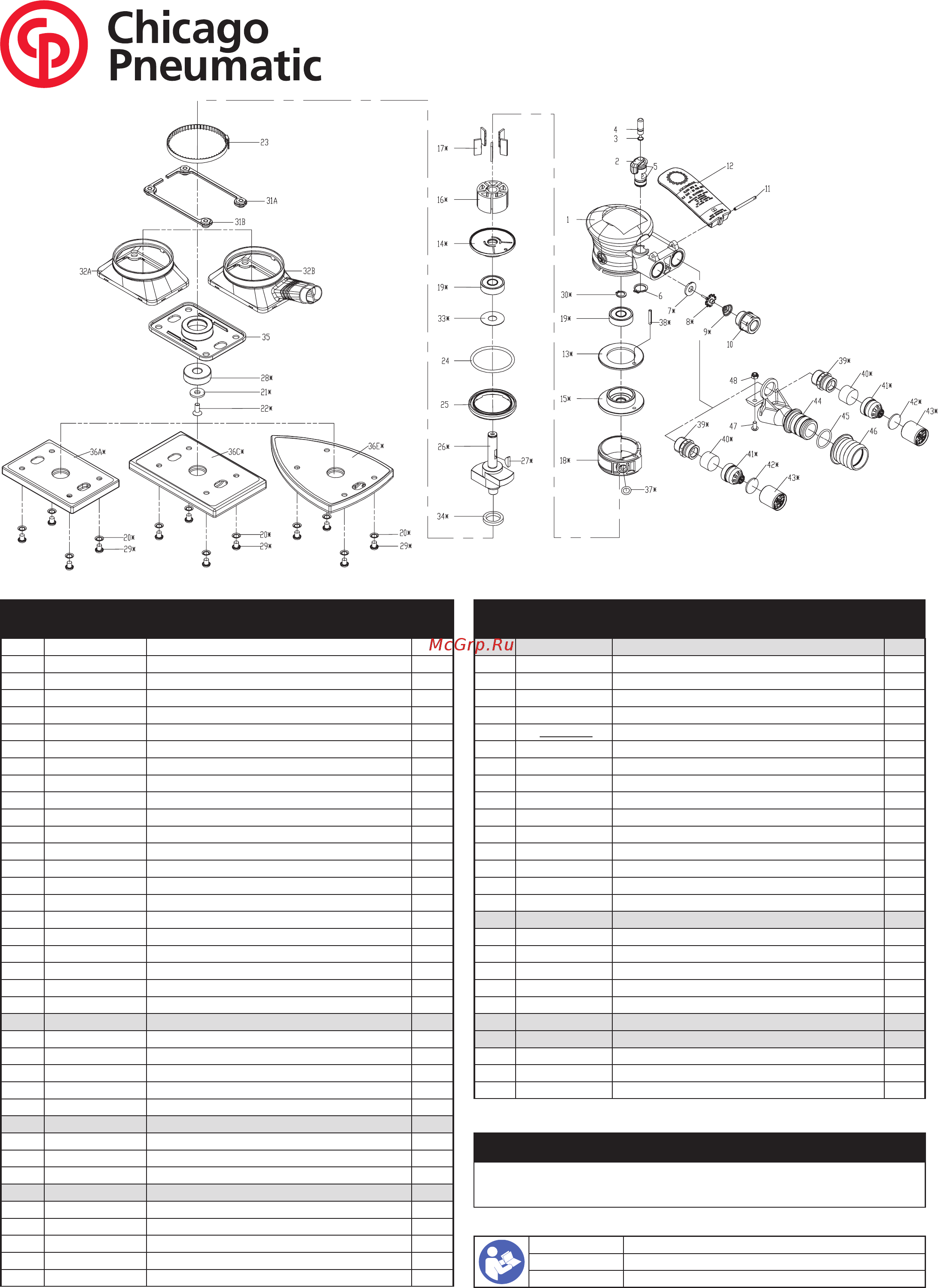

CP7263, CP7264, CP7266, CP7267 series

RANDOM ORBITAL SANDERS

12/2015

8940168990 Rev. : 03

Spare parts without part number are not sold separately - High wear parts underlined

8940168989 OPERATOR'S MANUAL

8940168614 EC DECLARATION

6159948770 SAFETY INSTRUCTIONS

Item

No.

Parts No. Description Qty

1 8940163399 Housing 1

10 8940163409 Air Inlet 1

11 8940163494 Spring Pin 1

12 8940169027 Lever 1

20 8940169028 Washer 1

21 8940169029 Flat Washer 1

22 8940169030 Screw

23 8940169031 Lace 1

28 8940169033 Bearing 1

29 8940169034 Screw 1

31A 8940169485 Skirt ﬁxation (right) 1

31B 8940169486 Skirt ﬁxation (left) 1

32A 8940169036 Skirt 1

32B 8940169037 Skirt 1

35 8940169039 Pad Plate 1

36A 8940168998 74X109mm CV H&L Pad Set CP7263CVE 1

36A 8940168997 74X109mm NV H&L Pad Set CP7263E 1

36C 8940169000 80X130mm CV H&L Pad Set CP7266CVE 1

36C 8940168999 80X130mm NV H&L Pad Set CP7266E 1

36E 8940169001 100X144mm CV H&L Pad Set CP7267 series 1

8940169002 70X198mm CV H&L Pad Set CP7264 series 1

6158727980 Warning label (not shown)

A 8940168367 Throttle Kit

2 Regulator 1

3 Valve Stem 1

4 O-Ring 1

5 O-Ring 2

6 Retaining ring 1

B 8940168368 Valve Seat Kit

7 Valve Seat 1

8 Tip Valve 1

9 Conical Spring 1

C 8940169040 Exhaust Kit (FOR NV & CV)

39 Mufﬂer Screw 1

40 Foam 1

41 Nozzle 1

42 Mufﬂer 1

43 Mufﬂer Cap 1

Item

No.

Parts No. Description Qty

D 8940169041 Eco Change Motor Kit 1

13 Front Ring 1

14 Rear End Plate 1

15 Front End Plate 1

16 Rotor 1

8940163417 Blades Set (5 pcs) 1

Cylinder

19 Bearing 1

24 O-Ring 1

25 Lock Ring 1

26 8940169032 Motor Shaft Balancer 1

27 Rotor Key 1

30 Snap Ring 1

33 Anti-Dust Washer 1

37 O-ring 1

38 Pin 1

E 8940169232 Central Vacuum Kit

44 Vacuum Adapter 1

O-Ring 1

46 Revolving Connector 1

47 Screw 1

48 U nut 1

F 8940169233 Tune-Up Kit (incl. Index: 7, 17, 19, 20, 23, 27, 33, 34, 37)

8940163460

Maintenance Kit

8940163525 Pad Wrench 1

8940163579 Lock Ring wrench 1

8940163578 Motor Extractor 1

Recomended Accessories

Vaccum hose adaptator ø25 (1") / ø28 (1-1/8")

6158044480

Vaccum hose adaptator ø25 (1") / ø32 (1-1/4")

6153501170
