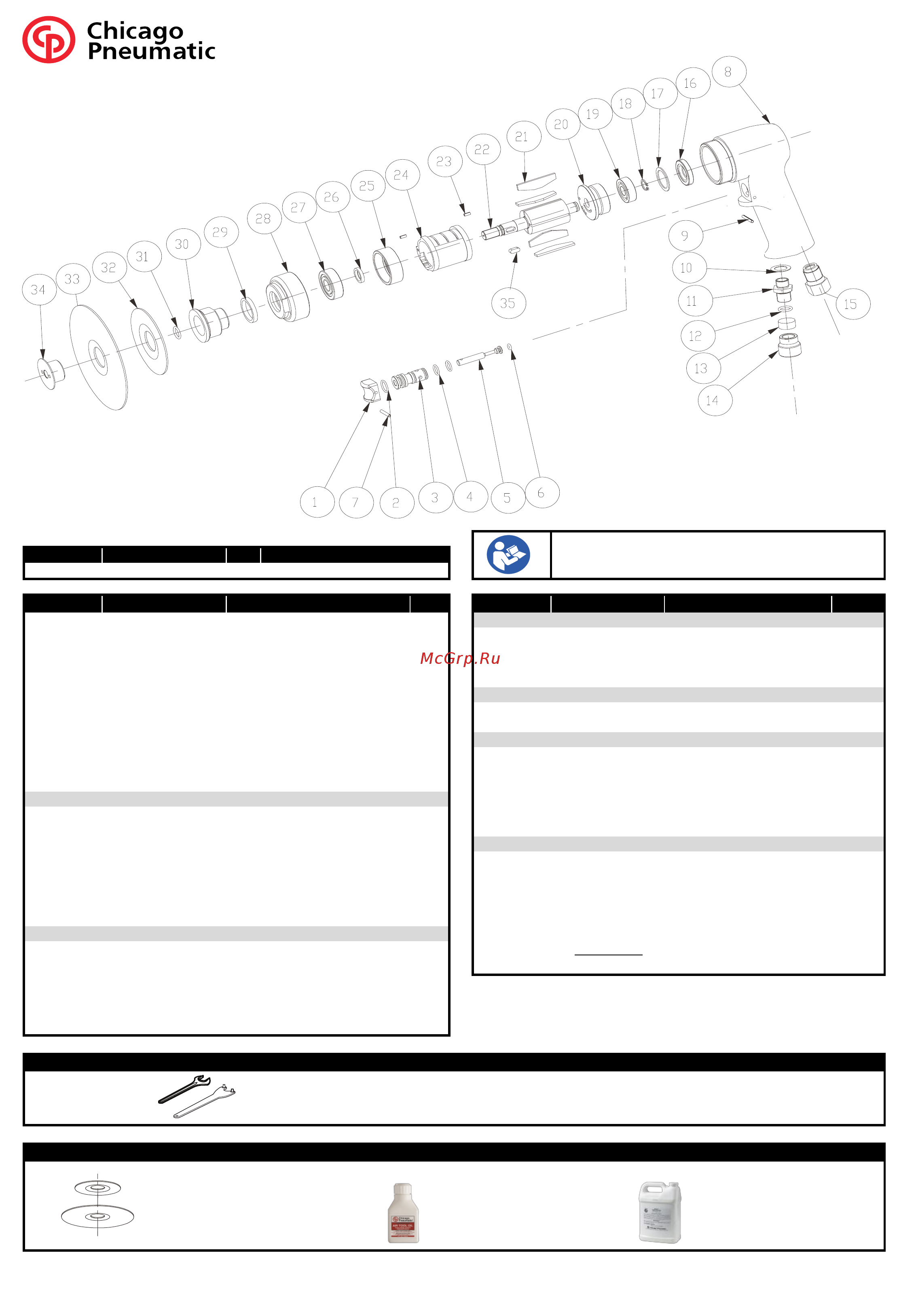

CP3070-120G

SANDER

Assembly Instructions

Item # Tightening torque Dir. Glue / comment

28 - 8 33 ft.lb - 45 N.m P Loctite 222

Index No Part No Description Qty Index No Part No Description Qty

8 2050548343 1 C 2050548273 Front Plate Kit

11 2050547043 1 23 Spring Pin 1

14 2050547223 Exhaust Cover 1 25 Cylinder Lower Plate 1

15 2050548353 Inlet 1 26 Adjusting Collar 1

22 2050548413 Rotor 1 27 Ball Bearing 1

24 2050548423 Cylinder 1 D 2050550183 Ball Bearing Kit

28 2050548363 Spindle Bearing Cover 1 19 Ball Bearing 1

30 2050548373 Wheel Flange 1 27 Ball Bearing 1

32 2050548383 Backing Pad for 3" paper 1 E 2050548323 Small Parts Kit

33 2050548393 Backing Pad for 5" paper 1 7 Spring Pin 1

34 2050548403 Paper Holder Flange 1 9 Spring Pin 1

Not shown 5412060277 Warning Label 1 18 Snap Ring 1

A 2050548253 Trigger Kit 23 Spring Pin 2

1 Throttle Valve Lever 1 29 Felt Ring 1

2 O-Ring 1 35 Key 1

3 Throttle Valve Bushing 1 F 2050548293 Tune-Up Kit CP3070-120G

4 O-Ring 2 2 O-Ring 1

5 Throttle Valve 1 4 O-Ring 2

6 O-Ring 1 6 O-Ring 1

7 Spring Pin 1 10 Washer 1

9 Spring Pin 1 12 O-Ring 1

B 2050548263 Rear Plate Kit 13 Muffler 5

16 Bearing Cover 1 21 2050548303 Blades Kit (set of 4) 1

17 Packing 1 31 O-Ring 1

18 Snap Ring 1

19 Ball Bearing 1

20 Cylinder Upper Plate 1

23 Spring Pin 1

Wrench Kit (incl. Open-end wrench 27mm & Pin wrench)

2050548333

Recommended Accessories

Protecto-lube Oil Airoilene Oil

Backing Pad (for cleaning motor parts) (for air lubrication)

2050548383 (for 3" paper) CA149661 (4 oz - 0.12l) P089507 (1 gal - 3.8l)

2050548393 (for 5" paper) CA000046 (20 oz - 0.59 l)

Spare parts without part number are not sold separately. High wear parts are underlined.

12/2013

2050549073 rev: 02

1/1

Accessories Included

Handle

Exhaust Cover Joint

6159948760

2050549053

Safety Instructions

Operator's Manual
