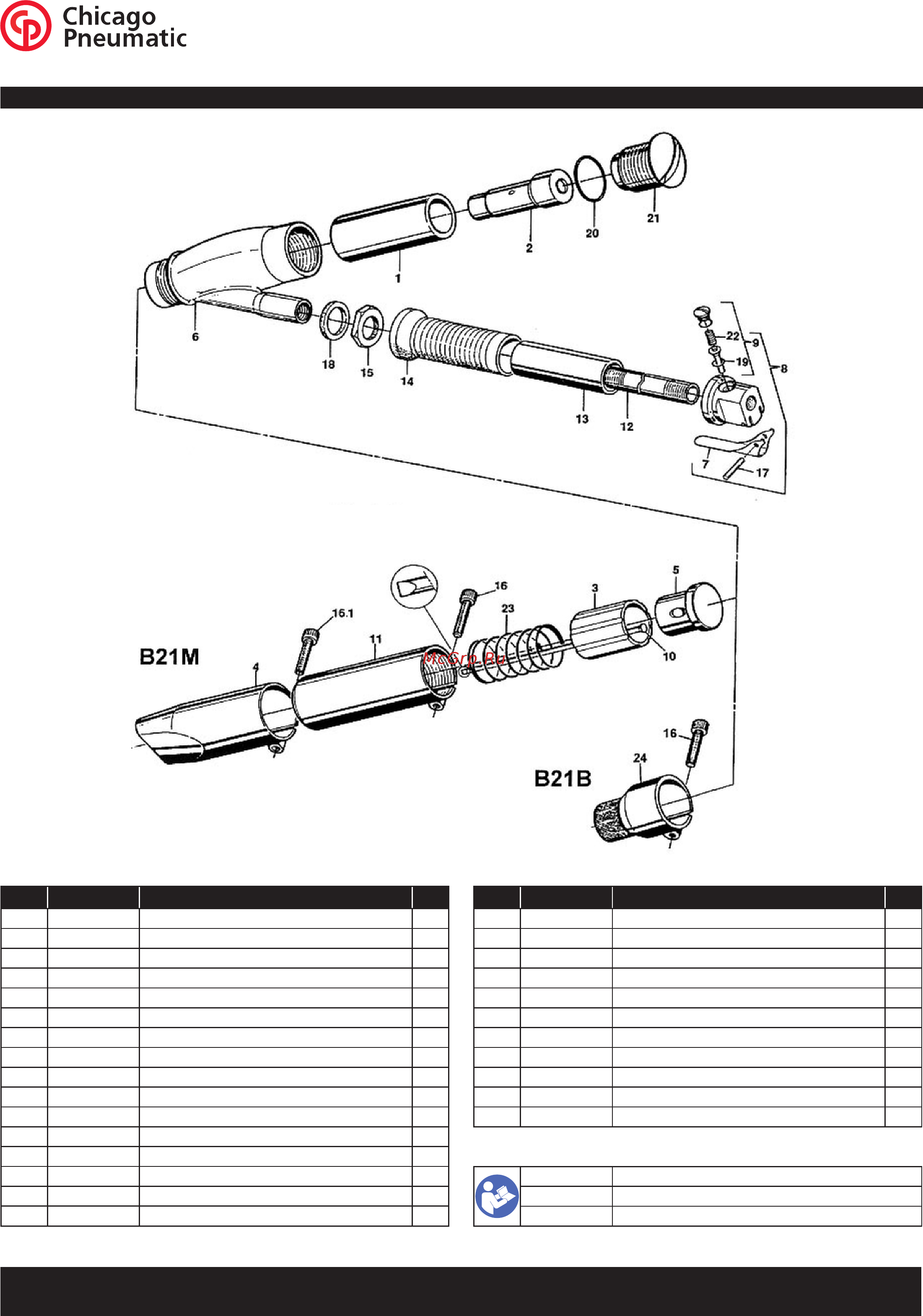

B21M - B21B

Needle Scaler - Chisel Scaler

Spare parts without part number are not sold separately

2050556463 rev 02

Item Part No Description Qty

1 113.524 Body cylinder 1

2 143.526 Piston 1

3 6152505290 Needle holder Ø 4 mm 1

4 250.530 Straight front tube 1

5 6152505340 Anvil 1

6 303.518 Handle 1

7 321.574 Throttle lever 1

8 395.518 Valve body assembly (7-9-17) 1

9 399.745 Valve stem set (19-22) 1

10 399.749 Needle set Ø 4 mm 1

11 566.547 Intermediate tube 1

12 570.537 Inter tube 1

13 570.538 Handle tube 1

14 570.539 Grip 1

15 607.518 Locknut 1

16 616.111 Screw 1

Item Part No Description Qty

16.1 616.111 Screw 1

17 637.116 Roll pin 1

18 650.29 Sealing washer 1

19 658.239 O-ring 1

20 658.243 O-ring 1

21 671.531 Cap 1

22 681.578 Valve spring 1

23 681.583 Compression string 1

24 6152505360 1/2” square tool retainer 1

Name plate 1

6158727980 Warning label

6159948780 Safety instructions

6159943800 Operator's manual

Accessories included

Chisel tip needles

03/2015
