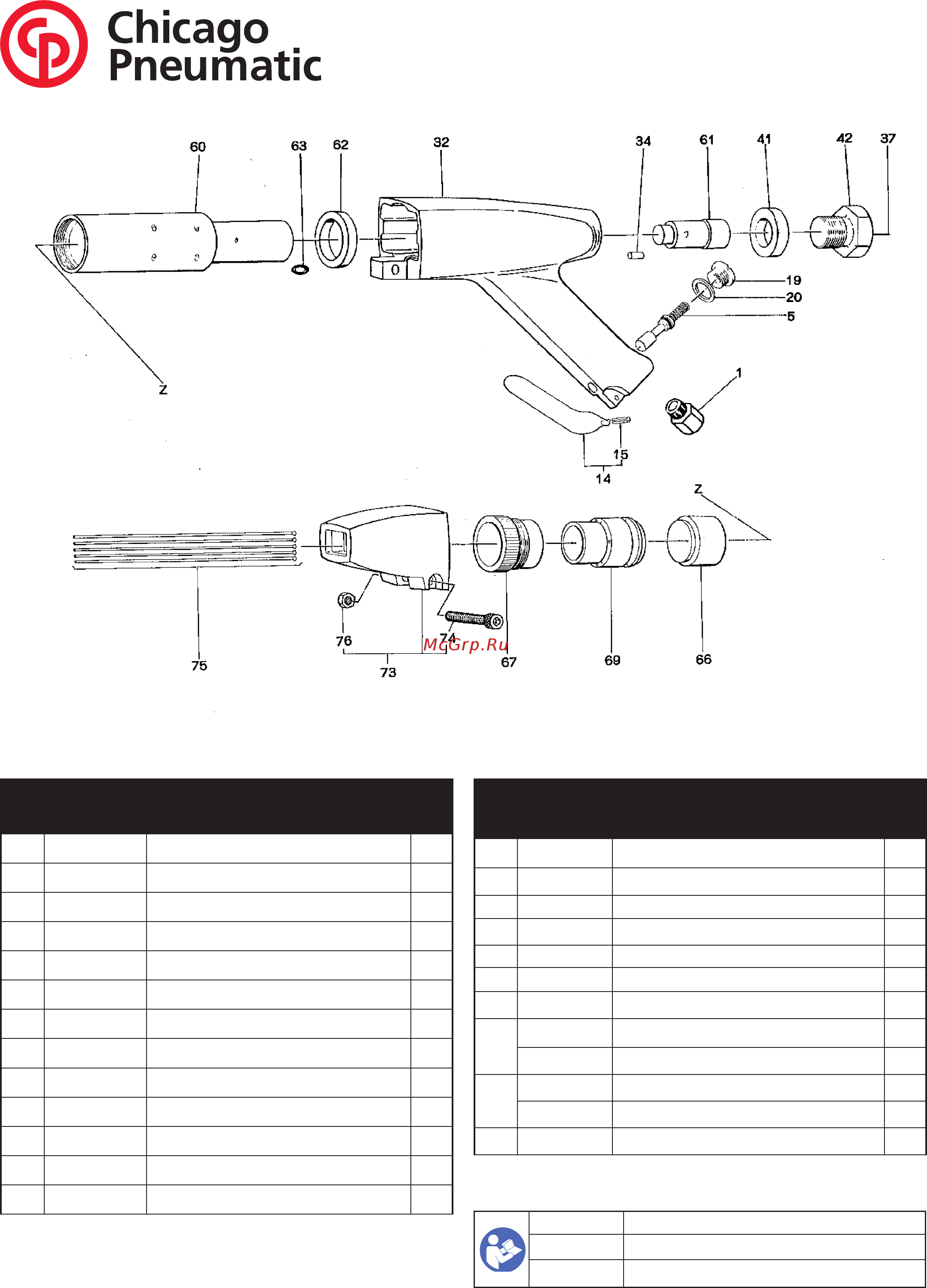

CP0952

Needle Scaler

05/2017

8940173698 Rev. : 02

Spare parts without part number are not sold separately - High wear parts underlined

NP123946 Operator’s Manual

470173 Warning Label

6159948780 Safety Instuctions

Item

No.

Parts No. Description

Qty

1 NP123898 Bushing-Air Inlet 1

5 NP123925 Valve Ass'y-Thottle 1

8 NP123899 Gasket-Bushing 1

14 NP131783 Lever-Throttle 1

15 NP123891 Pin Roll 1

19 NP123923 Cap-Valve 1

20 NP123924 Gasket-Cap 1

32 C136799 O Ring (G-30) 1

34 NP138047 Body-Valve 1

41 NP123914 Whasher-Rear Plug 1

42 NP123915 Plug-Housing 1

60 NP123911 Cylinder 1

61 NP123913 Piston 1

Item

No.

Parts No. Description Qty

62 NP123909 Washer-Cylinder

63 NP123910 O Ring 1

66 NP123917 Anvil 1

67 NP123919 Retainer Needle Holder 1

69 NP123922 Holder Needle (3mm) 1

69 NP123918 Holder Needle (2mm) 1

73 NP123920 Needle Guide Ass'y 1

NP123921 Screw Socket Head 1

NP123927 Wrench Hex 1

NP123902 Set-Needle (3mm) (23 Steel Needles) 1

NP123906 Set-Needle (2mm) (53 Steel Needles) 1

76 KF124267 Nut M8 1
