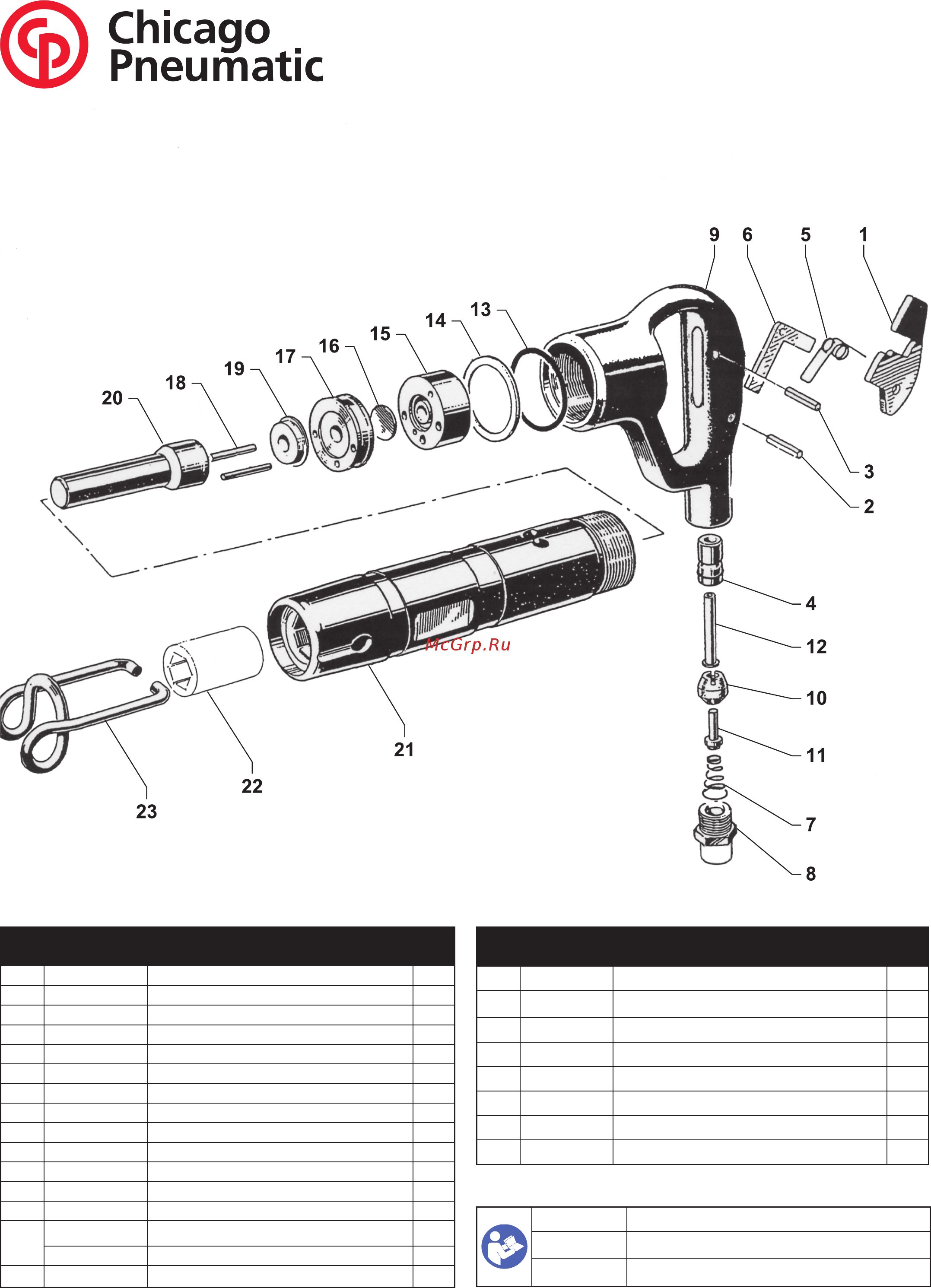

GV5

Air Hammer

09/2015

8940173421 Rev. : 01

Spare parts without part number are not sold separately - High wear parts underlined

Item

No.

Parts No. Description Qty

1 50130 Trigger 1

2 50102 Pin 1

3 50132 Pin 1

4 50104 Pusher Guide 1

5 50133 Spring 1

6 50131 Bolt 1

7 50108 Spring 1

8 50109 Nipple 1

9 50201 Handle 1

10 50106 Plastic Valve 1

11 50107 Steel Valve 1

12 50105 Pusher 1

13 50203 O-Ring 1

50204 Adjustment Washer 1 mm 1

50223 Adjustment Washer 2 mm 1

15 50205 Upper Seat 1

CA155273 Operator’s Manual

CA470173 Warning Label

6159948780 Safety Instuctions

Item

No.

Parts No. Description Qty

16 50206 Valve Disc 1

17 50207 Lower Seat 1

18 50208 Centering Pins 2

19 50209 Plastic Thrust 1

20 50210 Piston 1

21 50211 Cylinder with Socket 1

22 50212 Cylinder 1

23 50114 Lock Retainer 1
