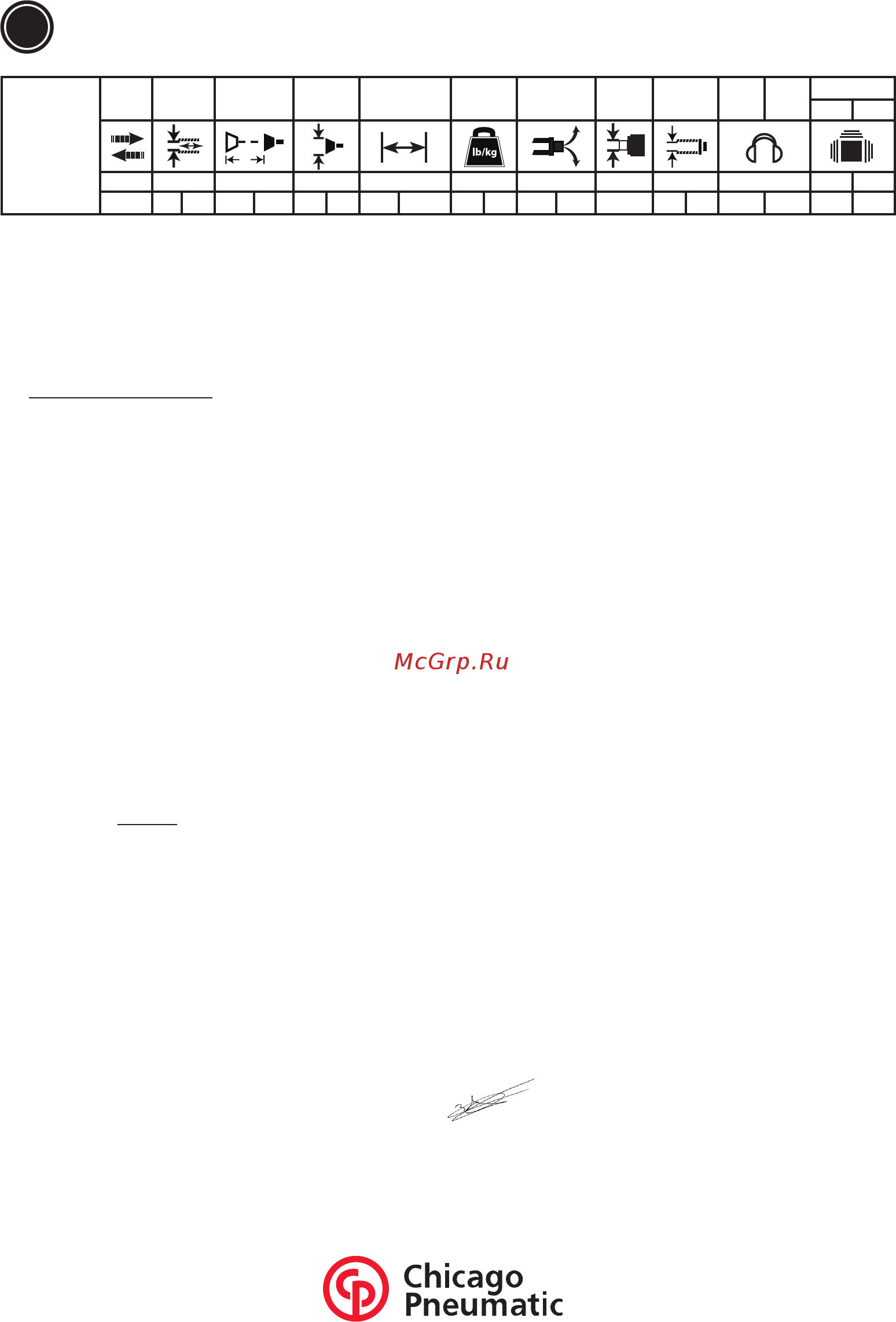

1. Technical Data (see Fig 2.)

CP0200 Series

Sand Rammer

max pressure 6.3 bar (90 psi)

:Vibration level, k Uncertainty ; L

Sound pressure level dB(A), K

= K

= 3 dB Uncertainty.

Declaration of noise (ISO 15744) and vibration emission (ISO 28927-6)

All values are current as of the date of this publication. For the latest information please visit www.cp.com.

These declared values were obtained by laboratory type testing in accordance with the stated standards and are suitable for comparison with the declared va-

lues of other tools tested in accordance with the same standards. These declared values are not adequate for use in risk assessments and values measured

in individual work places may be higher. The actual exposure values and risk of harm experienced by an individual user are unique and depend upon the way

the user works, the workpiece and the workstation design, as well upon the exposure time and the physical condition of the user.

We, CHICAGO PNEUMATIC TOOLS , cannot be held liable for the consequences of using the declared values, instead of values reecting the actual exposu-

re, in an individual risk assessment in a work place situation over which we have no control.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed. An EU guide to managing hand-arm vibration can be found at www.

pneurop.eu/uploads/documents/pdf/PN3-02-NV_Declaration_info_sheet_0111.pdf

We recommend a programme of health surveillance to detect early symptoms which may relate to noise or vibration exposure, so that management proce-

dures can be modied to help prevent future impairment.

2. Machine Type

• This product is designed for ramming sand. No other use permitted. For professional use only.

• Please read the product safety information carefully!

3. Implementation and Operation

• Connect device as shown in Fig.01.

• Fix the accessories properly to the tool.

• To start the machine, simply push the main trigger (A). Release the main trigger to stop.

4. Lubrication

• If air line lubricator is not used, lubricate with ISOVG32 turbine oil or equivalent oil daily before use. Do not burst into full speed operation after lubrication.

Recommended lubricant CP Oil PROTECTO-LUBE:

- 4 oz (0.12l) P/N: CA149661

- 20.8 oz (0.591l) P/N: CA000046

- 1gal (3.8l) P/N: P089507

5. Maintenance

• Follow local country environmental regulations for safe handling and disposal of all components.

• It‘s recommended to dismantle the tool for overhauling and cleaning periodically after 500 hours of operation or once every six months.

• Always ensure that the machine is disconnected from energy source ( compressed air ) to avoid accidental operation.

• High wear parts are underlined in the parts list.

• To keep downtime to a minimum, the following service kits are recommended:

Tune-Up Kit: see part list

6. Disposal

• The disposal of this equipment must follow the legislation of the respective country.

• All damaged, badly worn or improperly functioning devices MUST BE TAKEN OUT OF OPERATION.

• Repair only by technical maintenance staff.

7. Declaration of conformity

We : CHICAGO PNEUMATIC Tool Co. 1800 Overview Drive Rock Hill, SC 29730 - USA

Declare that the product(s): Sand Rammer

Machine type(s) : CP0200B18-2F, CP0200B22-2F, CP0200B25-2F, Serial Number: From 00001 to 99999

CP0200B18L-2F, CP0200B22L-2F, CP0200B25L-2F,

CP0200B32L-2F

Origin of the product : Japan

is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating : to “Machinery“ 2006/42/EC (17/05/2006)

applicable harmonised standard(s) : EN ISO 11148-4:2010

Name and position of issuer : Bruno BLANCHET ( General Manager)

Place & Date : Saint-Herblain, 20/07/2012

Technical le available from EU headquarter. Bruno Blanchet General manager LLC CP Technocenter 38, rue Bobby Sands - BP10273 44800 Saint Herblain - France

Model

Strike

Frequency

Bore

Diameter

Stroke

Butt

Diameter

Overall Length Weight

Air

Consumption

@load

Air

Inlet

Inner

Hose

Dia.

Sound

Pressure

LpA

Sound

Power

LwA

Vibrations

ahd K

1 2 3 4 5 6 7 8 9 10 11 12

[bpm] [mm] [inch] [mm] [inch] [mm] [inch] [mm] [inch] [Kg] [lb] [Nl/s] [SCFM] [inch] [mm] [inch] [dB(A)] [dB(A)]

[m/s²] [m/s²]
