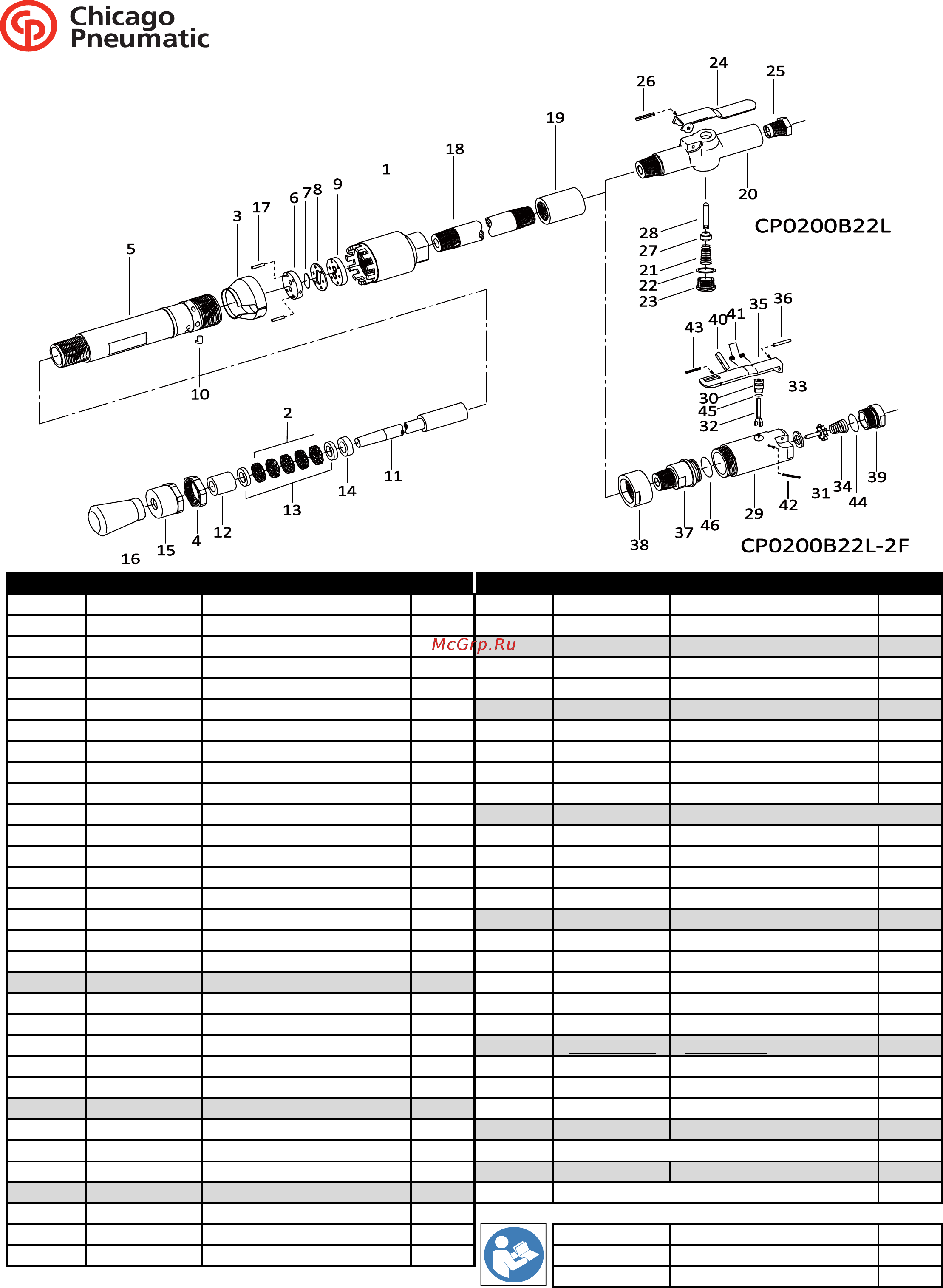

CP0200B22L / CP0200B22L-2F

Sand Ramme

IndexNo. PartNo. Description Qty. IndexNo. PartNo. Description Qty.

1 5412055465 Cap 1 27 ThrottleValve 1

2 5412055451 FeltRing 5 28 ThrottleValveRod 1

3 5412055452 ExhaustCover 1 D 8940170208 LeverB22LKit

4 5412055453 LockNut 1 24 ThrottleValveLever 1

5 5412102969 CylinderCP0200B22L 1 26 SpringPin 1

5 5412102970 CylinderCP0200B22L‐2F 1 E 8940170202 ThrottleKit2FModel

10 5412055456 LockingClutch 1 30 ThrottleValveBushing 1

11 5412055459 Piston 1 32 ThrottleValveRod 1

15 5412055464 Grand 1 42 SpringPin 1

16 5412055534 RubberButt 1 45 "O"Ring 1

18 5412055444 Pipe 1 F 8940170203 ThrottleValveKit2FModel

19 5412054336 SocketJoint 1 31 ThrottleValve 1

20 5412055440 ThrottleValveBody 1 33 ThrottleValveSheet 1

25 5412054484 InletBushing 1 34 ThrottleValve

Spring 1

29 5412058775 ThrottleValveBody 1 44 "O"Ring 1

37 5412058781 ThrottleValveStem 1 G 8940170204 SafetyLeverKit2FModel

38 5412058783 ThrottleValveStemNut 1 35 ThrottleValveLever 1

39 5412076996 InletJoint<NPT> 1 36 ThrottleValveLeverPin 1

A 8940170211 ValveKit 40 LockKey 1

6ValveSheet 1 41 LockSpring 1

7 Valve 1 43 SpringPin 1

8ValveCase 1 H 8940170210

Tune‐upKit

9ValveCover 1 44 "O"Ring 1

17 Pin 2 45 "O"Ring 1

B 8940170212 PackingKit 46 "O"Ring 1

12 PistonBushing 1 I 8940170215 SmallPartKitB22L

13 LeatherPacking 2 include7,17,26,

14 PackingSheet 1 J 8940170277 SmallPartKitB22L‐2F

C 8940170207 ThrottleB22LKit include7,17,36,41,42,43

21 ThrottleValveSpring 1

ThrottleValveCoverPacking

1 6159948780

Safetyinstructions 1

23 ThrottleValveCover 1 2050558133

Operator'smanual 1

5412060277

WarningLabel 1

Sparepartswithoutpartnumberarenotsoldseparately‐Highwearpartsunderlined

Contactusatwww.cp.com

07/2012

2050558333rev.2
