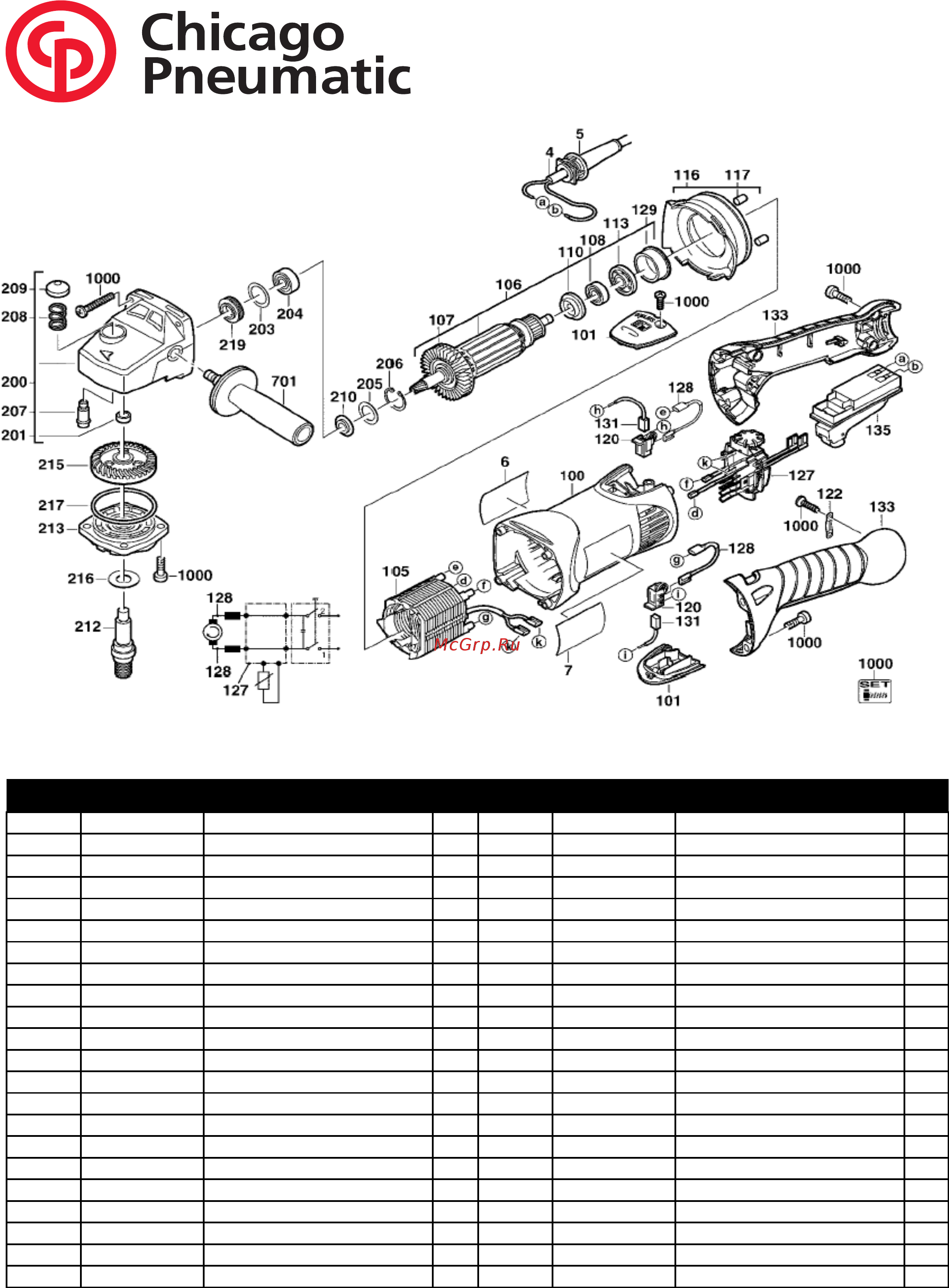

Chicago Pneumatic CP8210E Схема онлайн

Angle Polishers

No. Part No. Description

Qty

No. Part No. Description

Qty

4a 6159175160 CONNECTION CABLE 1 133ab 6153031350 SWITCH HANDLE 1

4b 6159175180 CONNECTION CABLE 1 135ab 6159155150 SWITCH 1

5ab To be advised PROTECTING COVER 1 200ab 6153965880 GEAR BOX 1

6a 6158727660

RATING PLATE

1 201ab 6157850920 SLEEVE 1

6b 6158727490 RATING PLATE 1 203ab 6156400830 WASHER 1

7ab 6158727650 NAME PLATE 1 204ab 6157581330 GROOVED BALL BEARIN 1

100ab 6155652780 MOTOR HOUSING 1 205ab 6155820600 DISC 1

101ab 6155652790 COVER 2 206ab 6156870640 LOCKING RING 1

105ab 6154280130 ELECTRIC FIELD 1 207ab 6156140860 LOCKING BOLT 1

106ab 6153965640 ARMATURE 1 208ab 6156900950 PRESSURE SPRING 1

107ab 6155571070 FAN 1 209ab 6153120930 PUSH-BUTTON 1

108ab To be advised BALL BEARING 1 210ab To be advised SEAL RING 1

110ab 6155820580 INSULATING DISC 1 212ab 6155801610 SPINDLE 1

113ab 6155820590 MAGNETIC DISC 1 213ab 6156452210 BEARING END PLATE 1

116ab 6155571080 AIR DEFLECTOR RING 1 215ab 6154841570 WHEEL 1

117ab 6155652800 HOLDING-DOWN DEVICE 2 216ab 6156452220 DISC 1

120ab 6155840160 BRUSH HOLDER 2 217ab 6156582930 O-RING 1

122ab 6152630180 CABLE COLLAR 1 219ab 6155571090

GREASE RETAIN. DISC

127ab 6154570480 ELECTRONIC ELEMENT 1 701ab 6153031360

HANDLE

128ab 6159174970 WIRE 2 1000ab 6156140870

BOLT SET

129ab 6155751190 BEARING SLEEVE 1

131ab 6159155170 CARBON BRUSH 1

a CP8210E

b CP8210

4926385868 Rev 04

21/07/2016
