Sharp PN-R606 [2/4] Expandable interface
![Sharp PN-R556 [2/4] Expandable interface](/views2/1388746/page2/bg2.png)
PN-ZB03H HDBaseT Receiver Board
Supported standard HDBaseT 2.0
Maximum resolution 4,096 x 2,160 (30 Hz)
Copy protection HDCP pass-through
Transmission distance Up to 328 feet / 100m
Input/output terminals HDBaseT x 1,
LAN x 1 (10Base-T/100Base-TX),
USB x 1 (USB 2.0)
Power supply From the monitor
PN-ZB03W Wireless Board
Maximum resolution 1,920 x 1,080 (30 Hz)
Wireless communication 2.4GHz, IEEE802.11b/g/n
method 5GHz, IEEE802.11a/n
Input/output terminals LAN x 1 (10Base-T/100Base-TX),
USB x 1 (USB 2.0),
Wireless adapter x 1 (USB 2.0)
Power supply From the monitor
Power supply
LAN port
RS-232C output
RS-232C input
Option control
Audio output
Audio input
DisplayPort 1.2
output
DisplayPort 1.2
input
PC analogue
input (D-sub)
PC/AV input (HDMI)
DVI-D input
(Side)
Standard
(Bottom)
LAN port
USB
HDBaseT
LAN port
USB
(for wireless adapter)
USB
Option
PN-ZB03H PN-ZB03W
Windows
®
1
Android
™
3
1
3
2
4
iOS
4
Mac
2
Face-down Tilted angle
Face-up
Wall-mounted
(landscape)
Wall-mounted
(portrait)
A single LAN cable supports long-distance signal transmission up to 100 m.
LAN cable
Excellent Image Quality
Thanks to their 1,920 (H) x 1,080 (V)-pixel resolution,
PN-R556/R496/R426 monitors express all of the detail and visual
impact of your selected full-HD content. Everything from ne text
to intricate graphics is rendered crisply and clearly. Brightness of
700 cd/m
2
further enhances their performance in professional
digital signage applications.

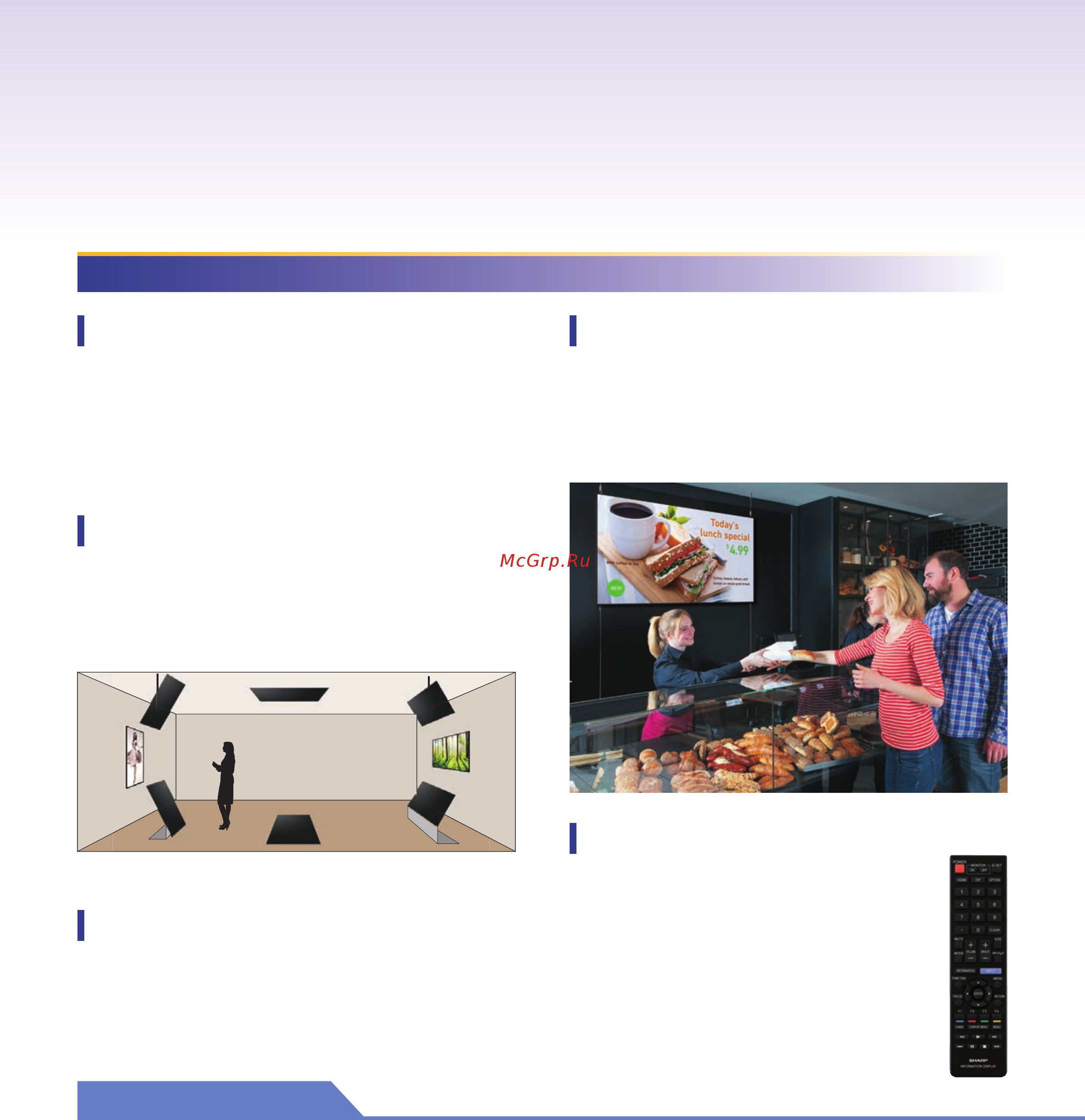

Adaptable to Various Settings
Whether in a landscape or portrait orientation,
PN-R556/R496/R426 monitors can be installed face up, face
down, or tilted forward or backward at an angle of up to 90
degrees. Such exibility helps you to incorporate these monitors
into a wider-than-ever variety of settings.
Flexible Installation
Expandable Interface
Hanging Installation
The design of PN-R556/R496/R426 monitors is robust enough that
they can be suspended from the four corners of the rear housing.
Each monitor is bundled with mounting brackets that allow you to
suspend it easily using wires.
Note: Please consult with your local authorised Sharp dealer or representative for
installation advice.
Slim Body Suits Any Location
A slim design with a bezel of only 7.8 mm on all four sides helps
onscreen images stand out and catch the viewer’s eye. Onscreen
images beautifully ll the screen, reaching almost to the edges of
the monitor. The subtle design of the monitors makes them a
stylish t for virtually any location.
Functional Remote Control
The PN-R556/R496/R426’s newly designed remote
controller offers enhanced operability. For example,
the remote controller and monitors can be assigned an
identity number (from 0 to 9) for mutual recognition,
which enables the remote to send commands to the
targeted monitor only. The remote also lets you
perform basic operations on connected HDMI-CEC
compatible devices, including power on/off. And it has
three designated function buttons—HDMI,
DisplayPort, and Option—to simplify input switching.
To enhance their functionality in professional signage applications, PN-R556/R496/R426 monitors come standard-equipped
with a range of interface terminals such as HDMI inputs and Display Port 1.2 input/output terminals. What’s more, these LCD
monitors feature an Intel
®
Mini OPS-compatible expansion slot that supports the addition of an optional expansion board. You
can add either an HDBaseT 2.0-compliant receiver board that supports various types of media and control signals or a wireless
board that brings convenient functionality to office environments.
Support for HDBaseT 2.0
(Option)
Installing an optional HDBaseT Receiver Board (PN-ZB03H) allows
the monitor to receive HDMI video, audio signals, and control
signals sent up to 100 metres via a single LAN cable*
1
. This brings
convenient connectivity with HDMI devices such as PCs and BD
players. Compatibility with the HDBaseT 2.0 standard allows you
to remotely operate a PC
from a USB device
connected to the optional
board*
2
. With HDBaseT 2.0
support, you can use fewer
cables and reduce the time
and cost of installation.
Wireless Connectivity
(Option)
The optional Wireless Board (PN-ZB03W) allows up to 10
devices—including Mac or Windows
®
computers, smartphones,
and tablets—to connect to the PN-R556/R496/R426
simultaneously without any cable hassles. You can display the
content of one device on the whole screen, or you can display the
content from up to four
devices in a 2 x 2 split
screen. This wireless
collaboration is a great way
to enhance productivity in
the workplace.
With PN-R556/R496/R426 professional LCD monitors, you have more scope than ever to set up your digital signage in the most
eye-catching way possible. Not only can these monitors be suspended from a ceiling, they can also be installed face up, face
down, or at a tilted angle. The PN-R556/R496/R426 offers such a wide variety of installation options, you’ll be sure to nd the
ideal setup to match your location and signage needs. DisplayPort 1.2 connectivity comes standard, and the interface can be
expanded with an optional HDBaseT
™
2.0 receiver board. You’ll enjoy more convenience and more exibility in terms of system
design. PN-R556/R496/R426 monitors do a stylish job of making your key message even more visible to your intended target.
Other Key Features
24/7 Operation
Built solid, PN-R556/R496/R426 monitors are ideal for use in
demanding professional applications that require round-the-clock
operation seven days a week.
Power on Delay
This feature lets you delay the startup of each monitor in a
multi-monitor installation. This reduces the load placed on the power
supply when multiple monitors are turned on at the same time.
Fanless Architecture
Airow is maintained and heat is dissipated without the use of
noisy, dust-creating mechanical air-ventilation fans. The fanless
design also facilitates maintenance of the monitor.
Built-in Temperature Sensor
If the temperature inside a monitor rises, a built-in sensor detects it
and the monitor automatically lowers the brightness level of its
backlight system.
Enlarge (Zoom) Display Mode
This feature enables multiple monitors to be grouped together to
display a single enlarged image. The framing of the image is
corrected to eliminate misalignment between monitors.
DisplayPort Daisy Chain
Multiple PN-R556/R496/R426 monitors can be set up in a daisy
chain conguration, so you can display the same content
simultaneously on all screens. No matter which terminal receives
the input signal, it can be output via DisplayPort.
ID Setting
Thanks to an RS-232C interface, multiple PN-R556/R496/R426
monitors* can be easily controlled and monitored from a central
location via a PC. Each monitor can be assigned an individual ID
code to use when remotely turning that monitor on or off, changing
its input, or making various screen adjustments and settings.
* PN-R556/R496/R426 monitors can be connected together in a daisy chain configuration.
Built-In Speakers
Built-in 10 W + 10 W rear speakers eliminate the need for external
speakers and ensure a stylishly streamlined prole.
Crestron Connected
™
These monitors are compatible with Crestron Connected software,
which means that you can remotely control and manage each
monitor via a LAN network.
*1 Category 6 or higher shielded cable (available commercially)
*2 Requires an HDBaseT 2.0-compatible transmitter (available commercially). Not all USB
devices are supported.
An optional board can slide into the
slot on the back of the monitor.
Note: Please consult with your local authorised Sharp dealer or representative regarding
tiltable angles and other installation conditions.
