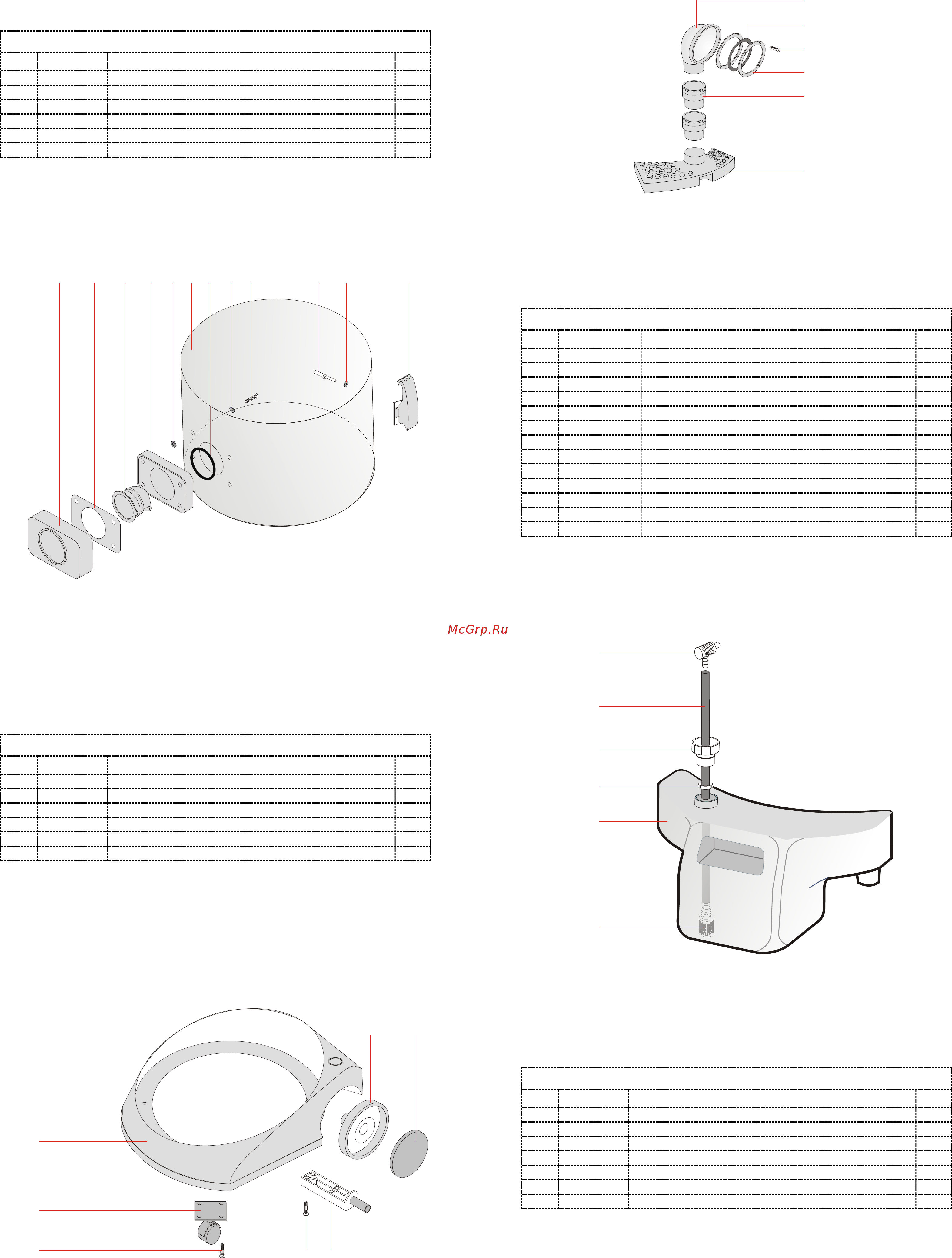

Delvir WDC HOME [2/2] Compl trolley zip steel bw g4 ref 6047 zst bw g4 pos ref description n

4 5

1 2 3 4 5 6 7 8 9 10 11 12

23/07/2013WDC HOME

MEDIUM HYDRO DEVICE REF. 6198 MID

POS REF DESCRIPTION N°

1 6191 HYDRO DEFLECTOR BODY 1

2 6192 HYDRO DEFLECTOR GASKET 1

3 3049 STEEL SCREW "TC" CROSS 3,5X13 4

4 6193 HYDRO DEFLECTOR FLANGE 2

5 7638 MODULAR TUBE HYDRO DEVICE 2

6 6194 HYDRO DIFFUSIOR BODY 1

PL.TANK 215+MAG.HOOKS TRAN.WHITE REF. 20214 SFE BT

POS. REF. DESCRIPTION N°

1 2652 ABW/AW COMPL. INLET R155 WATER-BLUE W/B AW 1

2 2846 GASKET D.38 1

3 2593 DEFL ECTOR 99 1

4 2586G4 GASKET R 205 GREY 4000 1

5 6287 RUBBER GASKET D.10X4,5X1,5 4

6 20215 BT PL.TANK 215+ PTAIR TRANSP.WHITE 1

7 6370 TANK SEAL O-RING 1

8 1016 STEEL WASHER M 5 INOX UNI 6592 4

9 6258 SCREW AUT.TC PHL 4,8X32 INOX 4

10 1302 RIVET 4,8X17 4

11 1016 STEEL WASHER M 5 INOX UNI 6592 4

12 1847/MAG NE COMPL.PLASTIC.HOOK BLACK W/MAGNET 2

* 6446 MAGNET 20X10X6 2

COMPL.CLEAR WATER TANK ZIP REF. 6091

POS. REF. DESCRIPTION N°

1 6080 COUPLING 1

2 6025 PVC PIPE D.4X7,5 L=360 MM 1

3 6090 TANK CAP ZIP 1

4 2660 STRICK CLIP 7-9 1

5 6086 DETERG.TANK ZIP 1

6 2689 KIT IDR O-WET 5 00 1

COMPL.TROLLEY ZIP STEEL BW G4 REF. 6047/ZST BW/G4

POS. REF. DESCRIPTION N°

1 6045/Z BW ZIP TROLLEY BODY BLUE WATER 1

2 6030 WHEEL D.35 W/SQUARE PL. 2

3 2680 SCREW TC POZ 4X15 AC ZN BLACK 8

4 1005 SCREW PAT TMT PHL 5X14 ZN BLACK 4

5 6042-1 WHEEL SUPPORT YES 2

6 6043 WHEEL BODY YES 2

7 6044G4 WHEEL COVERING YES (GR4000) 2
