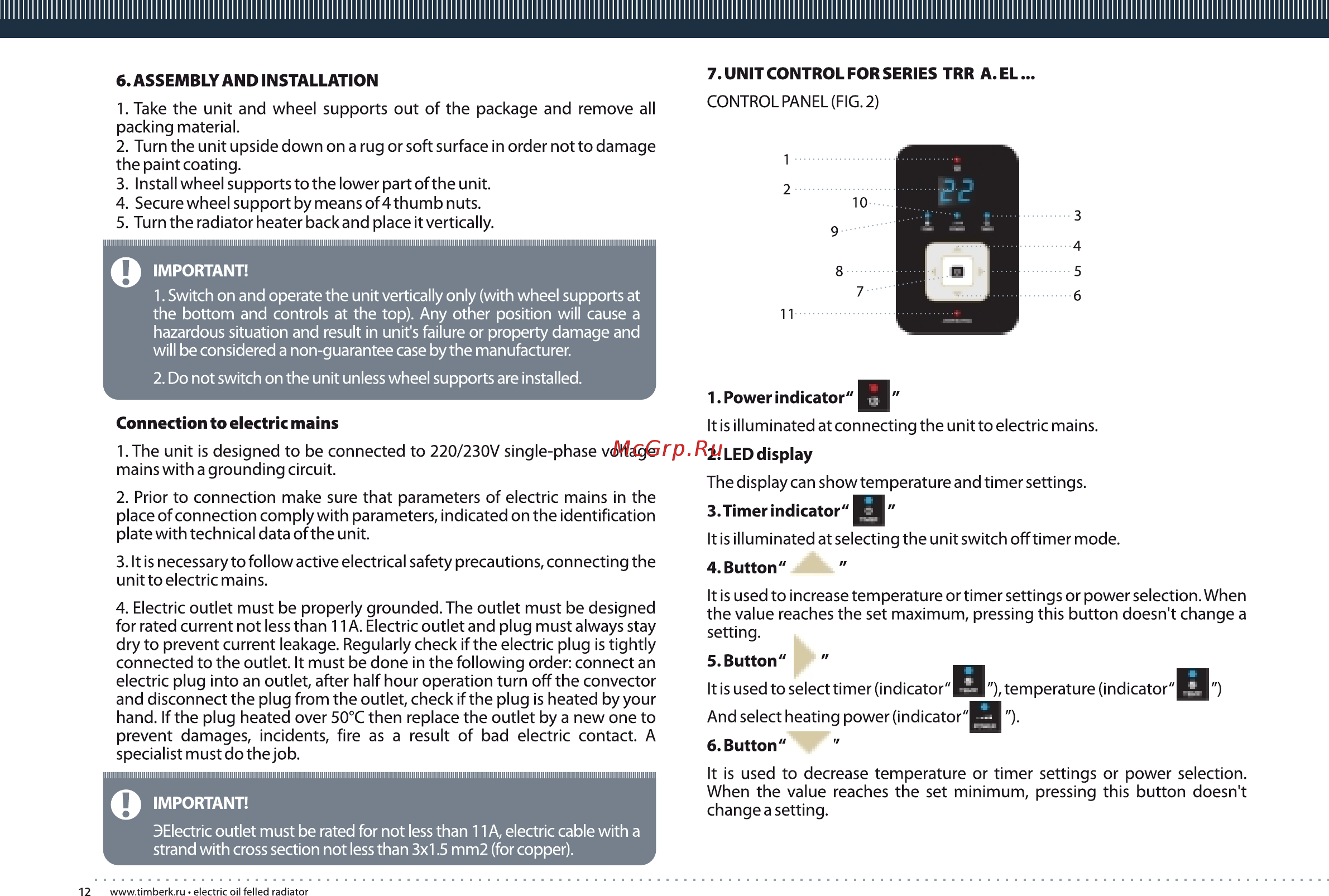

6 ASSEMBLY AND INSTALLATION 7 UNIT CONTROL FOR SERIES TRR A EL 1 Take the unit and wheel supports out of the package and remove all packing material 2 Turn the unit upside down on a rug or soft surface in order not to damage the paint coating 3 Install wheel supports to the lower part of the unit 4 Secure wheel support by means of 4 thumb nuts 5 Turn the radiator heater backand place it vertically CONTROL PANEL FIG 2 Q IMPORTANT 1 Switch on and operate the unit vertically only with wheel supports at the bottom and controls at the top Any other position will cause a hazardous situation and result in unit s failure or property damage and will be considered a non guarantee case by the manufacturer 2 Do not switch on the unit unless wheel supports are installed 1 Power indicator Connection to electric mains It is illuminated at connecting the unit to electric mains I The unit is designed to be connected to 220 230V single phase voltage mains with a grounding circuit 2 LED display The display can show temperature and timer settings 2 Prior to connection make sure that parameters of electric mains in the place of connection comply with parameters indicated on the identification plate with technical data of the unit 3 Timerindicator HI 3 It is necessary to follow active electrical safety precautions connecting the unit to electric mains 4 Button 4 Electric outlet must be properly grounded The outlet must be designed for rated current not less than 11 A Electric outlet and plug must always stay dry to prevent current leakage Regularly check if the electric plug is tightly connected to the outlet It must be done in the following order connect an electric plug into an outlet after half hour operation turn off the convector and disconnect the plug from the outlet check if the plug is heated by your hand If the plug heated over 50 C then replace the outlet by a new one to prevent damages incidents fire as a result of bad electric contact A specialist must do the job Q IMPORTANT TEIectric outlet must be rated for not less than 11 A electric cable with a strand with cross section not less than 3x1 5 mm2 for copper 12 www timberk ru electric oil felled radiator It is illuminated at selecting the unit switch off timer mode It is used to increase temperature or timer settings or power selection When the value reaches the set maximum pressing this button doesn t change a setting 5 Button It is used to select timer indicator H temperature indicator And select heating power indicator 6 Button It is used to decrease temperature or timer settings or power selection When the value reaches the set minimum pressing this button doesn t change a setting
