8
CAUTION:
• Do not cover vents, or it may cause overheating
and damage to the tool.
1
012912

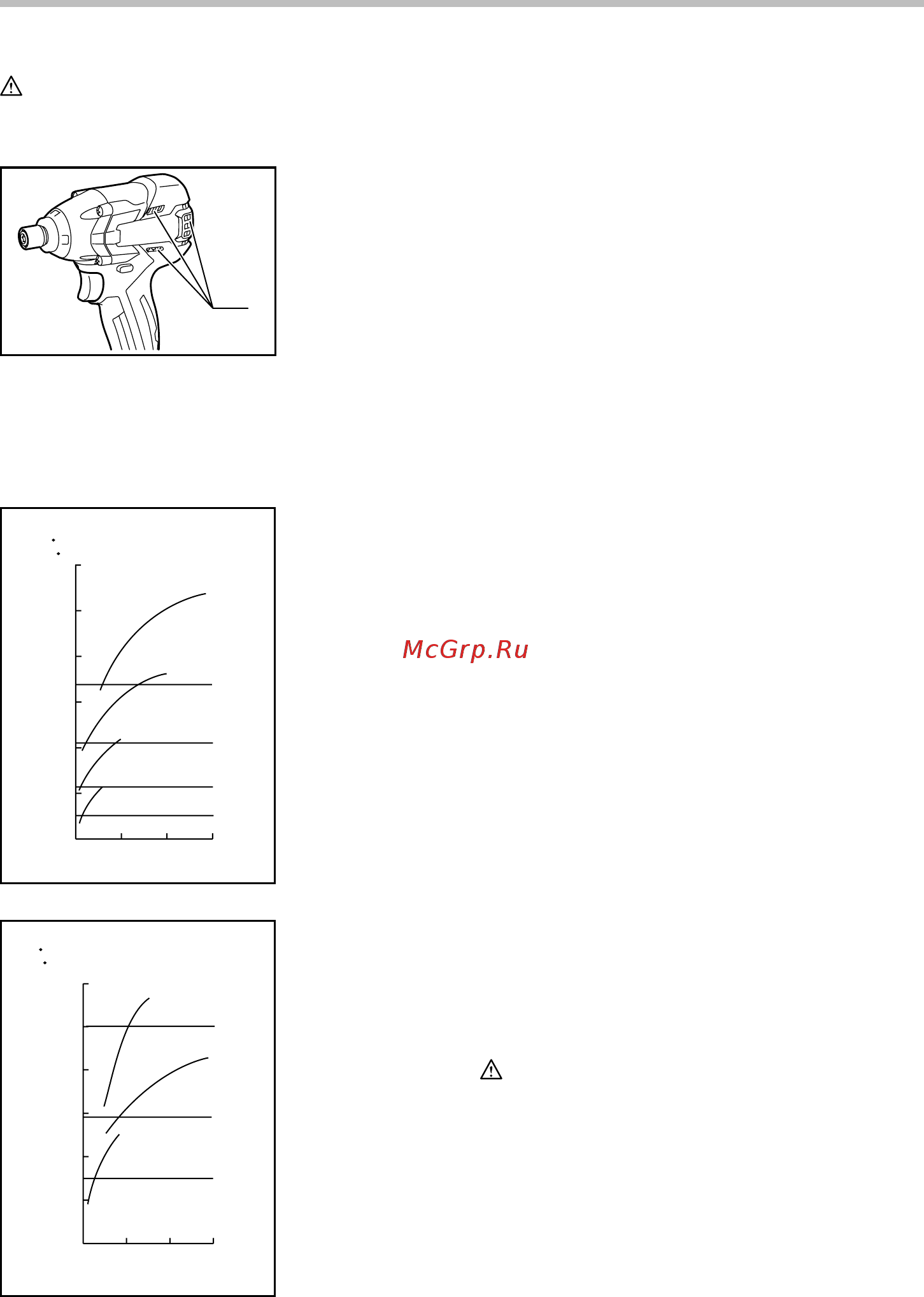

The proper fastening torque may differ depending upon
the kind or size of the screw/bolt, the material of the
workpiece to be fastened, etc. The relation between
fastening torque and fastening time is shown in the
figures.
120
100
80
60
40
20
0 1.0 2.0 3.0
M14
M12
M10
M8
(M14)
(M12)
(M10)
(M8)
Standard bolt
N m
Fastening torque
Fastening time (S)
Proper fastening torque
(kgf cm)
(1224)
(1020)
(816)
(612)
(408)
(204)
006255
120
(1224)
100
(1020)
80
(816)
60
(612)
40
(408)
20
(204)
0 1.0 2.0 3.0
M12
M10
M8
(M12)
(M10)
(M8)
N m
Fastening torque
Fastening time (S)
Proper fastening torque
(kgf cm)
High tensile bolt
006257
Hold the tool firmly and place the point of the driver bit in
the screw head. Apply forward pressure to the tool to the
extent that the bit will not slip off the screw and turn the
tool on to start operation.
NOTE:
• Use the proper bit for the head of the screw/bolt
that you wish to use.
•
When fastening M8 or smaller screw, choose a
proper impact force and carefully adjust pressure on
the switch trigger so that the screw is not damaged.
• Hold the tool pointed straight at the screw.
•
If the impact force is too strong you tighten the
screw for a time longer than shown in the figures,
the screw or the point of the driver bit may be
overstressed, stripped, damaged, etc. Before
starting your job, always perform a test operation to
determine the proper fastening time for your screw.
The fastening torque is affected by a wide variety of
factors including the following. After fastening, always
check the torque with a torque wrench.
1. When the battery cartridge is discharged almost
completely, voltage will drop and the fastening
torque will be reduced.
2. Driver bit or socket bit
Failure to use the correct size driver bit or socket
bit will cause a reduction in the fastening torque.
3. Bolt
• Even though the torque coefficient and the
class of bolt are the same, the proper
fastening torque will differ according to the
diameter of bolt.
• Even though the diameters of bolts are the
same, the proper fastening torque will differ
according to the torque coefficient, the class of
bolt and the bolt length.
4.
The manner of holding the tool or the material of
driving position to be fastened will affect the torque.
5. Operating the tool at low speed will cause a
reduction in the fastening torque.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before attempting to
perform inspection or maintenance except for the
following troubleshooting related to the light.
•
Never use gasoline, benzine, thinner, alcohol or the
like. Discoloration, deformation or cracks may result.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers,
always using Makita replacement parts.
1. Vent
