ENGLISH en

Use a suitable extraction unit.

Reduce the exposure to dust with the following:

- do not direct the escaping particles and the

exhaust air stream at yourself or nearby persons

or on dust deposits.

- Use an extraction unit and/or air purifiers.

- Ensure good ventilation of the workplace and

keep clean using a vacuum cleaner. Sweeping or

blowing stirs up dust.

- Vacuum or wash the protective clothing. Do not

blow, beat or brush.

See page 2.

1SDS chuck

2Tool lock

3 Chuck lock

4 Keyless chuck *

5 Sleeve keyless chuck *

6Spindle

7 Additional handle

8Depth stop

9Lock

10 Switch button (for changing the operating

mode)

11 Electronic signal indicator *

12 Speed preselection wheel *

13 Rotation selector switch

14 Lock button

15 Trigger switch

* depending on equipment/not in scope of delivery

Before plugging in, check that the rated mains

voltage and mains frequency, as stated on the

type plate match your power supply.

Always install an RCD with a maximum trip

current of 30 mA upstream.

6.1 Assembly of the additional handle

For safety reasons, always use the additional

handle supplied.

Open the clamping ring by turning the side handle

(7) counter-clockwise. Push the additional handle

onto the collar of the machine. Insert the depth stop

(8). Securely tighten the additional handle at the

angle required for the application.

7.1 Depth Stop Setting

Loosen the additional handle (7). Set the depth stop

(8) to the desired drilling depth and retighten

additional handle (7).

7.2 Switching On and Off

Press the trigger switch (15) to switch on the

machine.

The speed can be changed using the trigger switch.

UHEV 2860-2 Quick:

The electronic soft start means that the machine

accelerates continuously up to the pre-selected

speed.

For continuous operation, the trigger button can be

locked using the lock button (14) . Press the trigger

switch again to stop the machine.

In continuous operation, the machine

continues running if it is forced out of your

hands. Therefore, always hold the machine with

both hands using the handles provided, stand

securely and concentrate.

7.3 Select speed (only for UHE...)

Select the optimal speed at the thumbwheel (12)

depending on the application.

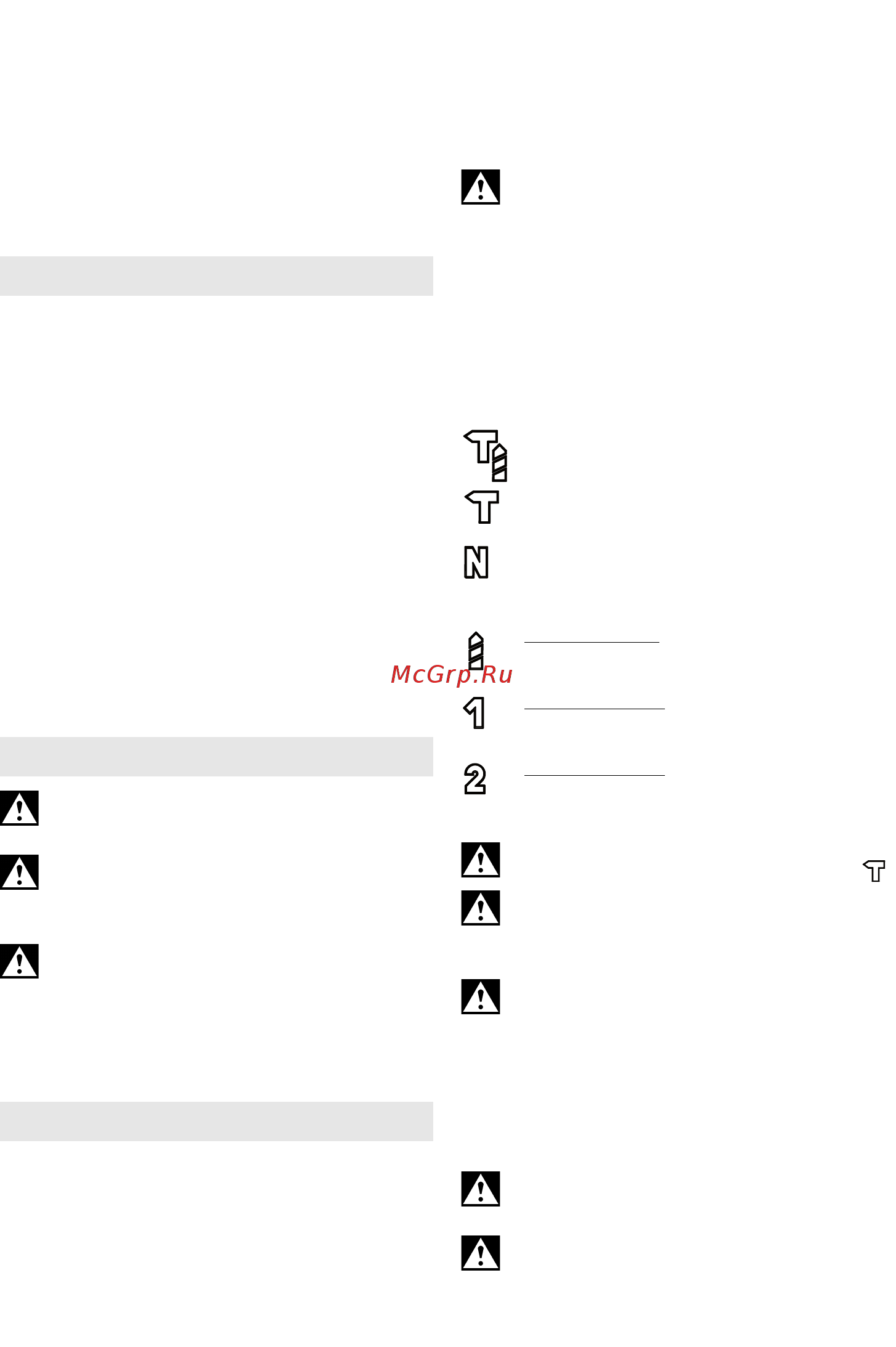

7.4 Operating mode selection

Press the lock (9) and turn the thumbwheel (10).

Hammer drilling

(Set only when using the hammer chuck (1) )

Chiselling

(Set only when using the hammer chuck (1) )

Setting chisel position

Turn the chisel in the desired position. Then

select "Chiselling" to secure the chisel and

prevent it from twisting.

Only for KHE...:

Drilling

(high torque)

Only for UHE ...:

Drilling 1st gear

(high torque)

Only for UHE ...:

Drilling 2nd gear (high speed)

When a chisel is fitted, only operate the

machine in the chiselling operating mode .

Avoid levering with the machine when a chisel

is fitted.

7.5 Selection of direction of rotation

Only activate the rotation selector switch (13)

when the motor has completely stopped.

Select direction of rotation:

R = clockwise rotation (for drilling, hammer

drilling, chiselling, drive in screws)

L=anti-clockwise rotation (for the removal of

screws)

7.6 Drill chuck change

Ensure a clean spindle (6) when changing the

chuck. Apply a light coating of grease to the

spindle. (Special grease: Order No.: 6.31800)

Only attach the Metabo chuck provided.

Removing the chuck:

See page 2, fig. C.

5. Overview

6. Initial Operation

7. Use
