LaserMarker

OPERATION INSTRUCTIONS

● Battery installation

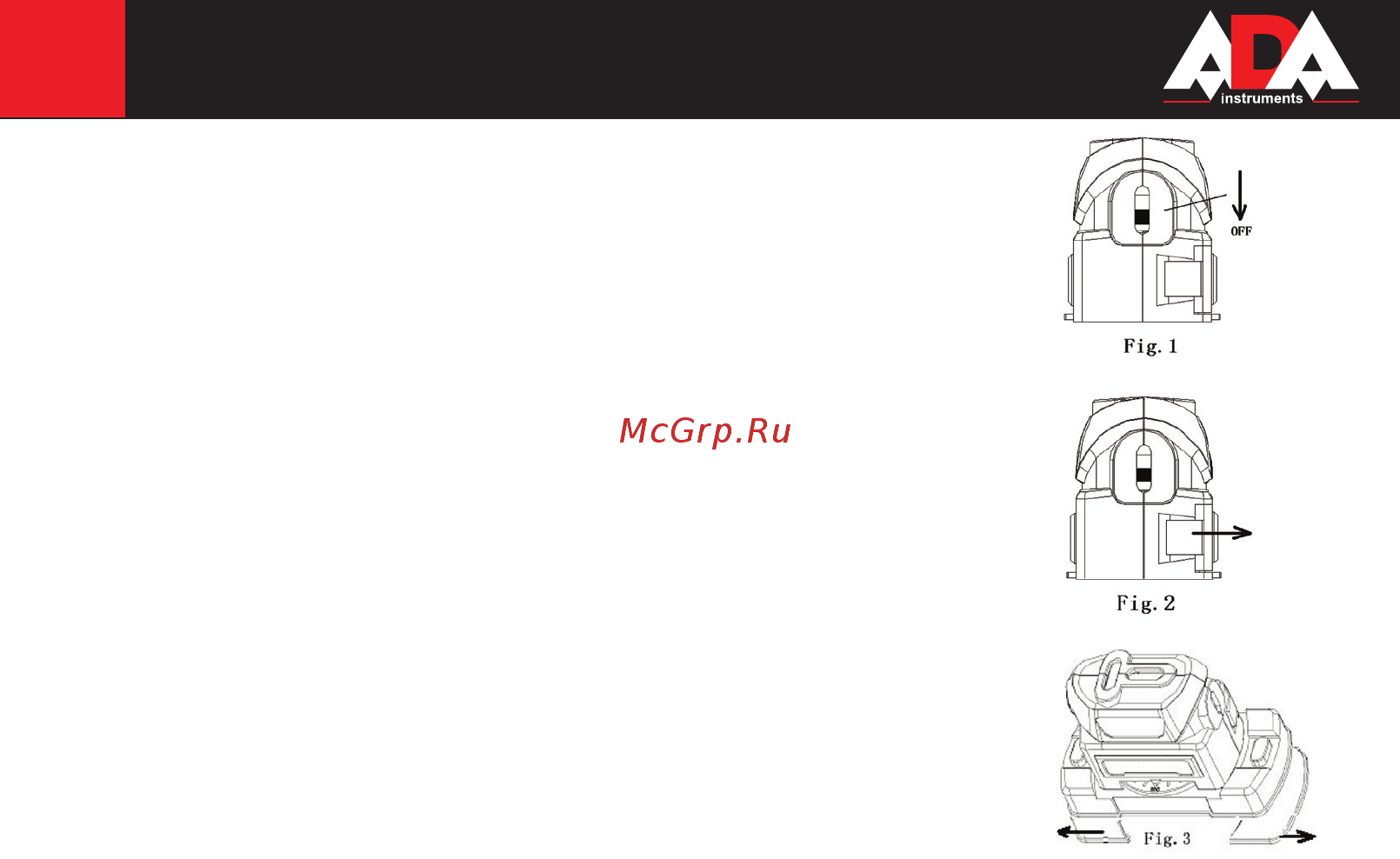

1. Make sure that the laser is at OFF state. (see Fig. 1)

2. Open the battery lid on the back of tool. (see Fig.2)

3. Insert a 9V block battery with reference to the correct polarity.

4. Put the battery to the compartment and close the lid.

● Tool installation

Install the main frame on the base. (see Fig.3) Please take away the protecting covers when use it.

● For level surface use:

1.Determine the start place and laser direction on the level surface.

2. Place the tool on the start place to the laser direction.

3. Fix the tool. If needed, please press the push pin button on the base when operating on the

soft surface (Fig.4).

4. Turn on the laser (do not stare into the laser beam, see Fig.5)

5. Turn the laser line to desired position.

6.If need a line with any angle to the above laser line, keep the tool static, rotate the alignment

plate until the “0” scale align to the pointer. (see Fig.6)

7. Turn the tool according to the desired angle and make the pointer indicate the correspond-

ing scale on the alignment plate. (see Fig.7)

● For wall use (dry wall or wooden wall only)

1.Determine the start place and laser direction on the level surface.

2. Place the tool on the start place to the laser direction.

3. Press the push pin button on the base to locate the tool.

4. Turn on the laser (do not stare into the laser beam)
