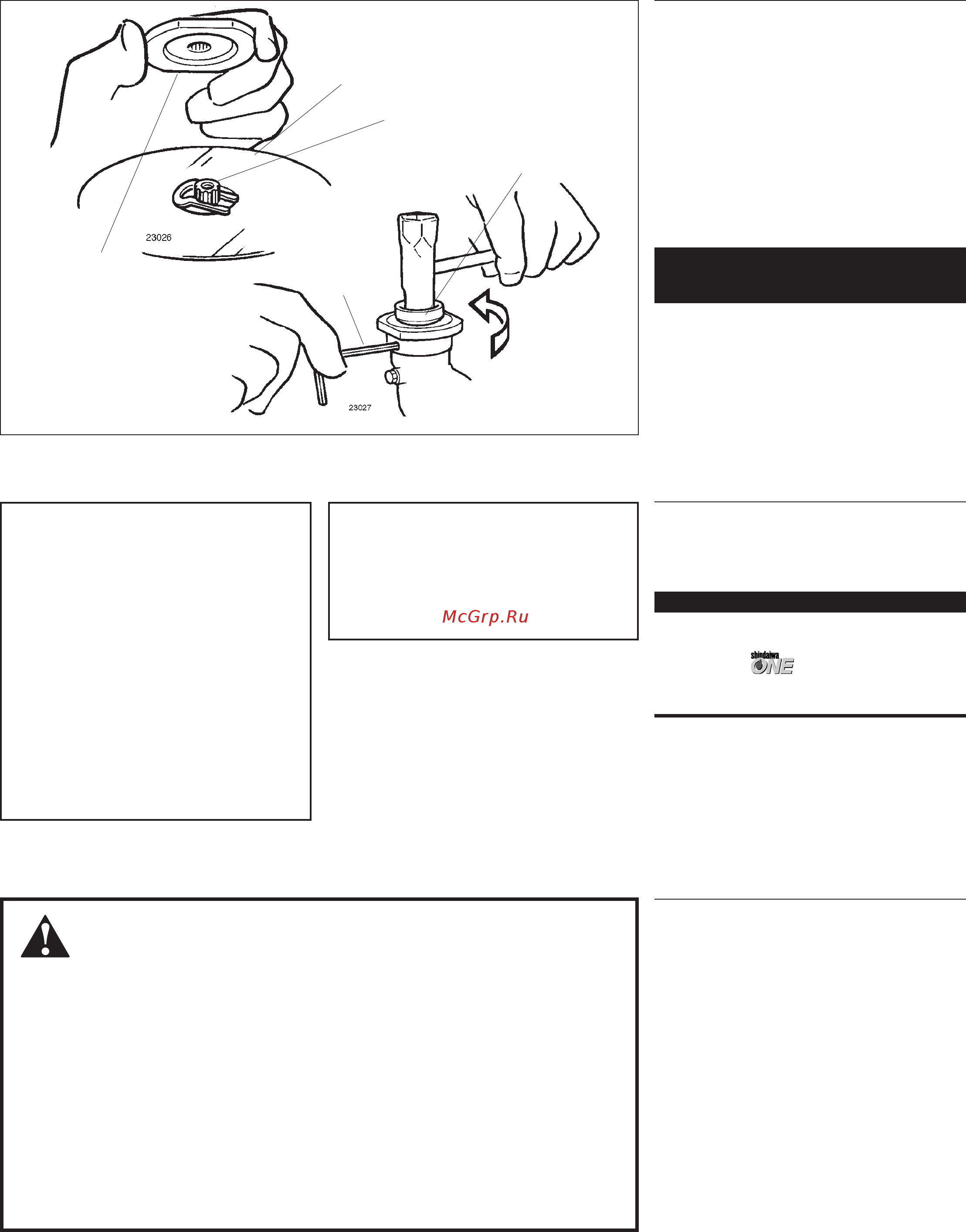

![Shindaiwa C230 [11/24] Assembly blade c230 t230x continued](/views2/1401081/page11/bgb.png)
11
Blade
Blade Holder B
Hex Wrench
(blade not
shown for
clarity)
5. Install blade holder “B” on the output
shaft. See Figure 21. The recess in the
holder must completely cover the safety
clip, and must fit tightly against the
blade.
6. Install the bolt guard and then the blade
retaining bolt. Using the combination
spark plug wrench/screwdriver, tighten
the bolt firmly in a counter-clockwise
direction.
7. Remove the hex wrench.
Tighten the assembly
(blade not shown for clarity)
The C230 Brushcutter should
now be completely assembled.
Bolt Guard
Figure 21
Assembly
Blade C230/T230X (continued)
Output Shaft
Filling the Fuel Tank
IMPORTANT!
Mix only enough fuel for your immediate
needs! If fuel must be stored longer than
30 days and oil with fuel stabilizer
is not used, it should rst be treated with a
fuel stabilizer such as STA-BIL™.
Mixing Fuel
CAUTION!
This engine is designed to operate on
a 50:1 mixture consisting of unleaded
gasoline and 2-cycle mixing oil only.
Use of non-approved mixing oils can
lead to excessive carbon deposits.
CAUTION!
Some types of gasoline contain al-
cohol as an oxygenate. Oxygenated
gasoline may cause increased op-
erating temperatures. Under certain
conditions, alcohol-based gasoline
may also reduce the lubricating
qualities of some 2-cycle mixing oils.
Never use any type of gasoline
containing more than 10% alcohol
by volume! Generic oils and some
outboard oils may not be intended
for use in high-performance 2-cycle
type engines, and should never be
used in your Shindaiwa engine.
Use only fresh, clean unleaded gasoline
with a pump octane of 87 or higher.
Mix with 50:1 Shindaiwa Premium
2-cycle mixing oil or with an equivalent
high quality 2-cycle mixing oil.
Examples of 50:1 mixing quantities
1 gallon of gasoline to 2.6 oz. mixing oil.
5 liters of gasoline to 100 ml. mixing oil.
WARNING!
Minimize the Risk of Fire!
STOP engine before refueling.
ALWAYS allow the engine to cool
before refueling!
Wipe all spilled fuel and move the
engine at least 10 feet (3 meters)
from the fueling point and source
before restarting!
NEVER start or operate this
unit if there is a fuel leak.
1. Place the unit on a flat, level surface.
2. Clear any dirt or other debris from
around the fuel filler cap.
3. Remove the fuel cap, and fill the tank
with clean, fresh fuel.
4. Reinstall the fuel filler cap and tighten
firmly.
NEVER start or operate this
unit if the carburetor, fuel lines,
fuel tank and/or fuel tank cap are
damaged.
NEVER smoke or light any res near
the engine or fuel source!
NEVER place any ammable mate-
rial near the engine mufer!
NEVER operate the engine without
the mufer and spark arrester in
good working condition.
