TL-WR845N
300Mbps Wireless N Router
4. If you select Auto-Detect, the router will automatically detect the connection type your ISP
provides. Make sure the cable is securely plugged into the Internet port before detection. The
appropriate configuration page will be displayed when an active Internet service is
successfully detected by the router.

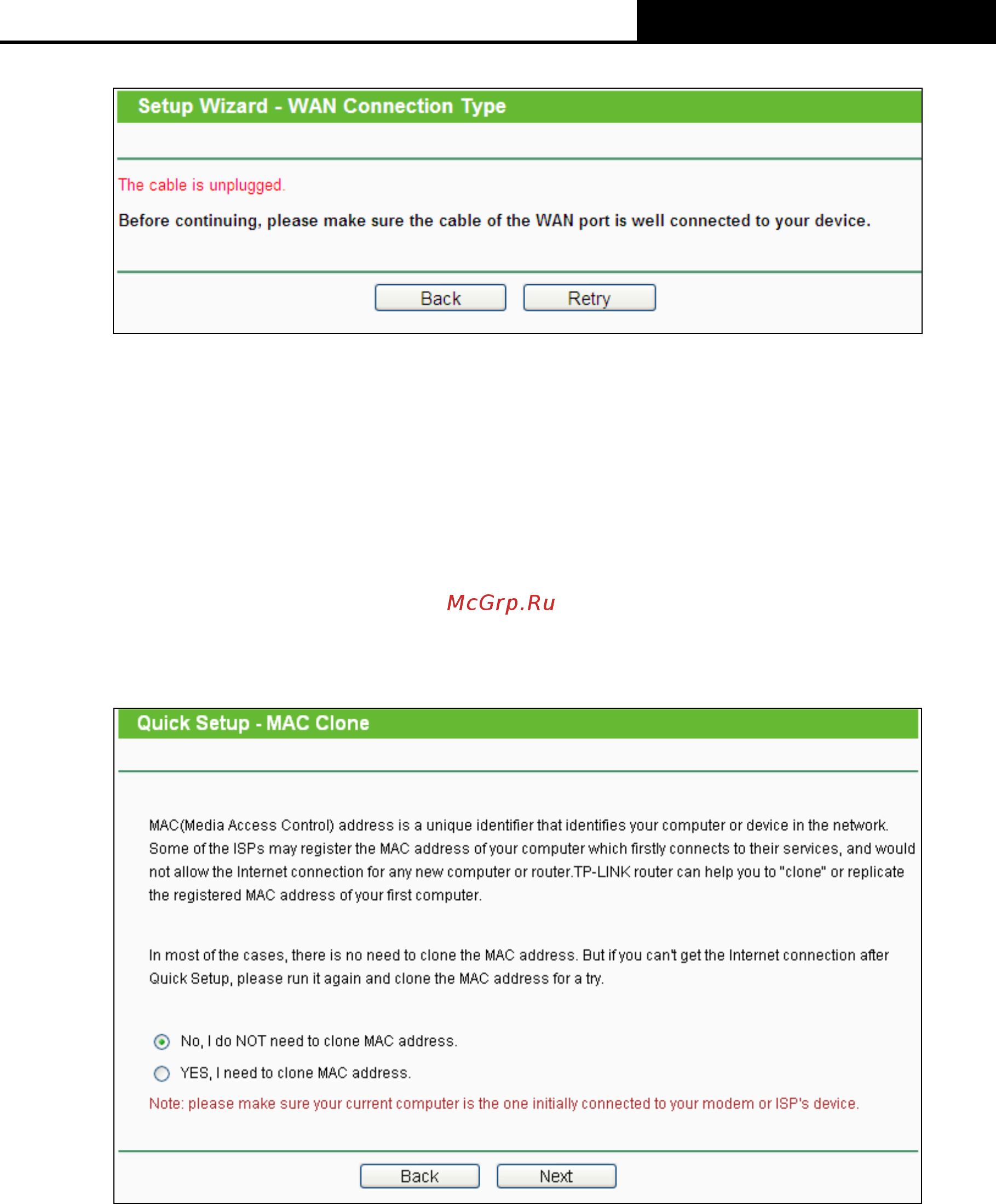

1） If the connection type is Dynamic IP, there will appear the MAC Clone page (as shown
in the figure below). In most cases, there is no need to clone the MAC address. You can
select “No, I do NOT need to clone MAC address” and then click Next. If it is
necessary in your case, please select “Yes, I need to clone MAC address” and then
click Next.
2） If the connection type is Static IP, the next screen will appear as shown in the figure
below.
-12-
