TL-WR845N
300Mbps Wireless N Router
Enter “Allow TP-LINK” in the Website Description field.
Enter “www.tp-link.com” in the Allowed Domain Name field.
Select “Schedule_1” you create just now from the Effective Time drop-down list.
In Status field, select Enable.
4. Click Save to complete the settings.

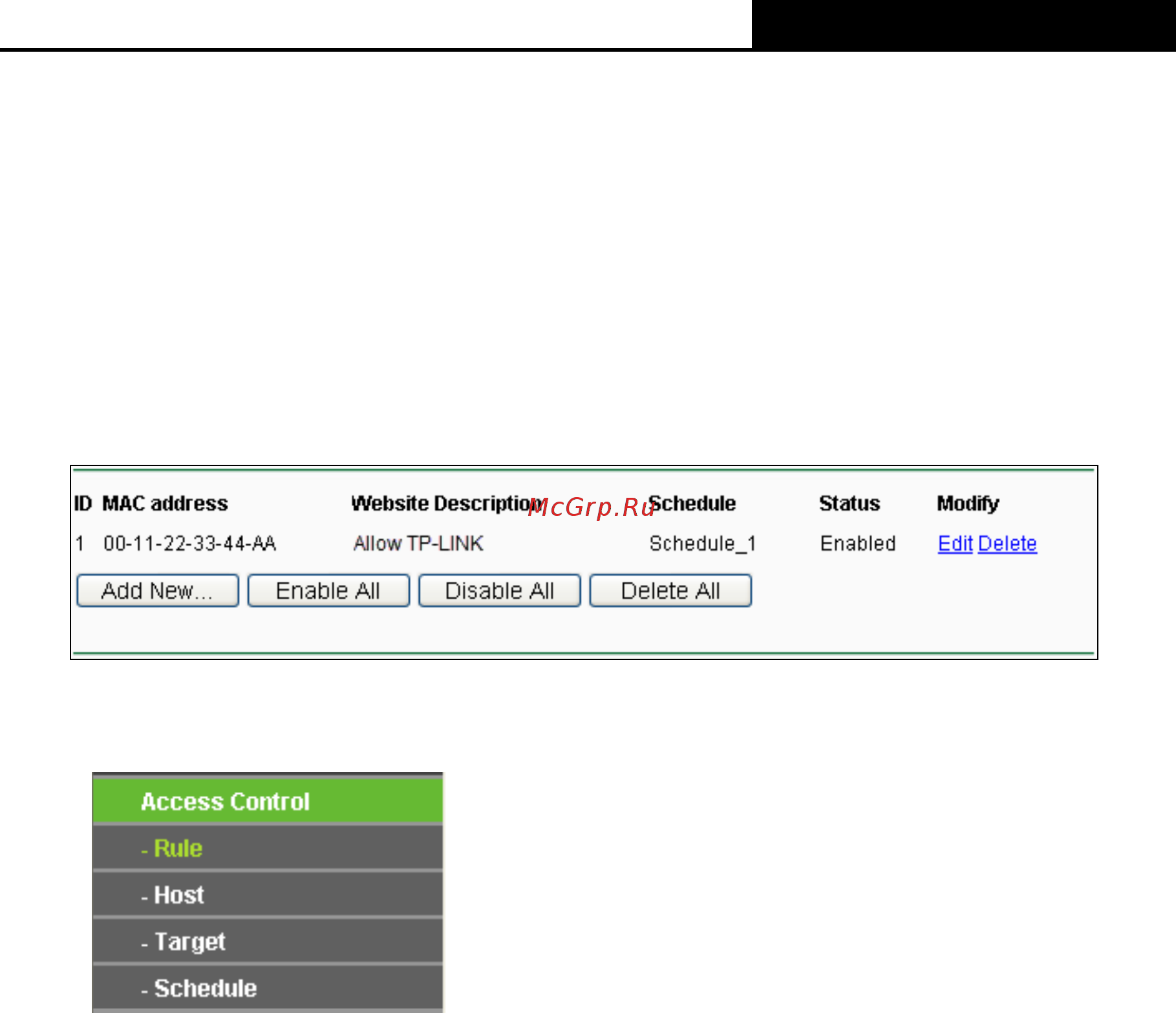

Then you will go back to the Parental Control Settings page and see the following list, as
shown in the figure below.
4.12 Access Control
There are four submenus under the Access Control menu: Rule, Host, Target and Schedule.
Click any of them, and you will be able to configure the corresponding function.
4.12.1 Rule
Choose menu “Access Control > Rule”, you can view and set Access Control rules in the screen
as shown in the figure below.
-60-
