TL-WR845N
300Mbps Wireless N Router

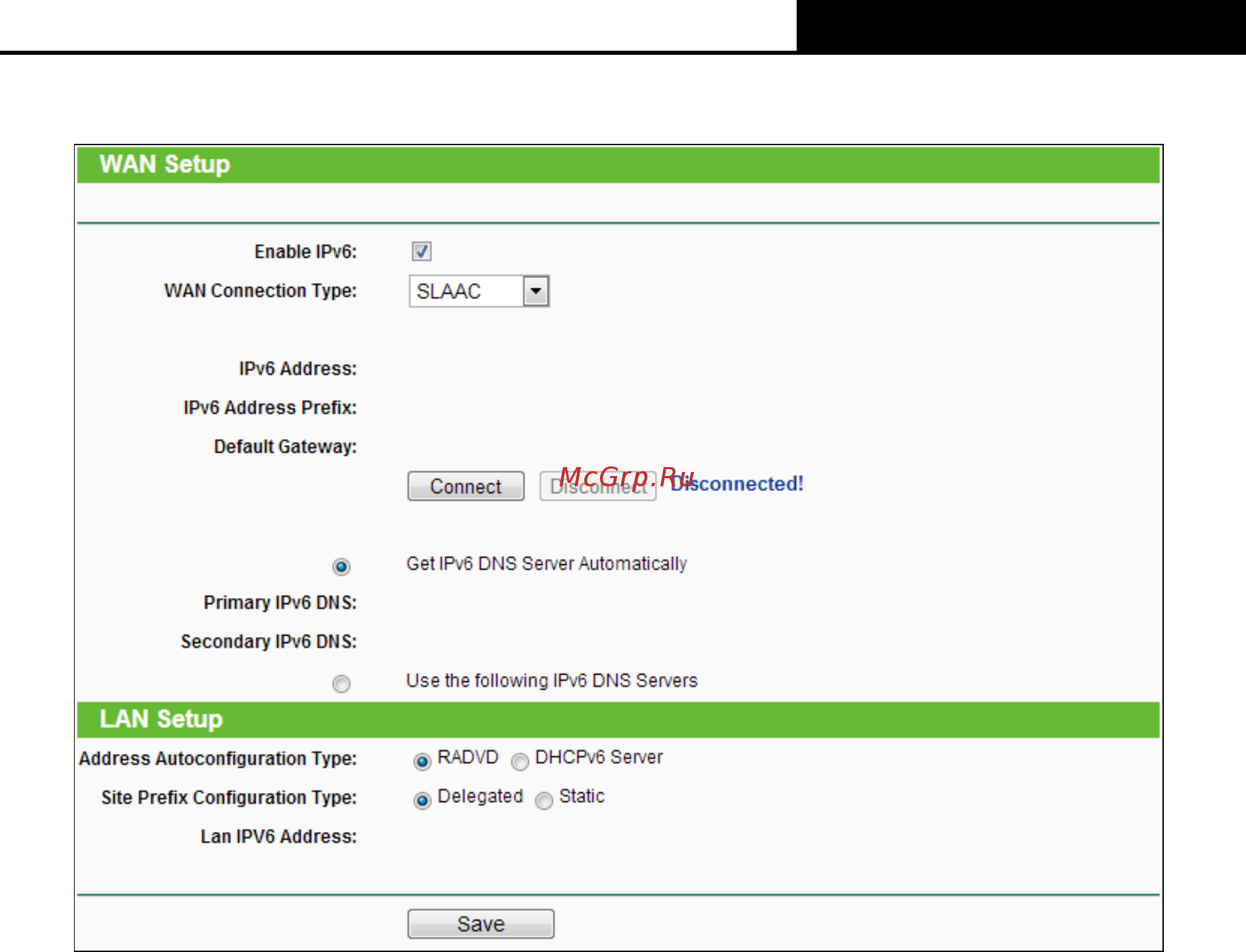

1) SLAAC
IPv6 Address - The IPv6 address assigned by your ISP dynamically.
IPv6 Address Prefix - Display the IPv6 Prefix Length in dotted-decimal notation provided by
your ISP.
Default Gateway - Display the default gateway in colon-hexadecimal notation provided by
your ISP.
Click the Connect button to connect immediately.
Click the Disconnect button to disconnect immediately.
If your ISP gives you one or two DNS IPv6 addresses, select Use the following IPv6 DNS
Servers and enter the Primary IPv6 DNS and Secondary IPv6 DNS into the correct fields.
Otherwise, leave the default selection Get IPv6 DNS Server Automatically, and the DNS
servers will be assigned from ISP dynamically.
Primary IPv6 DNS - Enter the DNS IPv6 address in dotted-decimal notation provided by your ISP.
Secondary IPv6 DNS - Enter another DNS IPv6 address in dotted-decimal notation provided
by your ISP.
Note:
If you get Address not found error when you access a Web site, it is likely that your DNS servers
are set up improperly. You should contact your ISP to get DNS server addresses.
-80-
