Airwell RoofT@ir 40 [8/68] Technical specifications

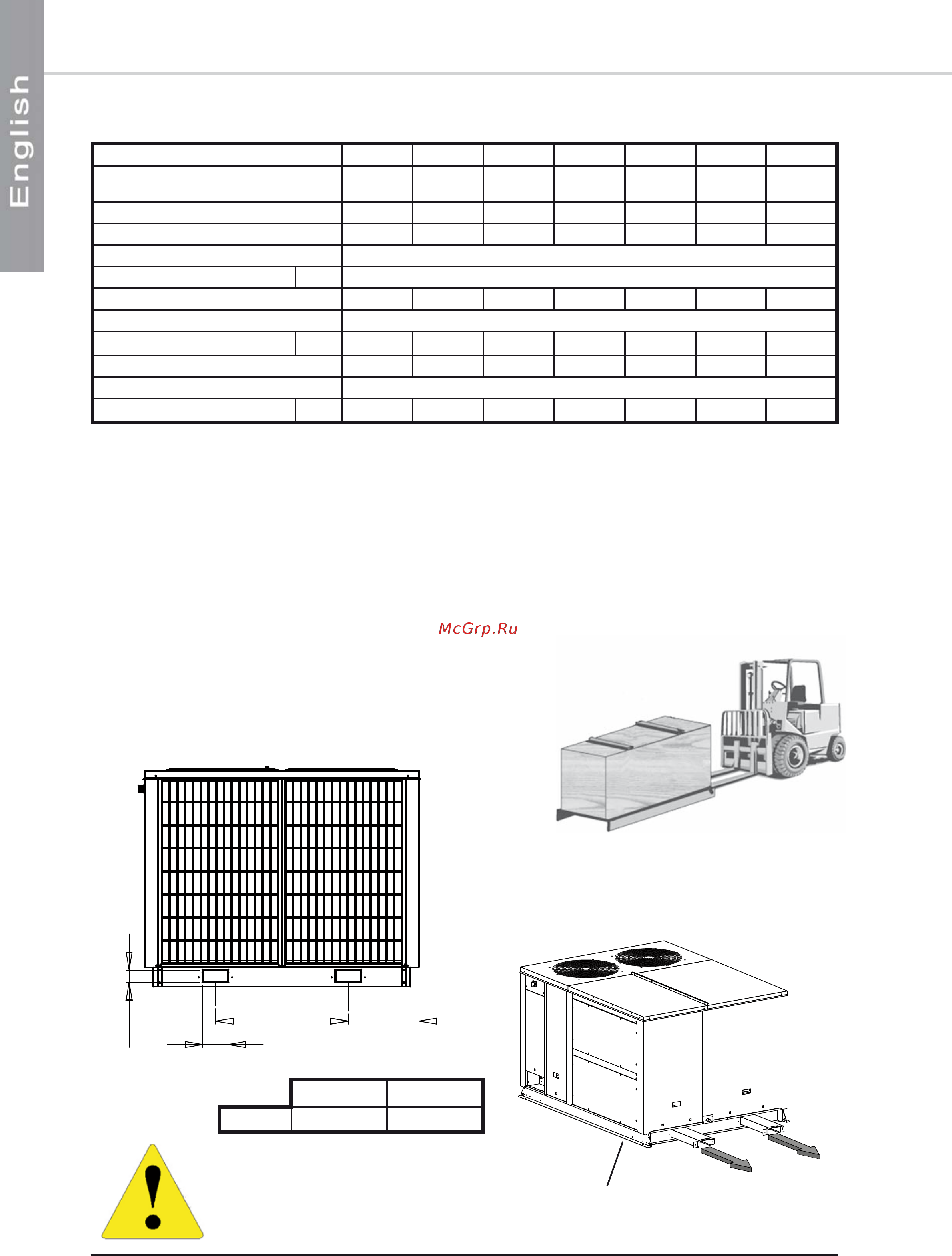

![Airwell RoofT@ir 60 [8/68] Technical specifications](/views2/1408311/page8/bg8.png)
6
DIMENSIONS
HANDLING
SEE APPENDIX
TECHNICAL SPECIFICATIONS
You can adjust the available static pressure and flow by adjusting the variable motor pulley fitted to the blower
(SEE AIR BALANCING).
Forks guiderails are supplied as standard with the machine irrespective
of the air configuration. They enable the machine to be moved without
damaging its base or casing.
In the
case of a downward air configuration, remember to
remove the forks guiderails before lifting the unit to install
it on the roof curb.
900
A
80,50
170
MINIMUM FORK LENGTH: 2M
FORKS GUIDERAILS
Models 40 50 60 70 80 100 110
Compressor type
Scroll
Tandem
Scroll
Tandem
Scroll Scroll Scroll Scroll Scroll
Compressor quantity 22222
22
Number of circuit 1122222
Refrigerant R410A
Charge of circuit kg SEE NAME PLATE
Number of blower 11111
11
Type Centrifugal
Nominal indoor airflow m
3
/h 7 650 9 200 11 500 12 500 16 500 18 650 20 000
Number of outdoor fans 22444
22
Type Helicoid
Nominal external total airflow m
3
/h 16 000 16 000 32 000 32 000 32 000 34 000 34 000
40-50 60-110
A 478 651
LIFTING WITH THE FORKS
GUIDERAILS OBLIGATORY
